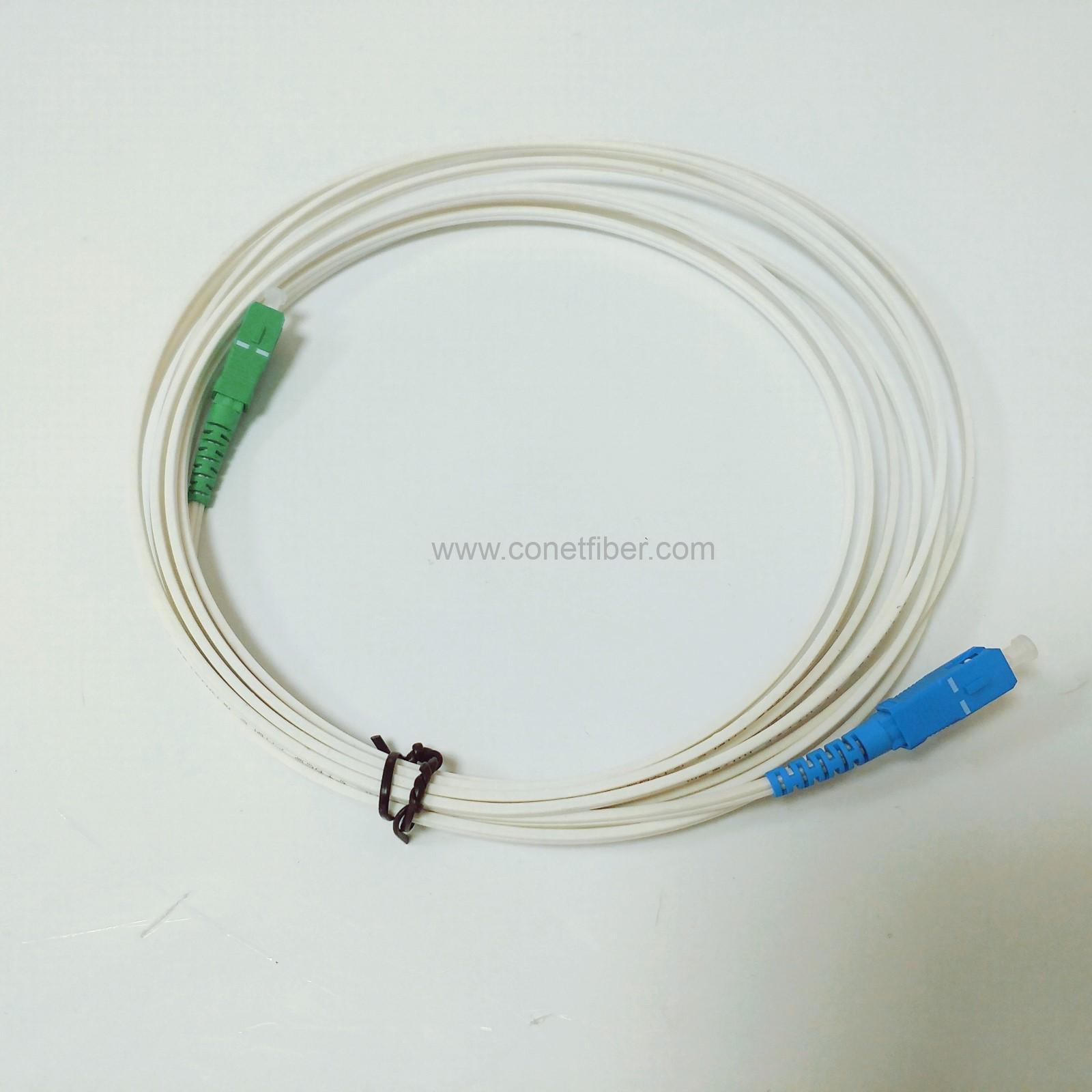

    • 2 cores non self-support G657A1 FRP LSZH flat drop cable
2 cores non self-support G657A1 FRP LSZH flat drop cable
Share:
  • Technology Specs
  • Drawings

Applications

-FTTH network for indoor and outdoor

-Local Area Network and Building Cabling Network

-Interconnect between instruments, terminal box and communication


Characteristics

-Special low-bend-sensitivity fiber provides high bandwidth and excellent communication transmission property

-Available FTTH Drop cable diameters:2.0*3.0mm

-Two parallel FRP strength members ensure good performance of crush resistance to protect the fiber

-Simple structure, light weight and high practicability

-Novel flute design,easily strip and splice, simplify the installation and maintenance

-Low smoke,zero halogen and flame retardant sheath


Structural parameters

Cable Type

Fiber count

Cable size (mm)

Cable weight kg/km

Tensile strength
      Long/Short Trem N

Bending Radius
      Static/Dynamic mm

Crush Resistance
      Long/Short Trem N/100mm

GJXFH-2Xn

2

(2.0±0.1)x(3.0±0.1)

8.5

40/80

15/30

500/1000

Transport/Storage/Operating Temperature:-20℃-+60℃,Installation Temperature:-5℃-+50℃


Optical properties


G.652

G.657

Attenuation(+20℃)

@1310mm

≦0.45dB/km

≦0.45dB/km

@1550mm

≦0.30dB/km

≦0.30dB/km

Cable Cut-off Wave length

≦1260nm

≦1260nm
