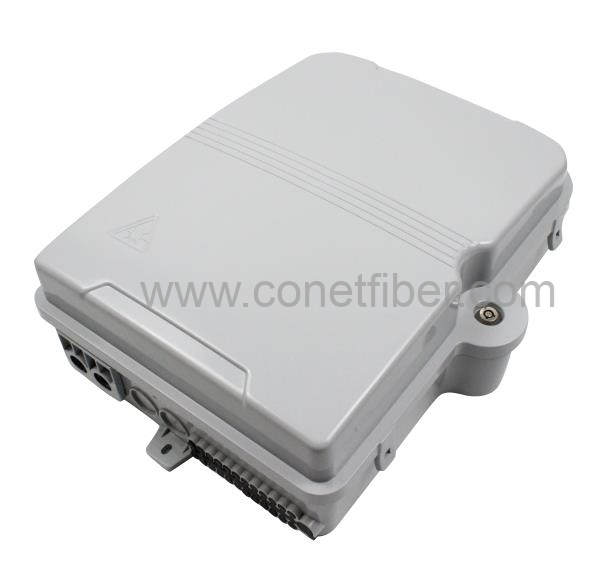

CNT-24A
This distribution box terminates up to 2 fiber optic cables, offers spaces for splitters and up to 24 fusions, allocates 24 SC adapters and working under outdoor environments. It is a perfect cost-effective solution-provider in the FTTx networks.
Share:
  • Technology Specs

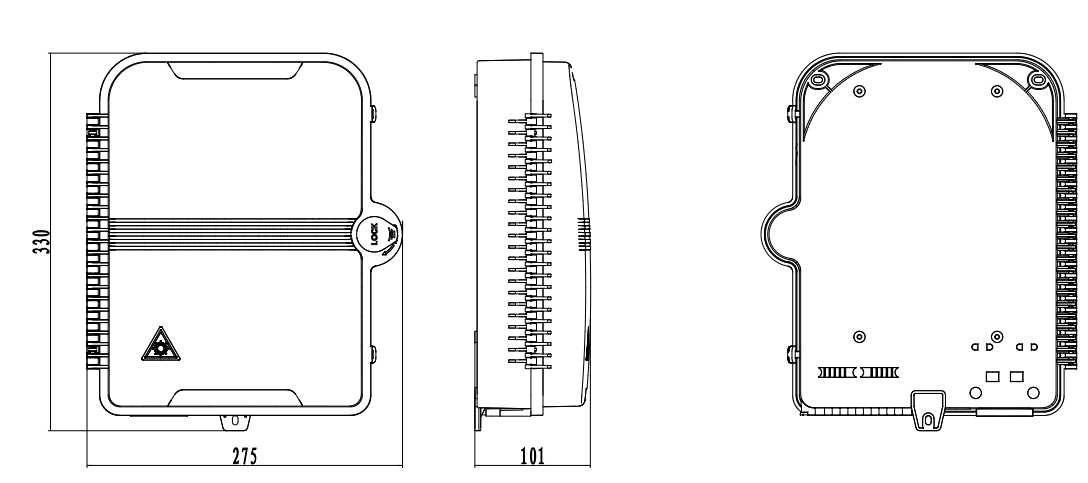

  • Drawings

Model No.

CNT-24A

Dimensions (H*W*D)

330mm*275mm*101mm

Color

Gray

Weight

1.25kgs

Adapter Type

SC Simplex/LC Duplex

Adapter Capacity

24pcs

Splitter Type

1*8 /1*16 mini type splitter

Number of Cable Entrance(s) and Exit(s)

2:24

Cable inlet caliber16mm
Optional Accessories Adapters, Pigtails, Heat Shrink Tubes, Micro Splitter
Working Temperature -40°C~+65°C
