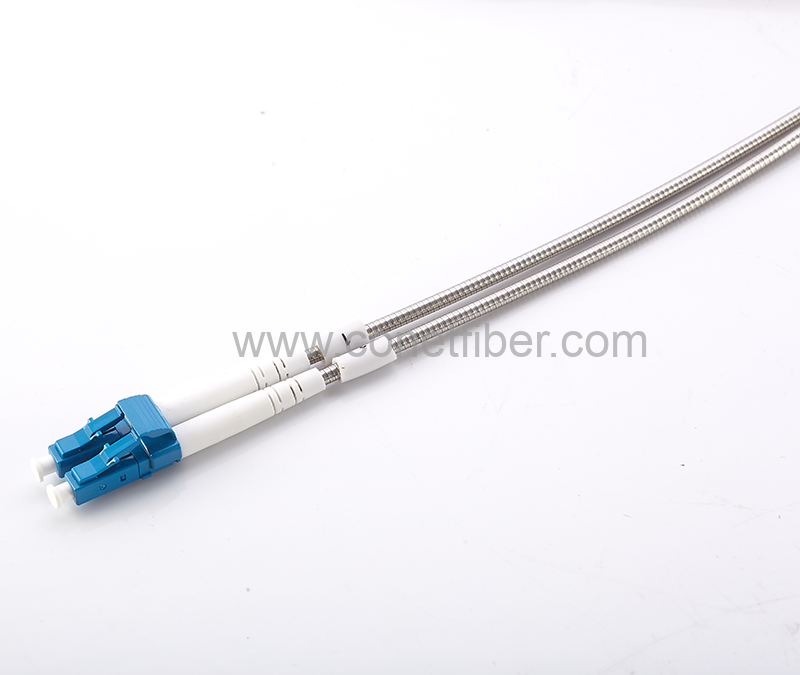

Type | SM-UPC | SM-APC | MM-UPC | |||
Insertion Loss: | Typical | MAX | Typical | MAX | Typical | MAX |
≦0.15dB | ≦0.3 | ≦0.15dB | ≦0.3dB | ≦0.15dB | ≦0.3dB | |
Reture Loss | ≥50dB | ≥60dB | ≥30dB | |||
Durability | 500 mating cycles | |||||
Working Temperature |
-40 to +85℃ |
Item | UPC Polishing | APC Polishing |
Radius of Curv (mm) SC | 10~25 | 5~12 |
Radius of Curv (mm) LC | 7~25 | 5~12 |
Fiber Height (nm) | -±100 | ±100 |
Apwex Offset (um) | ≤50 | ≤50 |
APC angle(°) | / | 8°±0.2° |
Key error(°) | / | 0.2°max |
Specification
Fiber Count | Cable Dimension | Cable Weight KG/KM | Tensile N | Crush N/100mm | Min.Bend Radius mm | Range of Temperature | |||
Long term | Shor Term | Long term | Shor Term | Dynamic | Static | ||||
2 | 5.0mm | 30 | 400 | 800 | 1000 | 2000 | 20D | 10D | -20~+70 |
2 | 5.0mm Armoured | 45 | 400 | 800 | 2000 | 3000 | 20D | 10D | -20~+70 |
2 | 7.0mm | 50 | 600 | 1000 | 1000 | 2000 | 20D | 10D | -20~+70 |
2 | 7.0mm Armoured | 68 | 600 | 1000 | 2000 | 3000 | 20D | 10D | -20~+70 |
