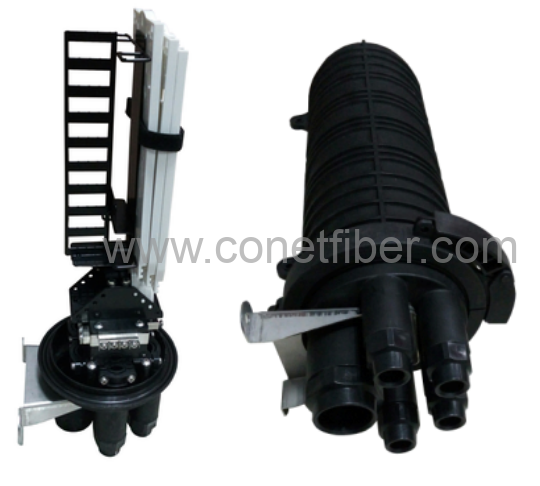

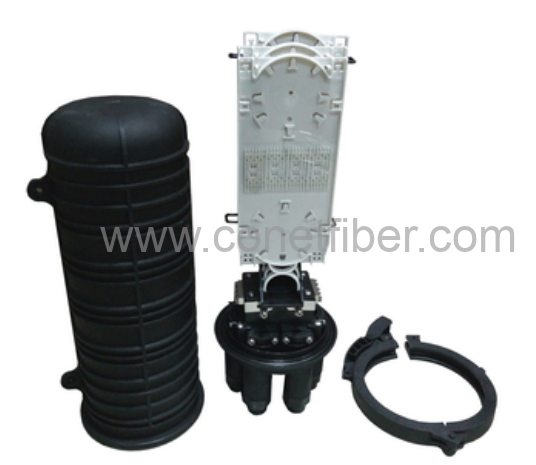

CV014 Closure
1) Adapter: can be loaded with 36pcs SC simple adapters or 36pcs LC duplex(SC shape) adapters
2) Splitter: can loaded 1 cassette PLC splitter 1*8,1*16 or1*32 splitter
3) Splice tray: 3PCS, each 24cores
4) Cable port: 5cable ports, 4pcs(φ18mm),1pcs (φ42mm,cable no cutting). all cable port is mechanical sealing
5) with different size rubber gasket for simplex, FTTH drop cable entry/exit
6)Waterproof: IP68
7)Wall-mounting, aerial hanger and pole-mount kit optional
8) Material: high impact resistance PP materials with UV
Share:
  • Technology Specs

Specification:

Model

Material

Dimension

Max. capacity

Splice tray

CV014

PP

Φ182.5 × 521.1mm

72 fibers

3pcs, each 24 fibers
