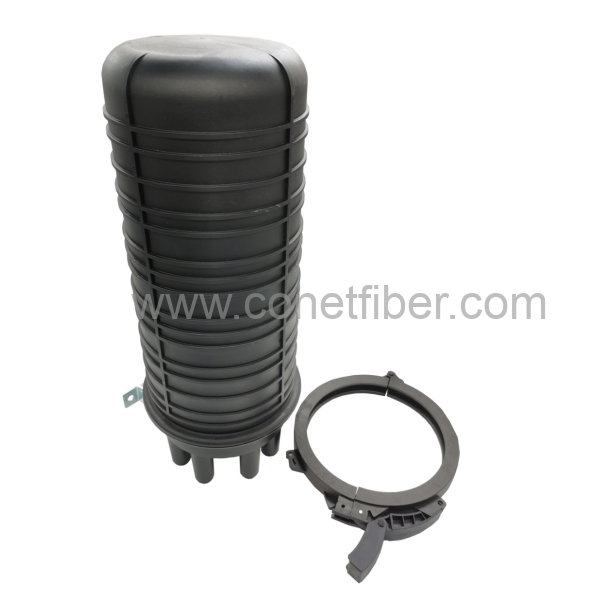

CV016

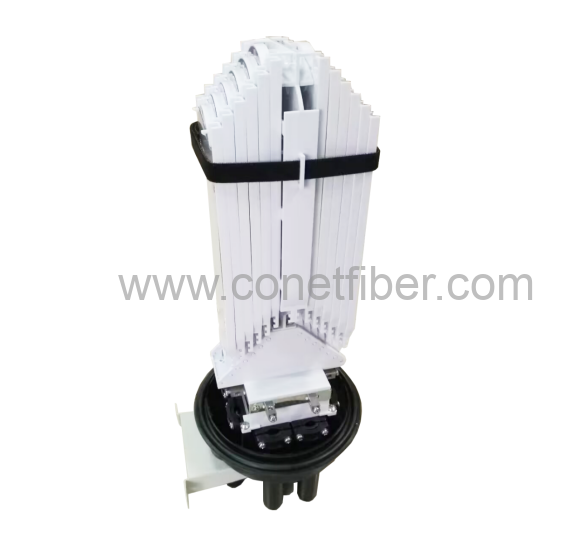

1) Splice tray: Max. 12pcs, each 24cores
2) Cable port: 6pcs round port φ19.9mm, 1pc oval port 38x70mm for supporting cable entry without cutting. All cable ports are heat shrink sealing.
3) Waterproof: IP68

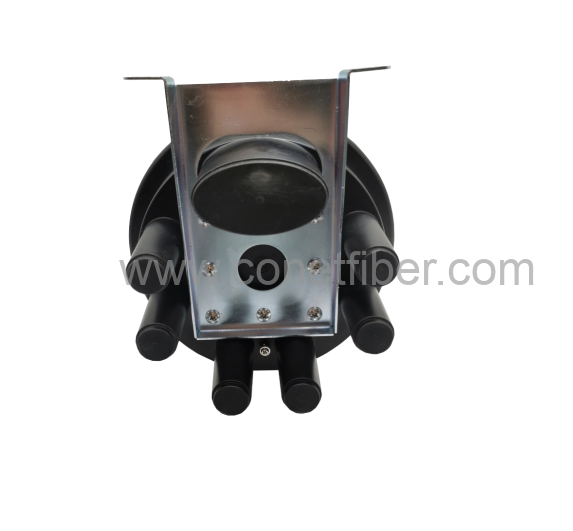

4) Wall-mounting, aerial hanger and pole holding
5) Material: high impact resistance PP materials with UV
Share:
  • Technology Specs

Model

Splice tray

Fiber core

Dimension(mm)

Net weight(Kg

CV016

12 trays, each 24 fibers

288 CORES

Φ267 × 527.5

3.31
