    • CV018
    • CV018
CV018
1pc splice tray, max. 24 fibers
Cable port: 2pcs round port φ15mm, 2pcs round port φ13mm, 8pcs 2*3mm drop cable ports.
The 2 cable ports are heat shrink sealing.
Cable entry without cutting.
Outdoor aerial hanger and pole holding.
Material: high impact resistance PP materials with UV
Can load 1pc PLC 1:8 splitter and 9pcs SC simplex adapters
Share:
  • Technology Specs
  • Instructions Manual
  • Assembly
  • Drawings

Model

Max. capacity

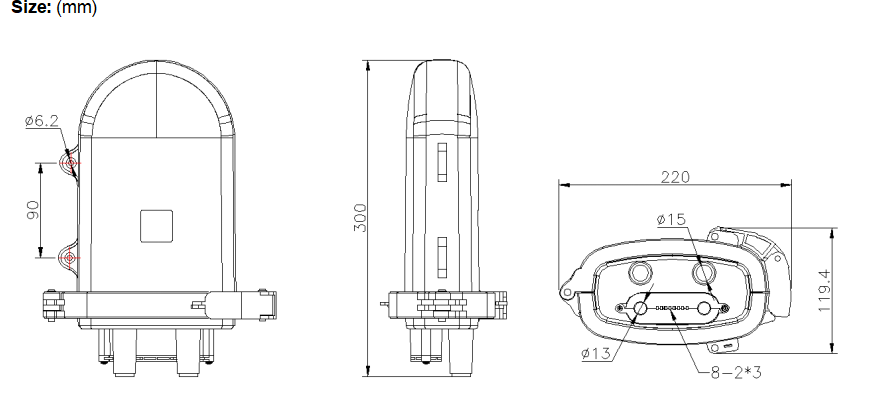

Dimension

Materia

Splice tray

CV018

24 fibers

220x300x119.4

PP1pc 24 fibers
