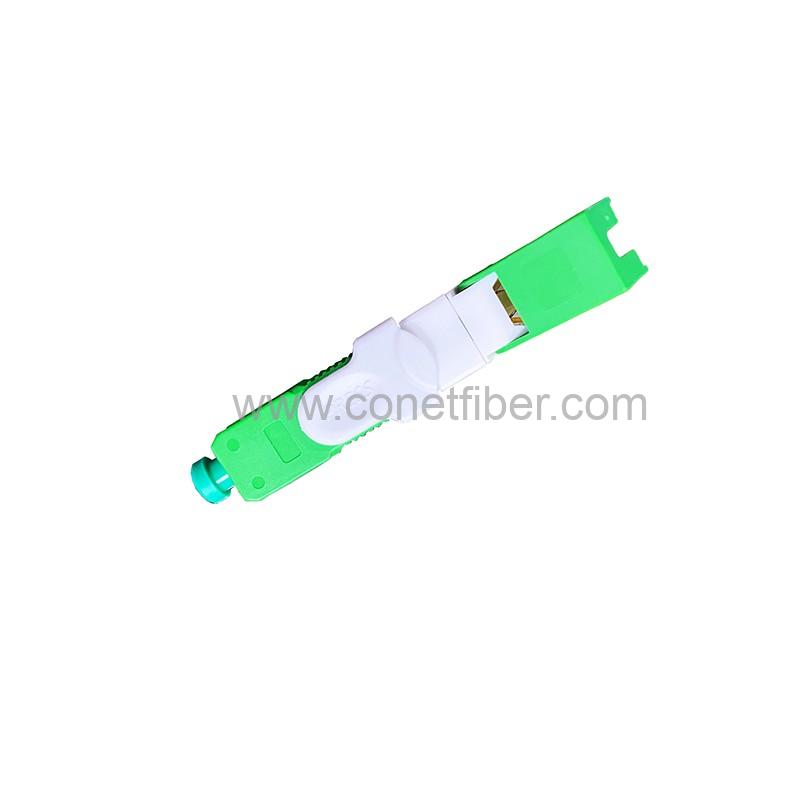

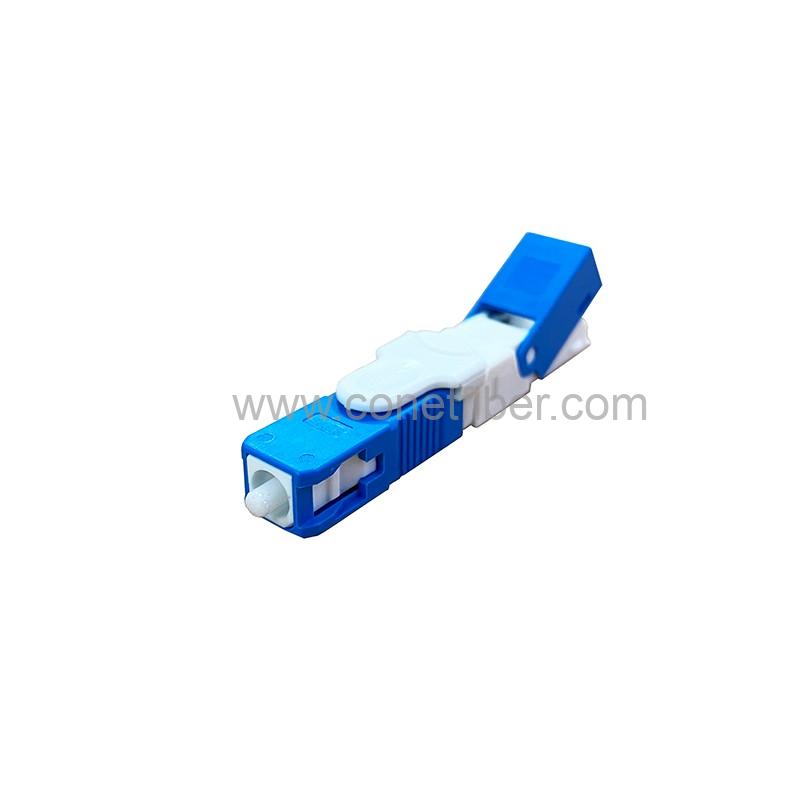

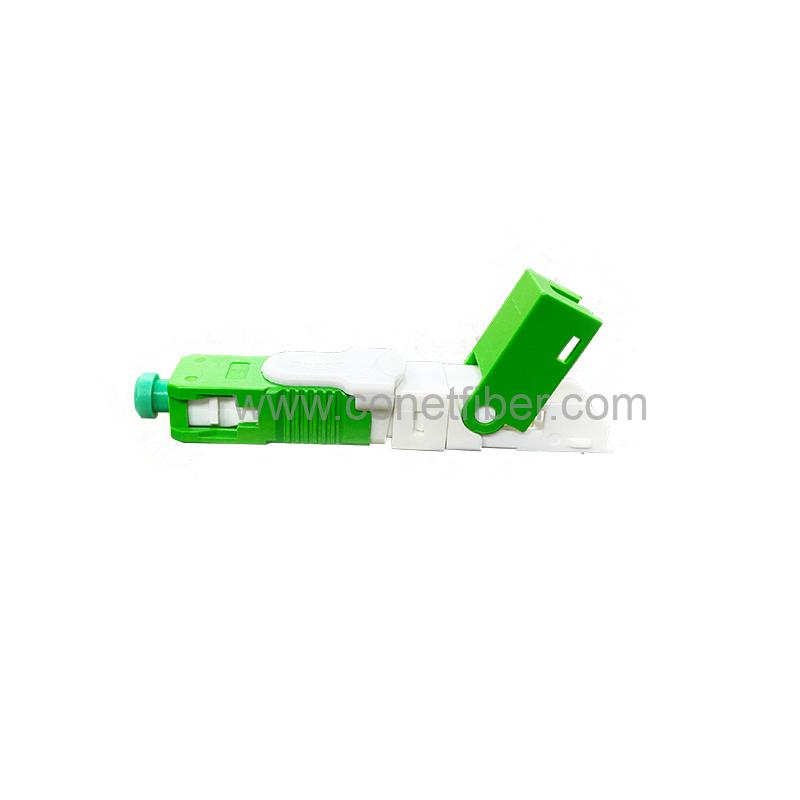

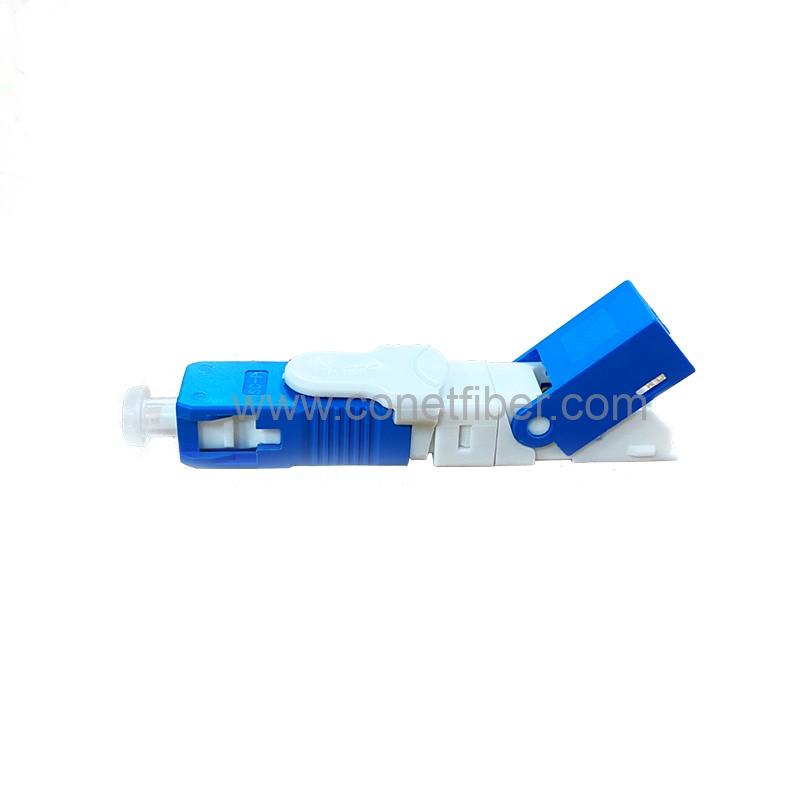

ESC250D-S 25mm Cutting length
Fiber Optic Fast Connector designed for FTTX is a new generation of fiber connector used in assembly.
It can provide Open flow and Pre-cast type of products, whose optical and mechanical specification meets the standard optical fiber connector.
Share:
  • Technology Specs
  • Instructions Manual
  • Package

Item

Unit

Parameters

Insertion loss

dB

≤ 0.3(1310nm & 1550nm)

Return loss

dB

APC≥55,UPC≥50

Bare fiber strength

N

>5

Clad strength

N

>10

Tension

N

>50

Tensile strength (20 N)

dB

IL ≤ 0.2& RL ≤ 5

Mechanical

dB

IL ≤ 0.2& RL ≤ 5

durability(500times)

Operating Temperature

﹣5~70

Storage Temperature

﹣40 ~ +85


Inner carton quantity/pcs

Outer  carton quantity/pcs

Outer carton size(cm)

Gross Weight(kgs)

100

1000

37.5x37.5x29.5

7.1
