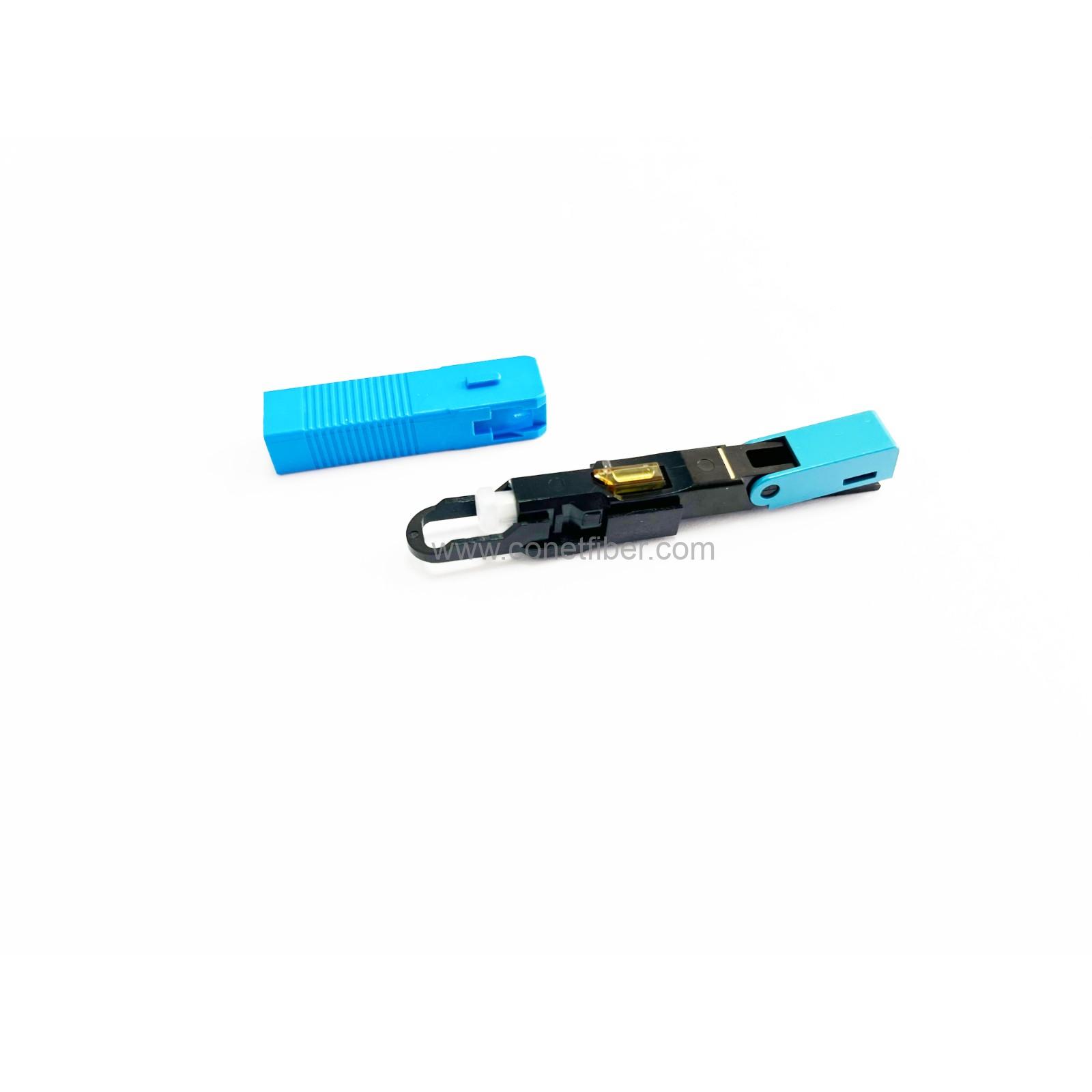

MESC250P-APC/UPC Fast Connector
The Mechanical Field-Mountable Fiber Optic Connector (FMC) is designed to simple the connection without fusion splicing machine. This connector is quick assembly which requires only
normal fiber preparation tools: cable stripping tool and fiber cleaver. The connector adopts Fiber Pre-Embeded Tech with superior ceramic ferrule and aluminum alloy V-groove.. Also,transparent,design of the side cover which allows visual inspection.
Share:
  • Technology Specs
  • Instructions Manual

Item

Unit

Parameters

Insertion loss

dB

≤ 0.5 dB, Classic Value: 0.3dB(1310nm &

1550nm)

Return loss

dB

≤ -50dB for UPC, ≤ -55dB for APC

Success Rate

%

>98%

Tighten Strength of Naked Fiber

N

>2

Tensile Strength

N

>30

Temperature

-40~+85℃

Cable Scope

mm

3.0 x 2.0 mm Bow-type Drop Cable

Coating Diameter μm

250μm

Fiber Diameter

μm

125μm ( 652 & 657 )
