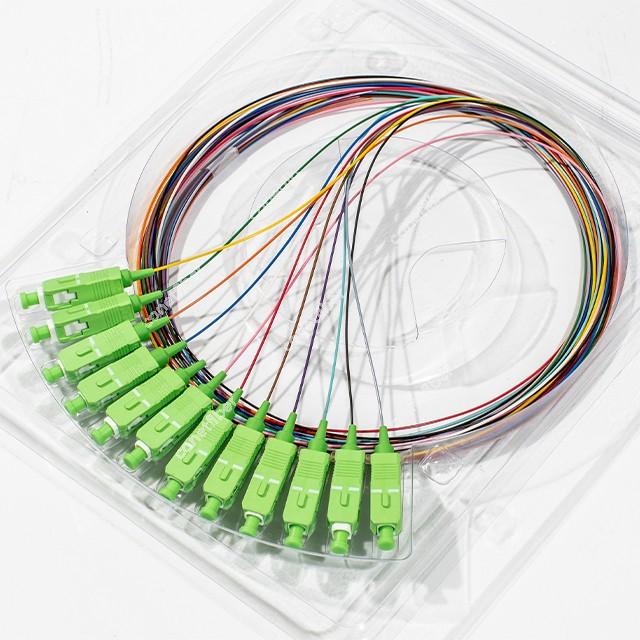

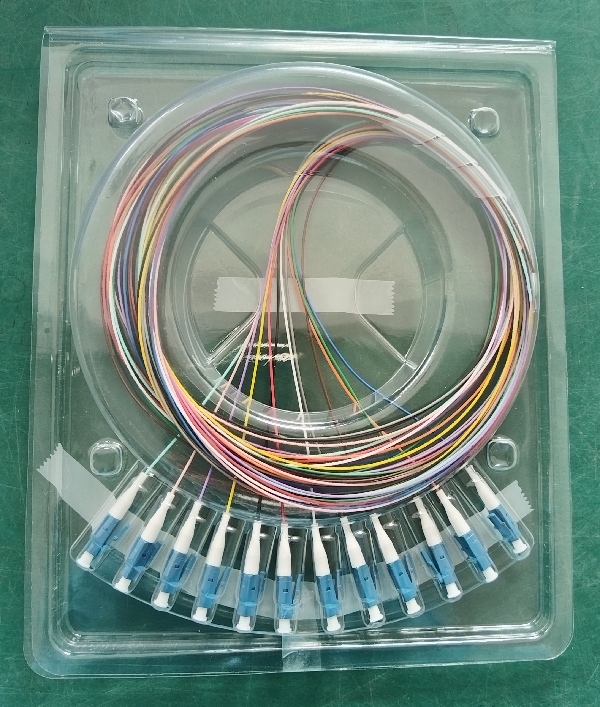

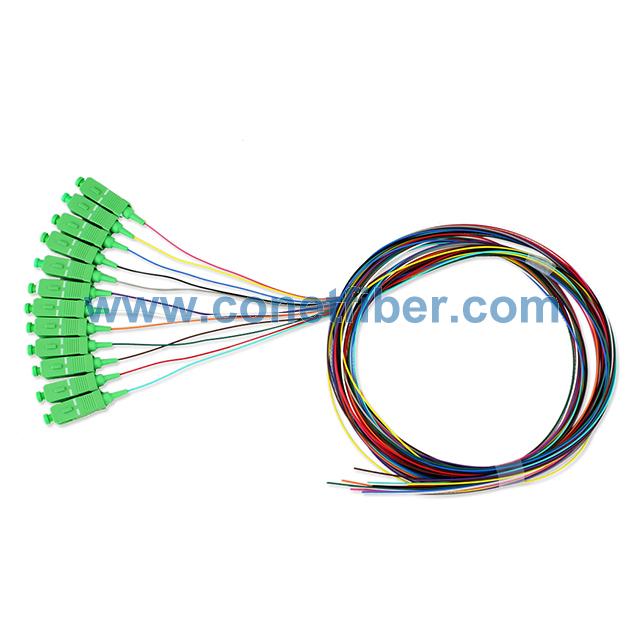

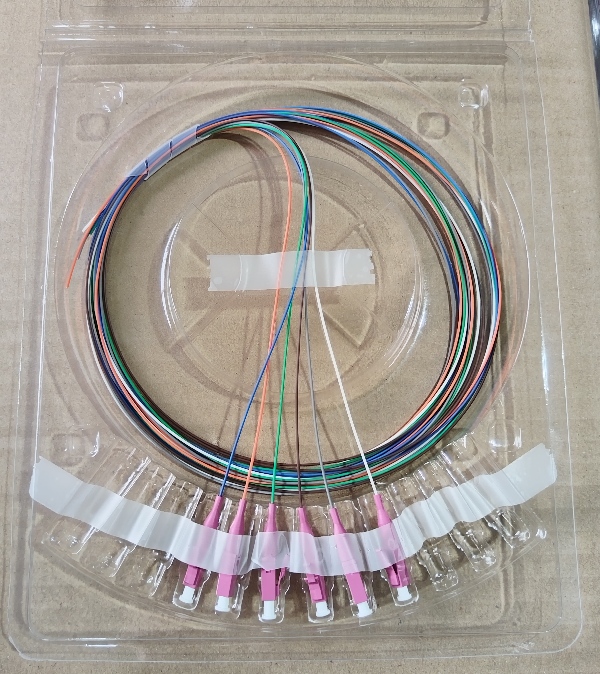

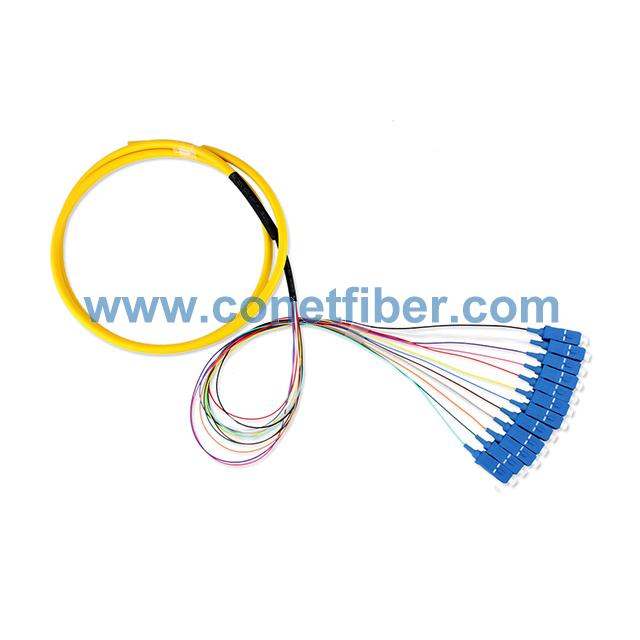

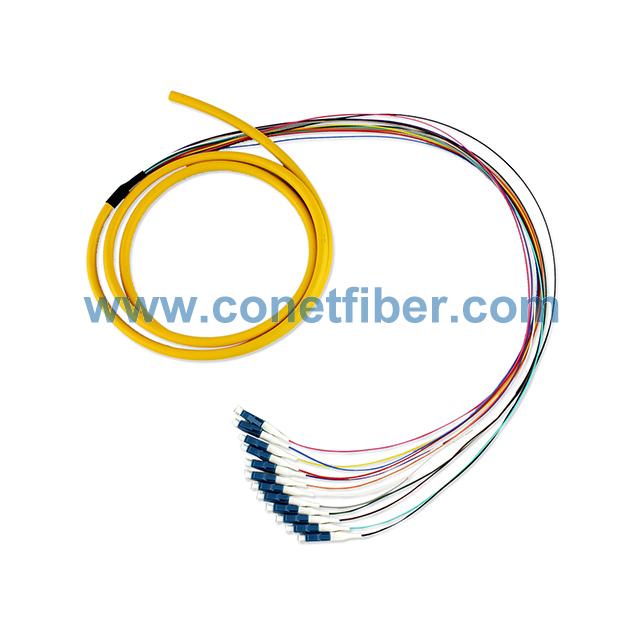

12 core colorful pigtail can be classified to FC, SC, LC, MU and ST. The color of pigtail is Blue, Orange, Green, Brown, Gray, White, Red, Black, Yellow, Purple, Pink, Aqua. With the High-quality ceramic ferrules, it has good conformity and low Insertion Loss. And it is widely used in the Telecommunication Networks, Data Transmission, Test Equipment and the LAN of CATV etc.
Description
12-core colorful pigtail can be classified to FC, SC, LC, MU and ST. The color of pigtail is Blue, Orange, Green, Brown, Gray, White, Red, Black, Yellow, Purple, Pink, Aqua. With the High-quality ceramic ferrules, it has good conformity and low Insertion Loss. And it is widely used in the Telecommunication Networks, Data Transmission, Test Equipment and the LAN of CATV etc.
Features
Low insertion loss and high return loss;
Good repeatability & interchangeability;
PC, UPC, APC polishing; FC, SC, ST, LC, MU connector;
Suitable for high-speed, high-capacity optical fiber transmission system;
Provide single mode/ multimode patch cord and pigtails;
Fiber diameter: Φ0.9mm, Φ2.0mm, Φ3.0mm;
Length/Type: according to customers’ demands
Application
Optical fiber communications system;
Optical fiber access networks;
Optical fiber CATV;
Optical fiber test equipments;
Optical fiber data communication;
Technical parameters
| No. | Item | Unit | Single Mode | Multi Mode | ||
| 1 | Insertion loss | dB | ≤0.3 | ≤0.3 | ||
| 2 | Return loss | dB | PC | UPC | APC | / |
| ≥45 | ≥50 | ≥55 | ≥35 | |||
| 3 | Repeatability | dB | 0.1 | |||
| 4 | Working Times | Times | ≥1000 | |||
| 5 | Operating Temperature | ℃ | -40~85 | |||
| 6 | Optical Cable Diameter | mm | Ф0.9, Ф2.0, Ф3.0 | |||
3D Specification

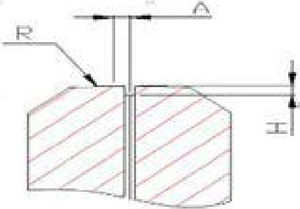

| Item | UPC Polishing | APC Polishing | Schematic Diagram | ||
| Ferrule Diameter (mm) | 2.5 | 1.25 | 2.5 | 1.25 |  |
| Radius of Curv (mm) | 10~25 | 7~25 | 5~12 | ||
| Fiber Height (nm) | -125~50 | ±100 | |||
| Apwex Offset (um) | ≤50 | ≤50 | |||
