*Reliable gasket sealing
*Easy installation with no special tool required
*Re-enterable with no re-entry kit needed
*High compressive strength
| Model No. | 305 |

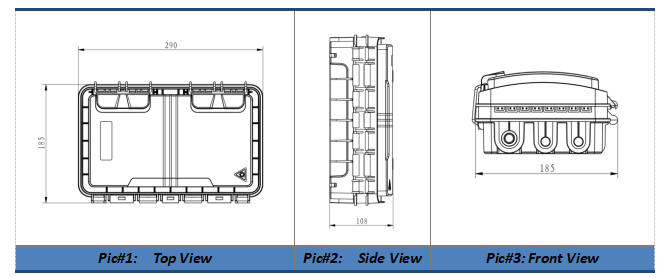

| Dimension | 290x190x110mm |
| Material | Modified PP |
| Seal Material | Silicone Rubber |
| Splitter Tray | 2pcs 1x8 Splitter Cassette |
| 1pcs 1x16 Splitter Cassette | |
| Max capacity | 24 cores |
| Cable Ports | 6 for main cable |
| Suitable Cable Dia. Allowed | Main Cable: 2xΦ18mm, 4xΦ10mm |
| Drop Cable: 2.0x3.0mm:up to 16pcs | |
| Installation Way | Aerial |
| Temperature | -40℃~+60℃ |
| Humidity | ≤95% (at 40℃) |
| Air Pressure | 70kPa ~106kPa |
