-High-Density Design: Multiple fibers (up to 12 per ribbon) arranged side by side, enabling compact and space-saving cabling.
-Efficient Mass Fusion Splicing: Allows splicing of 12 fibers at once, reducing installation time and labor costs.
-Reliable Performance: Low insertion loss and excellent optical transmission for backbone and data center networks.
Connector Specification

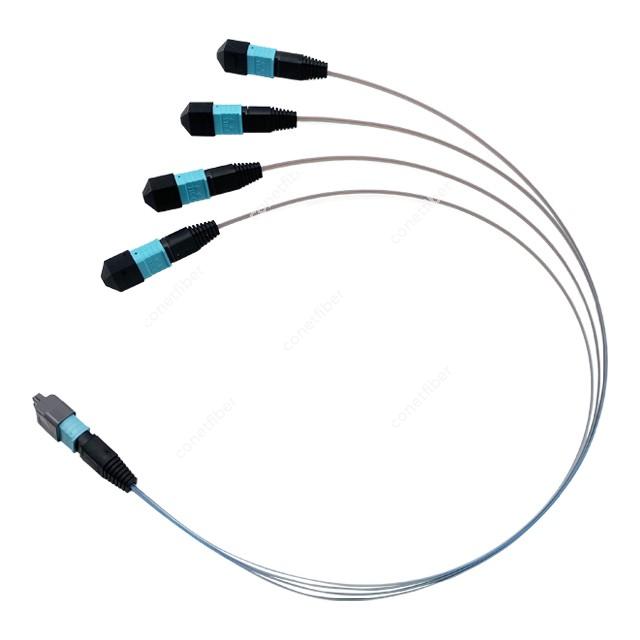

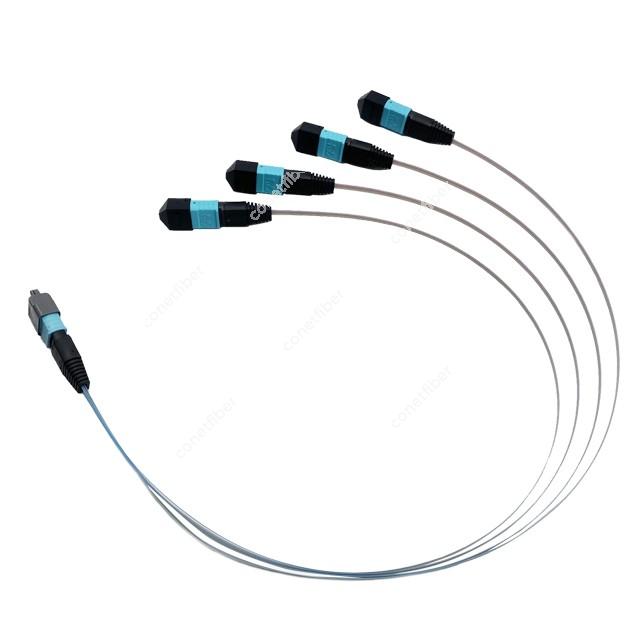

| Parameter | MPO/MTP® Trunk Patch Cord | |
|---|---|---|
| Connector Type | MTP®, MPO | |
| Connector Compliance | IEC 61754-7,TIA 604-5,ROHS | |
| Fiber count | 48,64,72,96 | |
| Polarity Type | Type A, Type B, Type C | |
| Insertion Loss | Low Loss:≤ 0.35 dB | Standard Loss:≤ 0.7 dB |
| Return Loss | ≥50dB | |
| Operating Temperature | -10'C to +70°C | |
| Durability | <0.1 dB typical change for > 500 matings | |
Cable Specification
| Cable Type | OS2, OM3, OM4, OM5 |
|---|---|
| Cable Diameter | 0.9mm |
| Cable Color | Yellow, Aqua, Violet, Lime Green |
| CPR | Dca, s2, d0, a1 |
End-face Control Parameters
| Geometry inspection | IEC 61755-3-31 |
|---|---|
| Visual inspection | IEC 61300-3-35 |
| Side A | Side B | |||||||||
| Brand | Fiber Count | Gender | Insertion Loss | Polarity Type | Fiber Count | Qty. | Cable Type | Cable Diameter | Color | Length |
| MTP® | 48 | Male | Standard Loss | Type A | 12 | 3 | G657A2 | 3.0mm | Yellow | |
| MPO | 72 | Female | Low Loss | Type B | 24 | 4 | OM3-150 | 4.8mm | Aqua | |
| 96 | Type C | 6 | OM3-300 | Violet | ||||||
| 8 | OM4 | |||||||||
