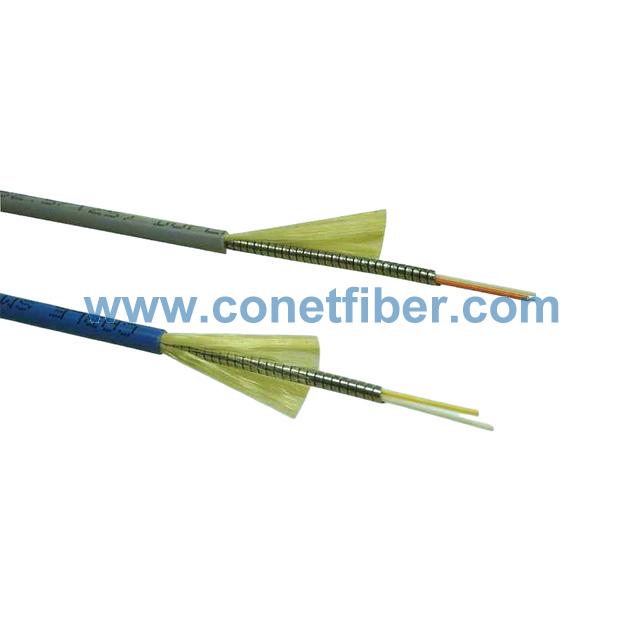

-Flexible stainless steel tube to protect optical fibers from damage
-Good performance of torsion, tensile strength, pressure, and anti-rodent

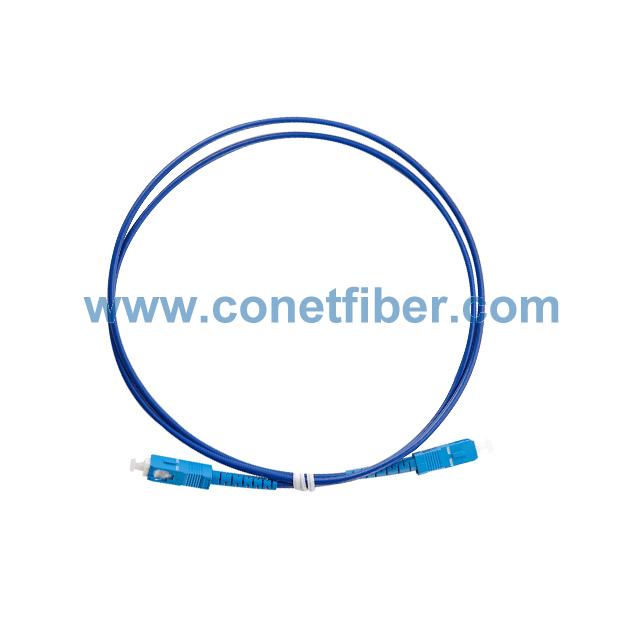

-Various connectors are available complying with international standard, such as FC/SC/ST/MU/LC, etc
Type | SM | MM | ||
Characteristics | UPC | APC | UPC | PC |
Insertion loss(dB) | ≤0.3dB | ≤0.3dB | ≤0.3dB | 0.3dB |
Return loss (dB) | ≥50dB | ≥60dB | ≥50dB | ≥35dB |
Attenuation(Maximum) | 0.4dB@1310nm 0.3dB@1550nm | 0.4dB@1310nm 0.3dB@1550nm | 3.0dB@850nm 1.2dB@1300nm | 3.0dB@850nm 1.2dB@1300nm |
Attenuation(dB) | SM:1310 nm≤0.35dB/km;1550 nm≤0.25dB/km MM:850 nm≤3.0dB/km;1300 nm≤1.0dB/km | |||
Durability(dB) | ≥500/Matings | |||
Operating Temperature(dB) | -40℃~ +85℃ | |||
Tensile Strength | Long Term 100N Short Term 200N | |||
Crush Resistance | Long Term 3,000N Short Term 5,000N | |||
Bending Radius | Dynamic 20D Static 10D | |||

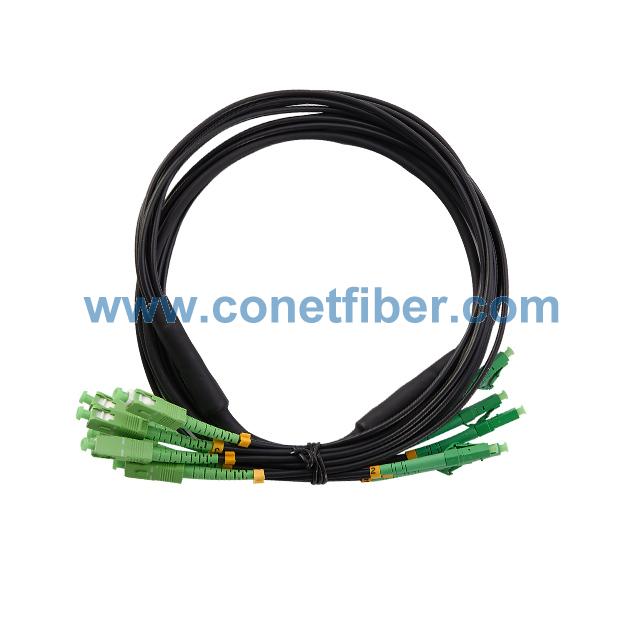

Item | Product Description | Main cable diameter | Weight kg/km | SUS steel braid | TPU Jacket | PE Jacket |
1 | Singer Fiber | 2.0mm | 18 | Available | Available | Available |
2 | Singer Fiber | 3.0mm | 18 | |||
3 | 2 Core | 3.0-3.3mm | 18-22 | |||
4 | 4 core(Bare Fiber Inside) | 4.0mm | 18-30 | |||
5 | 4 core (0.6 Tight Buffer) | 4.0mm | 30 | |||
6 | 6 core(Bare Fiber Inside) | 4.0mm | 30 | |||
7 | 6 core (0.6 Tight Buffer) | 5.0mm | 38 | |||
8 | 8 core(Bare Fiber Inside) | 4.0mm | 30 | |||
9 | 8 core (0.6 Tight Buffer) | 5.0mm | 38 | |||
10 | 12 core (Bare Fiber Inside) | 4.0mm | 30 | |||
11 | 12 core (0.6 Tight Buffer) | 6.0mm | 50 |
