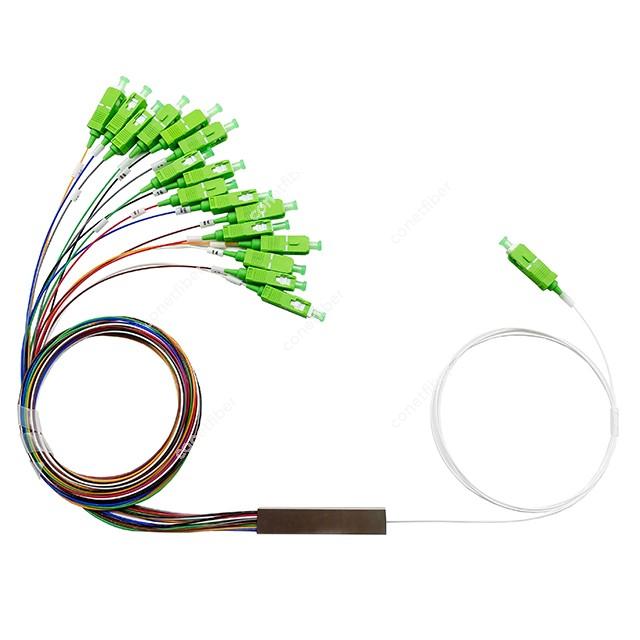

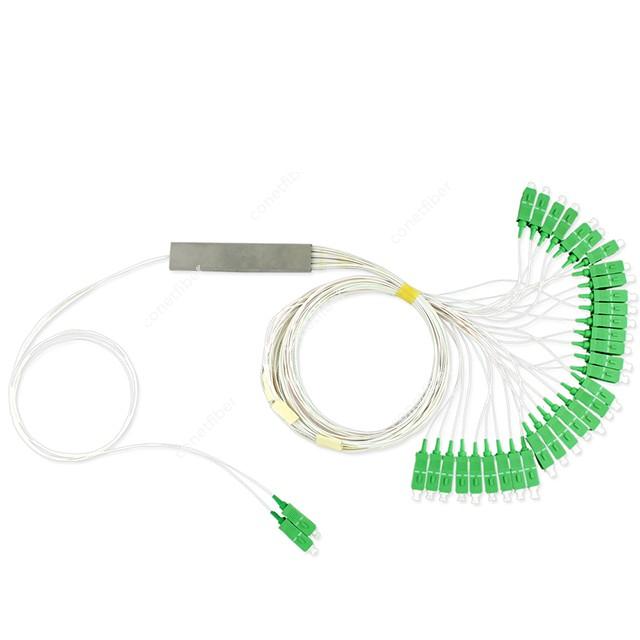

PLC splitter (Planar Lightwave Circuit splitter) is a passive optical device that evenly splits or combines optical signals from one input into multiple outputs. It offers high stability, low insertion loss, and uniform signal distribution, making it essential for FTTH, PON, and data center networks.
Features
Low insertion loss, Low PDL and High reliability
High return loss and Good repeatability
Wide wavelength range
Excellent channel-to-channel uniformity
Applications
LAN, WAN and Metro Networks
FTTH project & FTTX Deployments
CATV System
GPON, EPON
Fiber Optic Test Equipment
Data-base Transmit Broadband Net
Encapsulation Size
| Item | 1×8 |
| Length*Width*Height (mm) | 60×7×4 |
| Input | 0.9mm |
| Output | 0.9mm white/colorful loose tube |
| Fiber Length | 1M |
Specifications
| Item | 1×8 |
| Fiber Type | G657A1 |
| Working Wavelength | 1260nm~1650nm |
| Standard Insertion Loss (dB) | ≤10.7 |
| Uniformity (dB) | ≤0.8 |
| PDL (dB) | ≤0.3 |
| Wavelength Dependent Loss (dB) | ≤0.8 |
| Return Loss (dB) | ≥55 |
| Directivity (dB) | ≥55 |
| Operating Temp. Gange | -40℃~ +85℃ |
