CH004

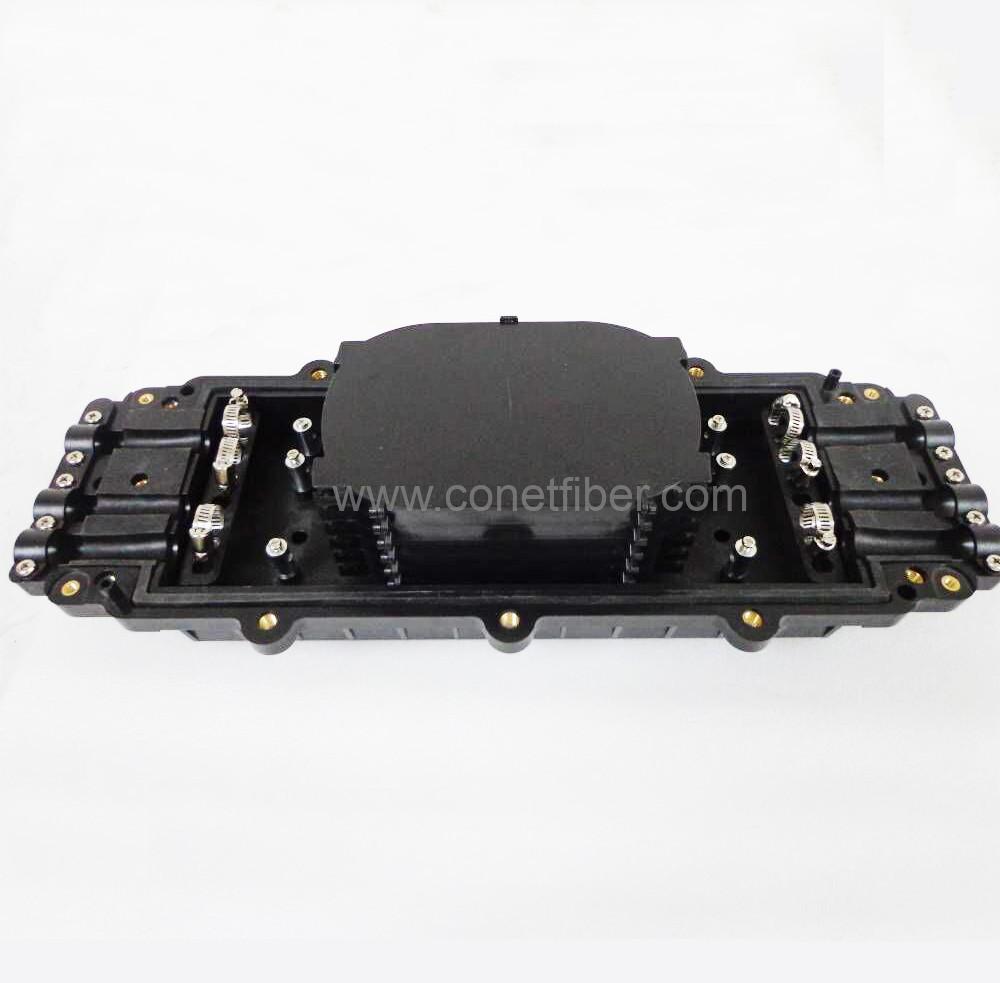

CH004 has 6 fiber cable in-out round ports for the cable diameter Ф13-Ф15mm entry. It is widely applied to the splicing and distributing variable optical cables. It is made of high-quality ABS plastic and with the mechanical seal structure filled with the seal material.The external component and fastening piece are all made of the high-quality steel. It can be opened after sealing and can be reused without changing sealing material, with silicone rubber insulation tape.
Share:
  • Technology Specs

Dimension (mm)

466.5x179.8x120.6

Weight ( Kg)

About 2.7

Cable diameter

Ф13-Ф15

cable entry ports

3 in 3 out

Max Capacity of splice tray

6pcs

Max Capacity

72single layer tube

144double layer tube

Sealing structure

silicon gum material or sticky cincture

Packing information6pcs/carton:18.3kgs; 50*41*42cm
