*The bottom shell and the upper cover are fixed with screws,removable.
* Material: PP+GF.
*Moisture proof, waterproof, dust-proof, anti-aging.
* Protection level up to IP68.

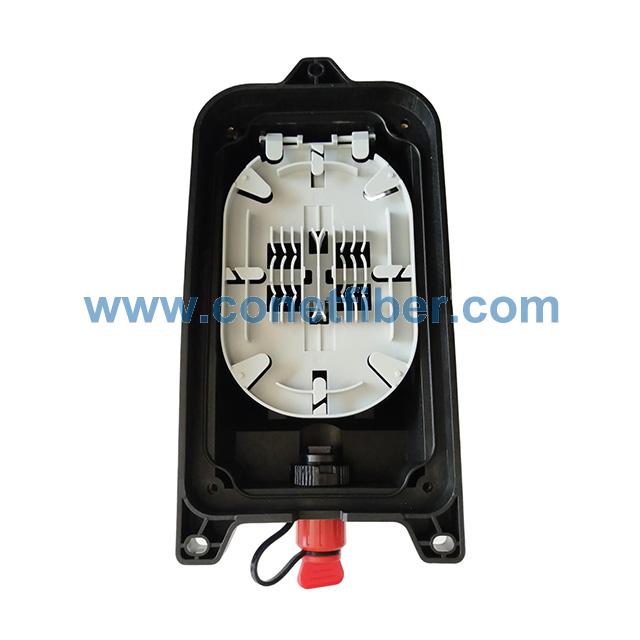

* The interior is equipped with 1x4 PLC splitter......
*Installation method: pole-mounted, aerial-mounted, wall-mounted.
| Item | Specifications | Remark |
| Material of housing | Modified PP plastic | |
| Material of internal components | PC+ABS/ABS | |
| Material of metal accessory | High-quality stainless steel | |

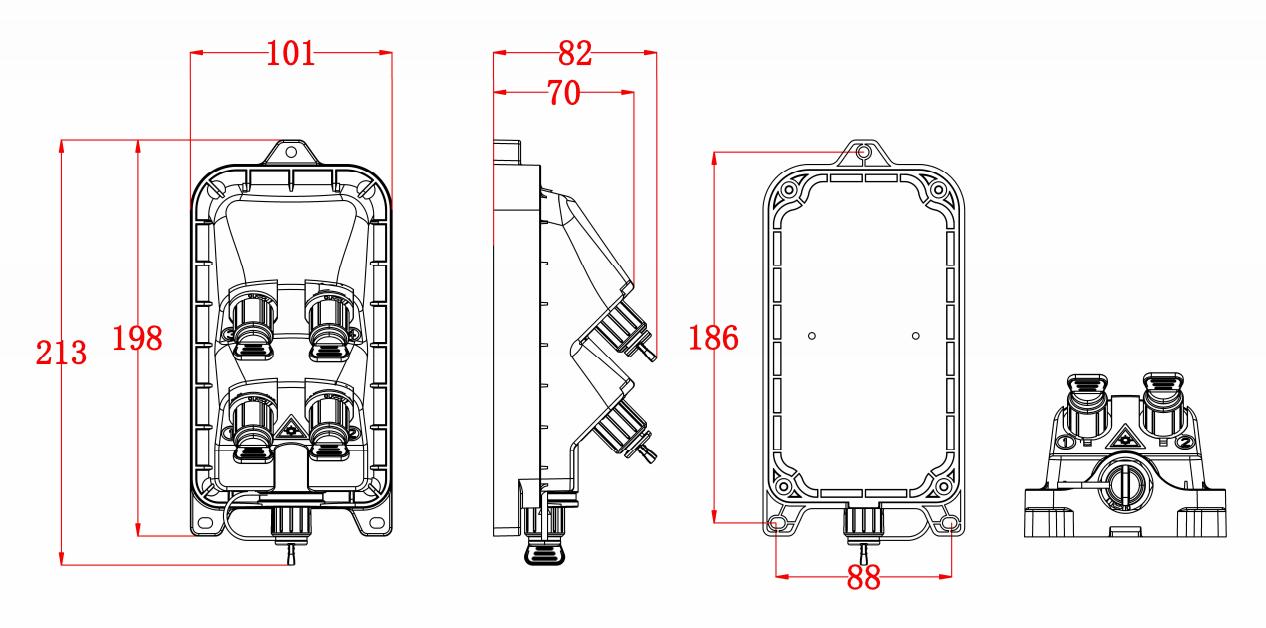

| External dimension(mm) | 198*101*70mm | |
| Color | Black | |
| Installation hole position(mm) | 186*88 | |

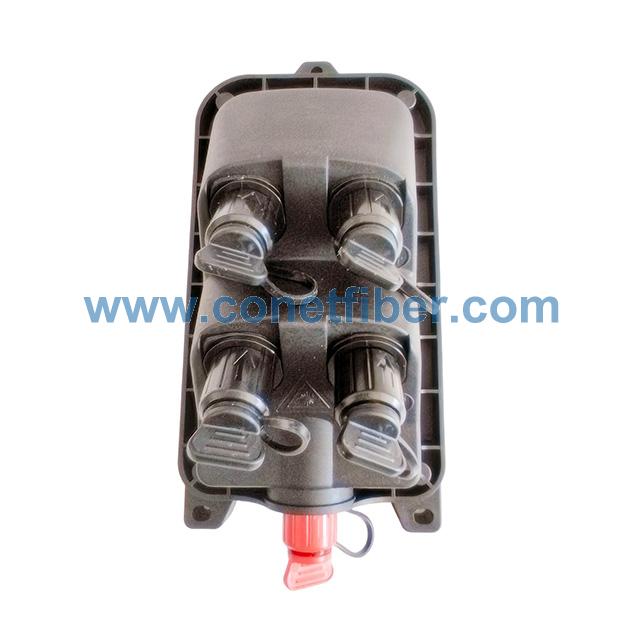

| Number of Pre-connectorized adaptors | 5 | 4DY(1 red,4 black) |
| 4 | 4DY-1(4 black) | |
| 4 | 4DY-2(4 black) | |
| Splitter | 1x4 PLC splitter | 4DY |
| 4DY-1 | ||
| 4DY-2 | ||
| IP grade | IP68 | |
| Flammability | UL94-HB | It can be customized according to needs. |
| Neutral salt spray test (NSS) | 48h |
