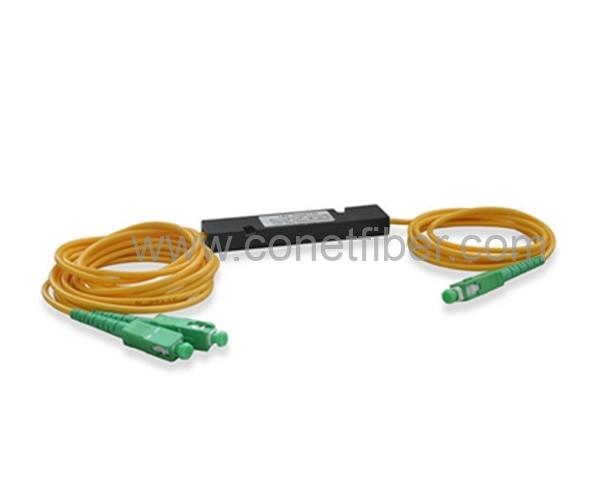

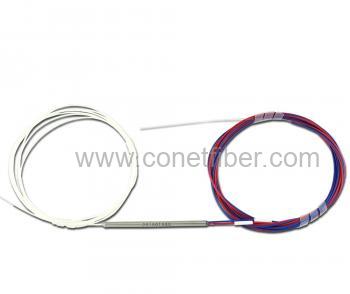

-Low insertion loss, Low PDL and High reliability
-High return loss and Good repeatability
-Wide wavelength range
-Excellent channel-to-channel uniformity
| Grade | P | A | P | A | |
| Operating Wavelength(nm) | 1310 and 1550 | ||||
| Operating Bandwidth(nm) | ±40 | ±80 | |||
| Typical Excess Loss(dB) | 0.07 | 0.1 | 0.07 | 0.1 | |
| Insertion Loss(dB) | 50/50 | ≤3.4 | ≤3.6 | ≤3.8 | ≤4.0 |
| 45/55 | ≤4.2/3.2 | ≤4.9/2.9 | ≤5.0/2.8 | ≤5.2/3.0 | |
| 40/60 | ≤4.7/2.7 | ≤3.4 | ≤3.4 | ≤3.4 | |
| 35/65 | ≤5.4/2.4 | ≤5.7/2.6 | ≤2.0/2.8 | ≤5.2/3.0 | |
| 33/67 | ≤5.7/2.2 | ≤6.0/2.4 | ≤6.1/2.3 | ≤6.4/2.5 | |
| 30/70 | ≤6.0/1.9 | ≤6.3/2.1 | ≤6.4/2.0 | ≤6.7/2.2 | |
| 25/75 | ≤7.0/1.7 | ≤7.3/1.9 | ≤7.3/1.7 | ≤7.7/1.9 | |
| 20/80 | ≤7.9/1.3 | ≤8.4/1.4 | ≤8.3/1.3 | ≤8.7/1.5 | |
| 15/85 | ≤9.5/1.0 | ≤10.0/1.2 | ≤9.6/1.0 | ≤10.1/1.2 | |
| 10/90 | 9.2~11.2/≤0.75 | 8.8~11.4/≤0.8 | ≤9.15~11.05/≤0.75 | 8.75~11.45/≤0.8 | |
| 5/95 | 12.05~14.15/≤0.4 | 11.60~14.60/≤0.5 | 12.00~14.25/≤0.45 | 11.50~14.70/≤0.5 | |
| 3/97 | 14.1~16.5/≤0.35 | 13.60~17.05/≤0.45 | 14.00~16.60≤0.35 | 13.45~17.15/≤0.45 | |
| 2/98 | 15.75~18.45/≤0.3 | 15.15~19.00/≤0.4 | 15.60~18.60/≤0.3 | 14.95~19.20/≤0.4 | |
| 1/99 | 18.6~21.6/≤0.25 | 17.95~22.25/≤0.35 | 18.35~21.85/≤0.25 | 17.60~22.55/≤0.35 | |
| PDL(dB) | ≤0.15 | ≤0.20 | ≤0.15 | ≤0.20 | |
| Directivity(dB) | ≥55 | ||||
| Operating Temperature(℃） | -40~85 | ||||
Note:
1. The above specification is without connector
2. Add an additional 0.2dB loss including connectors
| Coupling Ratio | Encapsulation size | Connector | Cable diamater | Length | |
| FBT | 01: 1/99 | A: 3.0x54 | NA:None | C: Coated fiber(250um bare) | 03: 0.3M |
| 02: 2/98 | B: 90x20x10 | SU: SC/UPC | 9: 0.9mm cable | 05: 0.5M | |
| 3: 3/97 | SA: SC/APC | 2: 2.0mm cable | 10: 1M | ||
| 4: 4/96 | LU: LC/UPC | 3: 3.0mm cable | 15: 1.5M | ||
| 5: 5/95 | LA: LC/APC | ||||
| 10: 10/90 | FU: FC/UPC | ||||
| 20: 20/80 | FA: FC/APC | ||||
| 30: 30/70 | |||||
| 40: 40/60 | |||||
| 50: 50/50 |
