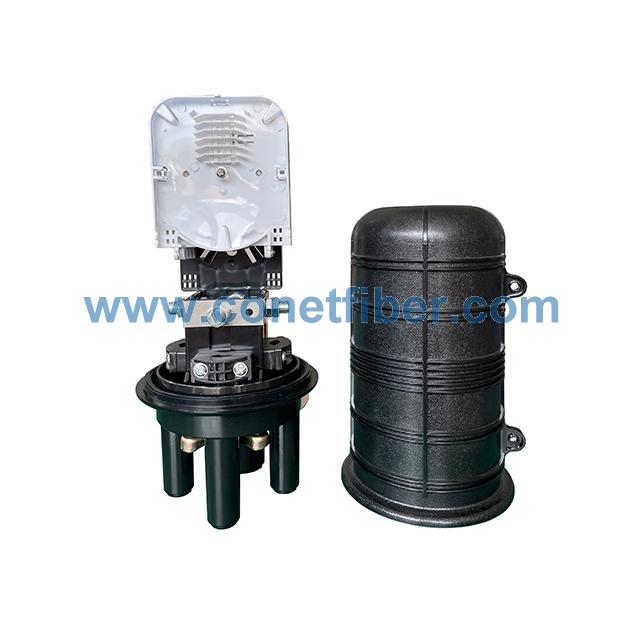

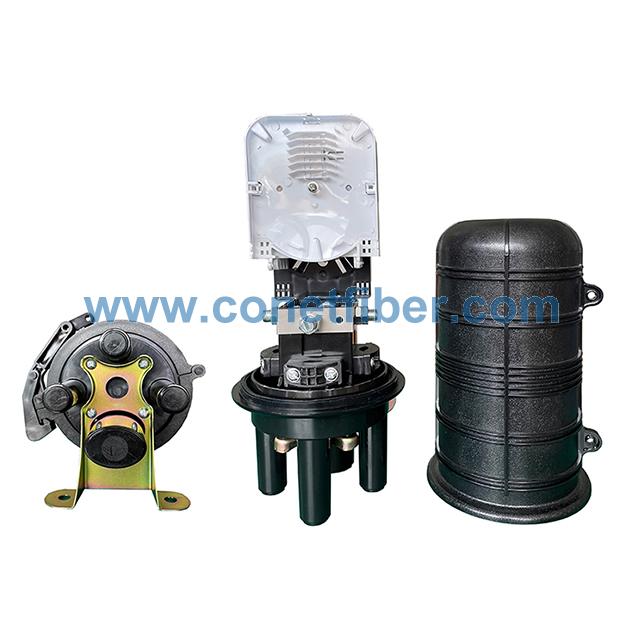

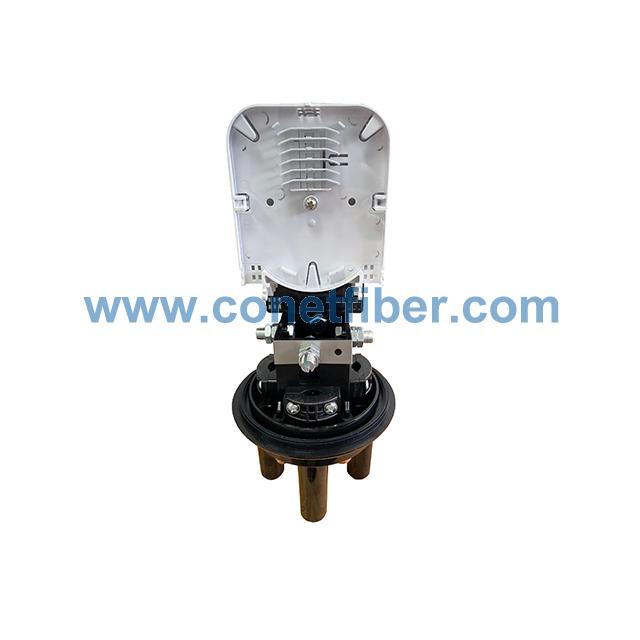

1. Heat shrink sealing structure.2. High quality industrial plastic body material.
3. This model has three small round ports and one large round port
4. Support aerial, underground, pipeline mman holes, hand holes
5. Protection level reachers IP68
6.Maximum capacity: 48 fibers
7. Number of splice trays: 4 pcs x 12F
Item | CNT-010 | Cable ports | 4 ports |
Number of fiber fusion | 24-48 Cores | Capacity of splice tray | 12 cores tray |
Dimension (mm) | 300×∅120mm | Package | 1pcs/inner carton 6pcs/outer carton |
Cable diameter(mm) | 1x Oval:Φ26x38mm 3x Round:Φ18mm | Max capacity of fiber | 48 Cores |
Working temperature | -40℃~65℃ | ||
Sealing Type | Heat shrink sealing | Installation Type | Pole-Mounted/In-line |
NO. | Name of components | Quantity | Usage | Remarks |
1 | FOSC cover | 1 piece | Protecting fiber cable splices in whole | |
2 | Fiber optic splitter tray | 4 trays for 1x12
| Fixing heat shrinkable protective sleeve and holding fibers | Suitable for: 48 cores |
3 | Fiber holding tray | 1 piece | Holding fibers with protective coat | |
4 | Foundation | 1 set | Fixing fiber cable, reinforced core and FOST | |
5 | Base | 1 set | Fixing internal and external structure | |
6 | Seal fitting | 1 piece | Sealing between FOSC cover and base | |
7 | Pressure testing valve | 1 set | After injecting air, it is used for pressure testing and sealing testing | Configuration as per requirement |
8 | Earthing deriving device | 1 set | Deriving metallic parts of fiber cable in FOSC for earthing connection | Configuration as per requirement |
NO. | Name of accessories | Quantity | Usage |
1 | Heat shrinkable protective sleeve | Protecting fiber splices | |
2 | Nylon tie | Fixing fiber with protective coat | |
3 | Heat shrinkable fixing sleeve (single) | Fixing and sealing single fiber cable | |
4 | Seal tape | Fixing and sealing mass of fiber cable | |
5 | Branching clip | Branching fiber cables | |
6 | Earthing wire | 1 piece | Putting through between earthing devices |
7 | Desiccant | 1 bag | Put into FOSC before sealing for desiccating air |
8 | Labeling paper | 1 piece | Labeling fiber |
9 | Special wrench | 1 piece | Tightening nut of reinforced core |
10 | Metal hoop | 1 set | For wall mounting and pole hugging |
11 | Buffer tube | To be decided by customers | Hitched to fibers and fixed with FOST, managing buffer |
12 | Aluminum-foil paper | 1 piece | Protect the bottom of FOS |
