Fiber Optic Visual Fault Locator specially designed for field personnel who need an efficient and economical tool for fiber tracing, fiber routing and continuity checking in an optical network during and after installation.
• Quickly and easily locate damages in optical fiber
•Operates either in CW or Pulsed

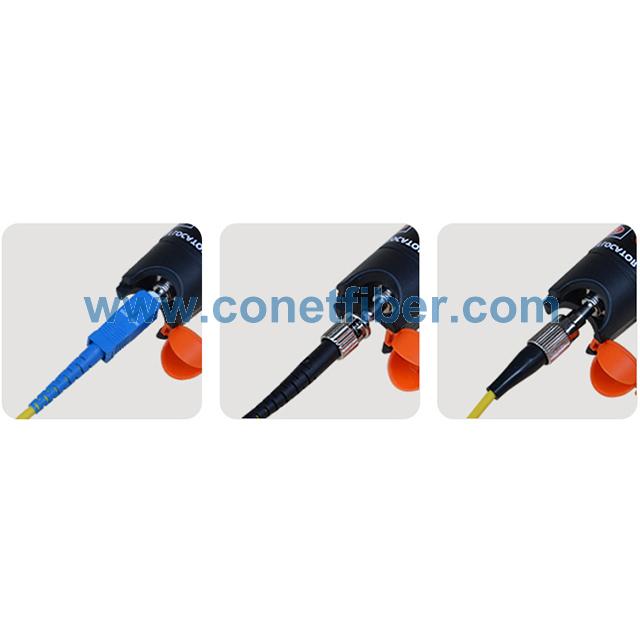

• 2.5mm Universal connector (1.25mm adapter available)
• High powered laser (1mW) for single-mode(>7km) and multi-mode(>5km) connectors
• Soft-sided carrying case with belt loop
• Compact, ergonomic design for ultimate portability
• Protective rubber end cap
PART NUMBER | VFL-16S | VFL-16M | VFL-16L | VFL-16T |
Wavelength | 650nm ± 20nm | |||
Output Power | > 5 mW | > 10 mW | > 20 mW | > 30 mW |
Dynamic Distance | 5 ~ 7 km | 8 ~ 10 km | 15 ~18 km | 22 ~ 25 km |
Connecting Adapter | 2.5 mm Universal, LC Adapter optional | |||
Storage Temperature | -20 -- +70 ℃, 90%RH | |||
Operating Temperature | -10 -- +60 ℃, 90%RH | |||
Power Supply | AA * 2 | |||
Weight | About 125g |
