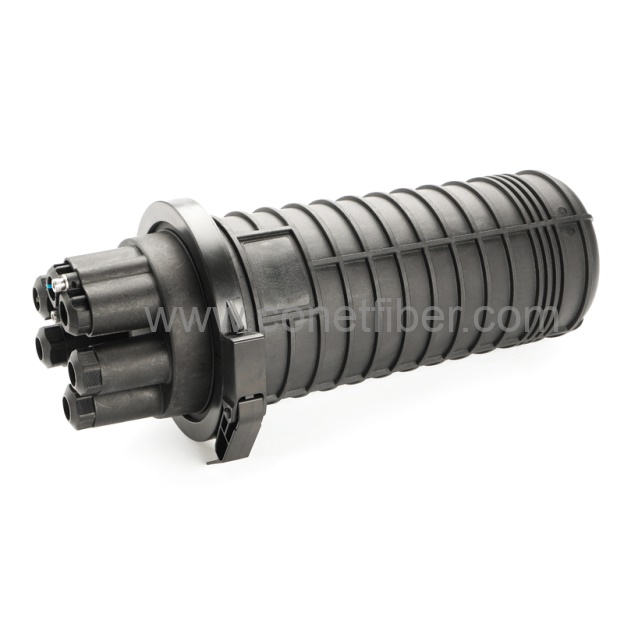

GPJ09-5601 type of FOSC is designed for connection and protection of fiber cables. This model has one uncut port, seven branch ports, two drop cable ports. It can be used for different applications of optical fiber cable splicing & branching and is suitable for aerial, pipe-lined, manhole and direct buried applications. It applies to any sort of cables(loose tube, skeleton, ribbon etc.)
Model No. | GPJ09-5601 | ||
Style | Dome | ||
Dimensions(mm | 455 × Φ225 | ||
Weight (kg) | 3.5 - 4.5 | ||
Material | PP+GF | ||
Sealing Type | Mechanical Seal | ||
Protection Grade | IP68 | ||

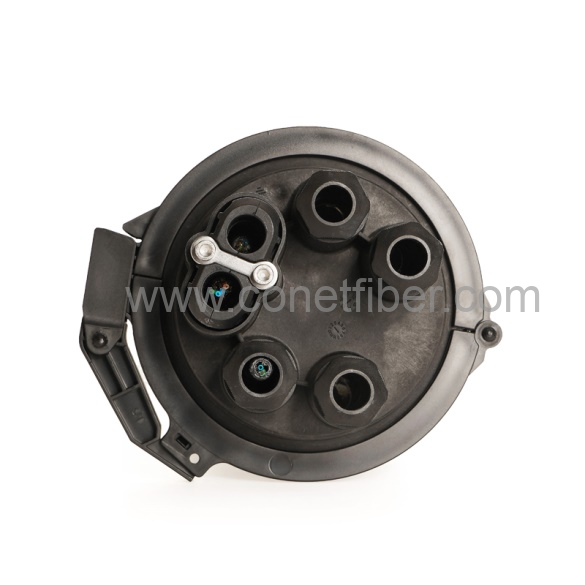

Cable ports | Oval port | 1 | Φ14- Φ18 mm |
Branch port | 4 | Φ14 - Φ18 mm | |
Closure Max Capacity | Single fiber splicing | 144F | |

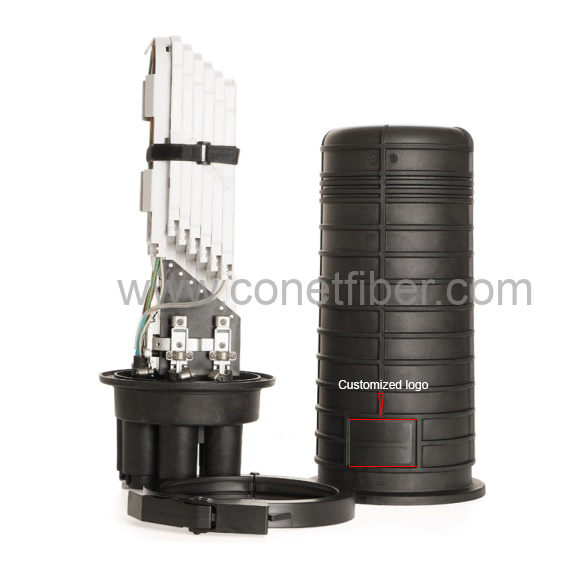

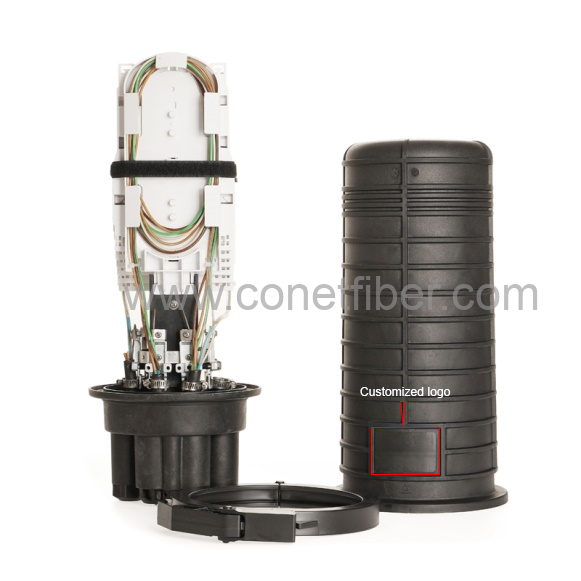

Splice Tray Capacity | Single fiber splicing per tray | 24F | |
Max No. tray installed | 6pc | ||
PLC Splitte | 1pc splitter | ||
Installation | Aerial, wall, pole, manhole etc. |
