-High-density cabling in Data Center
-Easy Polarity Reversal
-Low Insertion Loss
| No. | Item | Unit | Single Mode | Multi Mode | ||
| 1 | Insertion loss | dB | ≤0.3 | ≤0.3 | ||
| 2 | Return loss | dB | PC | UPC | APC | / |
| ≥45 | ≥50 | ≥60 | ≥35 | |||
| 3 | Repeatability | dB | 0.1 | |||
| 4 | Working Times | Times | ≥1000 | |||
| 5 | Operating Temperature | ℃ | -40~+85 | |||
| 6 | Optical Cable Diameter | mm | Ф3.0 | |||
3D Specification
| Item | UPC Polishing | APC Polishing | Schematic Diagram | ||
| Ferrule Diameter (mm) | 2.5 | 1.25 | 2.5 | 1.25 |  |
| Radius of Curv (mm) | 10~25 | 7~25 | 5~12 | ||
| Fiber Height (nm) | -125~50 | ±100 | |||
| Apwex Offset (um) | ≤50 | ≤50 | |||

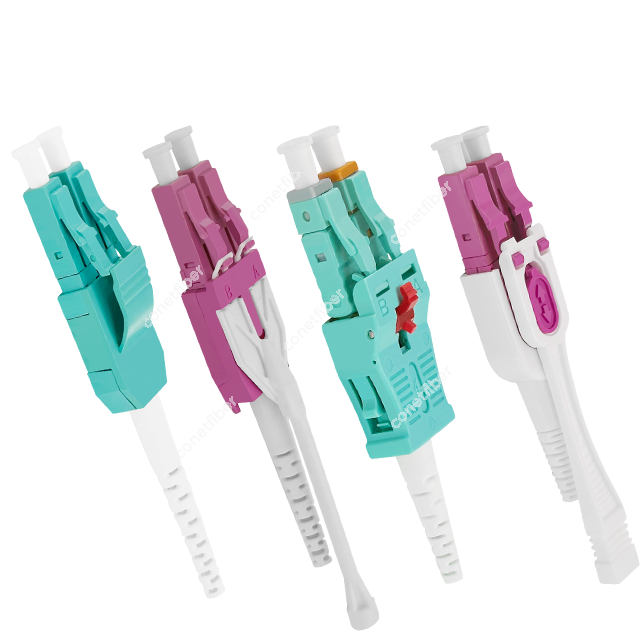

| Uniboot Type | Cable Diameter | Cable Type | Length |

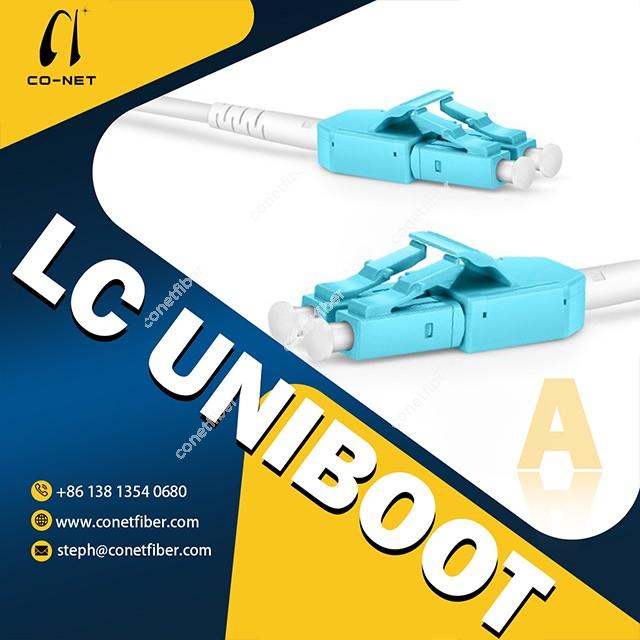

| Type A | 2.0mm | G657A1 | |

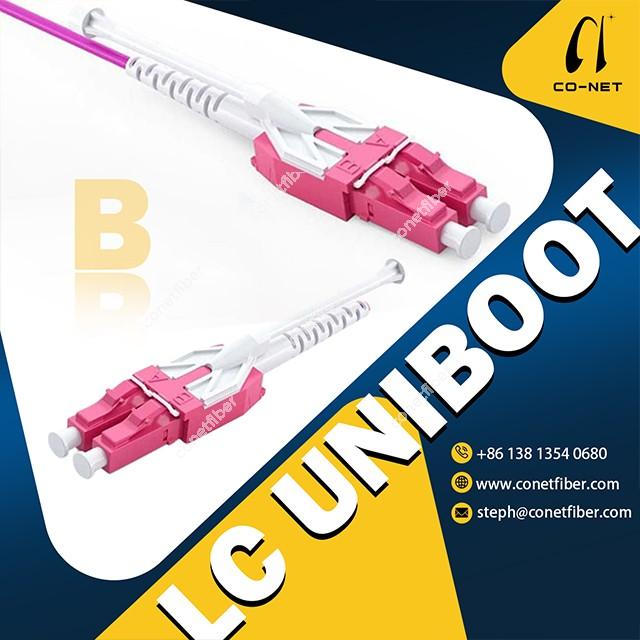

| Type B | 3.0mm | G657A2 | |

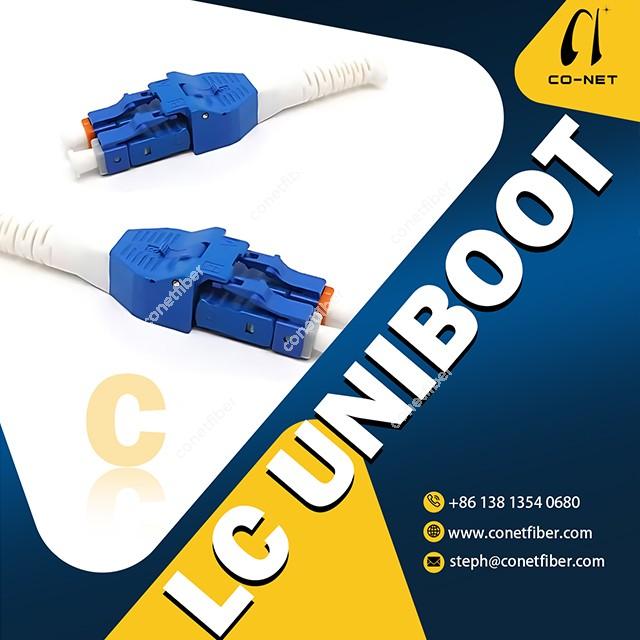

| Type C | OM1 | ||
| Type D | OM2 | ||
| OM3 | |||
| OM4 | |||
| OM5 |
