-High-density Cabling Solution
-Plug-and-play Pre-terminated Design
-Low Insertion Loss for 40/100/400G Networks
-Available in Customized Length/Polarity/Fiber Count
General Description

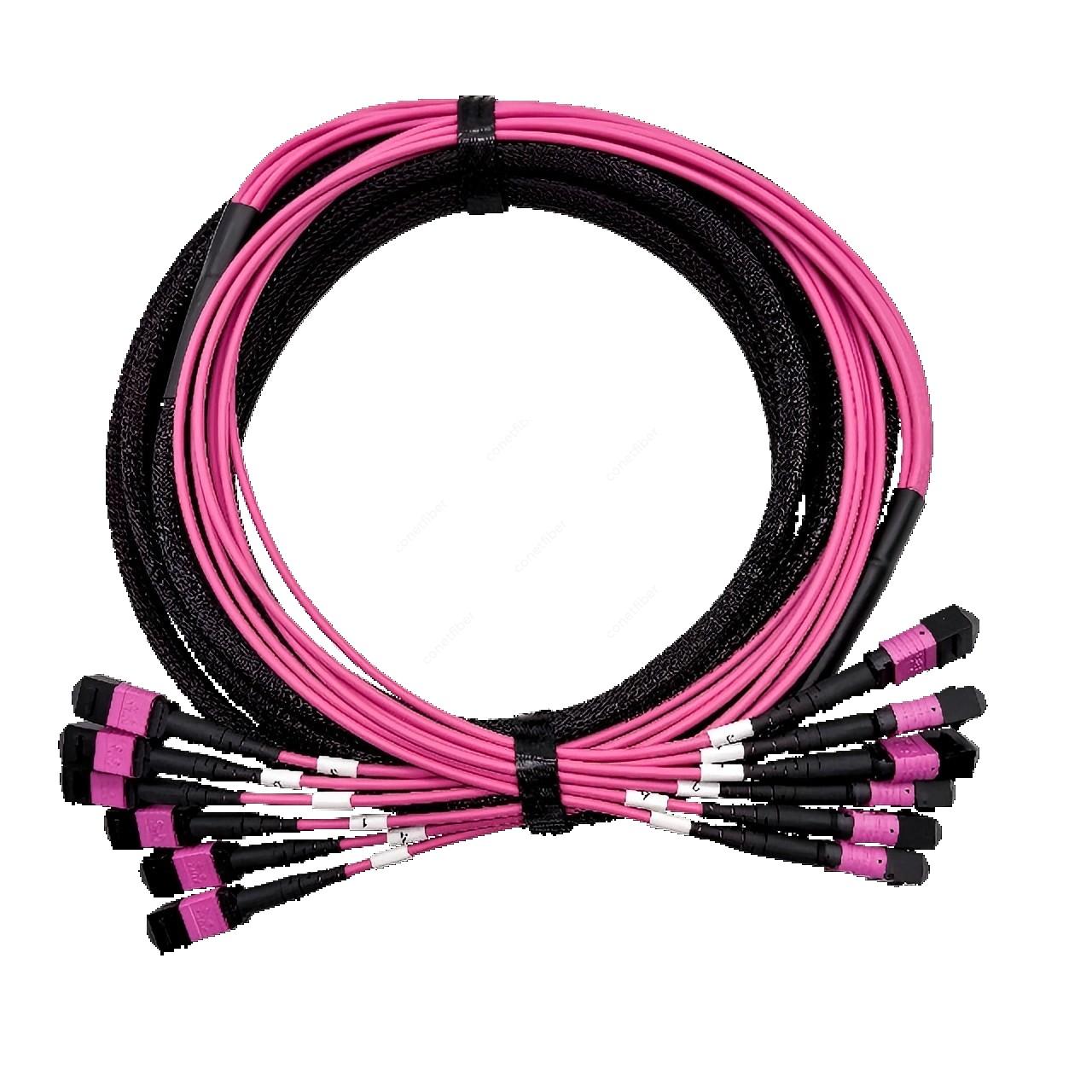

MPO/MTP® trunk cable is high-density pre-terminated optical cabling that simplify installation and improve performance designed to be a cost-effective alternative to time-consuming field termination. They are used to connect MPO/MTP® patch panels, fiber cassettes, and electronics, typically within a cabinet and row.
Connector Specification
| Parameter | MPO/MTP® Trunk Patch Cord | |
|---|---|---|
| Connector Type | MTP®, MPO, China Housing MPO | |
| Connector Compliance | IEC 61754-7,TIA 604-5,ROHS | |
| Fiber count | 8,12,16,24//32,48,64,72,96,144,288 | |
| Polarity Type | Type A, Type B, Type C | |
| Insertion Loss | Low Loss:≤ 0.35 dB | Standard Loss:≤ 0.7 dB |
| Return Loss | ≥50dB | |
| Operating Temperature | -10'C to +70°C | |
| Durability | <0.1 dB typical change for > 500 matings | |
Cable Specification
| Cable Type | OS2, OM3, OM4, OM5 |
|---|---|

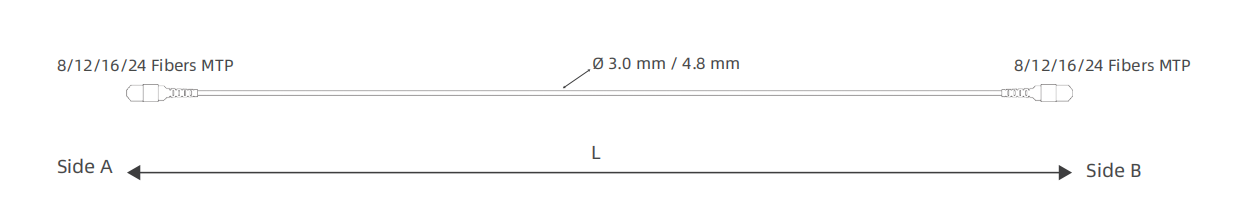

| Cable Diameter | 3.0mm,4.8mm |
| Cable Color | Yellow, Aqua, Violet, Lime Green |
| CPR | Dca, s2, d0, a1 |
End-face Control Parameters
| Geometry inspection | IEC 61755-3-31 |
|---|---|
| Visual inspection | IEC 61300-3-35 |
| Brand | Fiber Count | Gender | Insertion Loss | Polarity Type | Cable Type | Cable Diameter | Color | Length |
| MTP® | 8 | Male | Standard Loss | Type A | G657A2 | 3.0mm | Yellow | |
| SENKO® MPO | 12 | Female | Low Loss | Type B | OM3-150 | 4.8mm | Aqua | |
| MPO | 16 | Type C | OM3-300 | Violet | ||||
| 24 | OM4 |

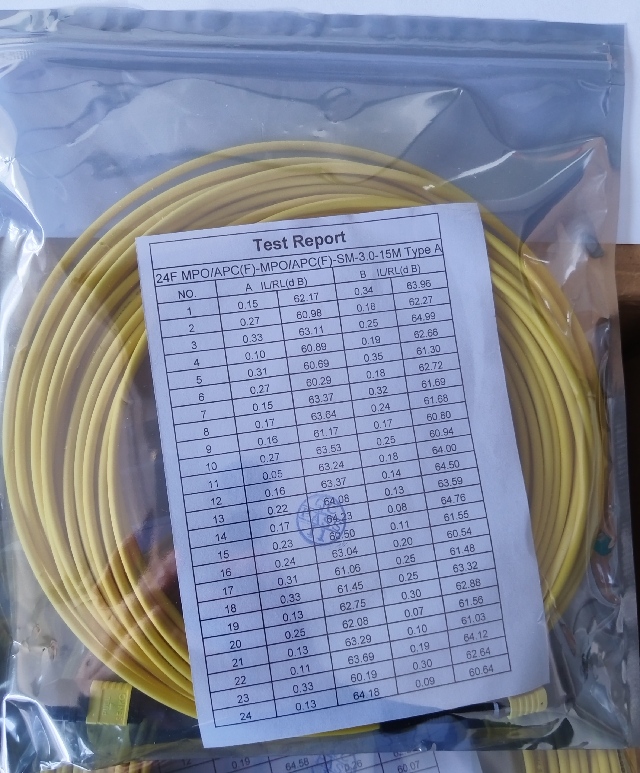

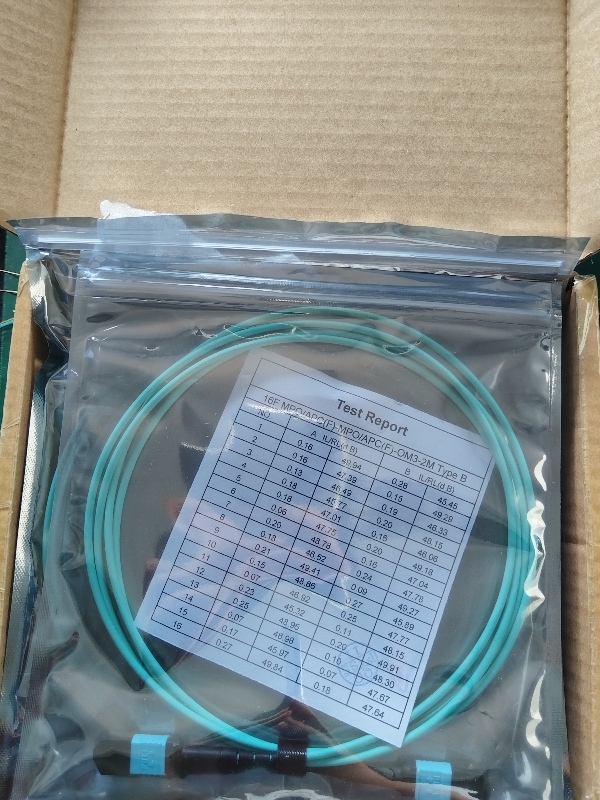

100% tested before shipment, and individual test reports are provided.
