Product parameters
Model | GPJ09-JZ-05 |
Description | Manhole/ Vault |

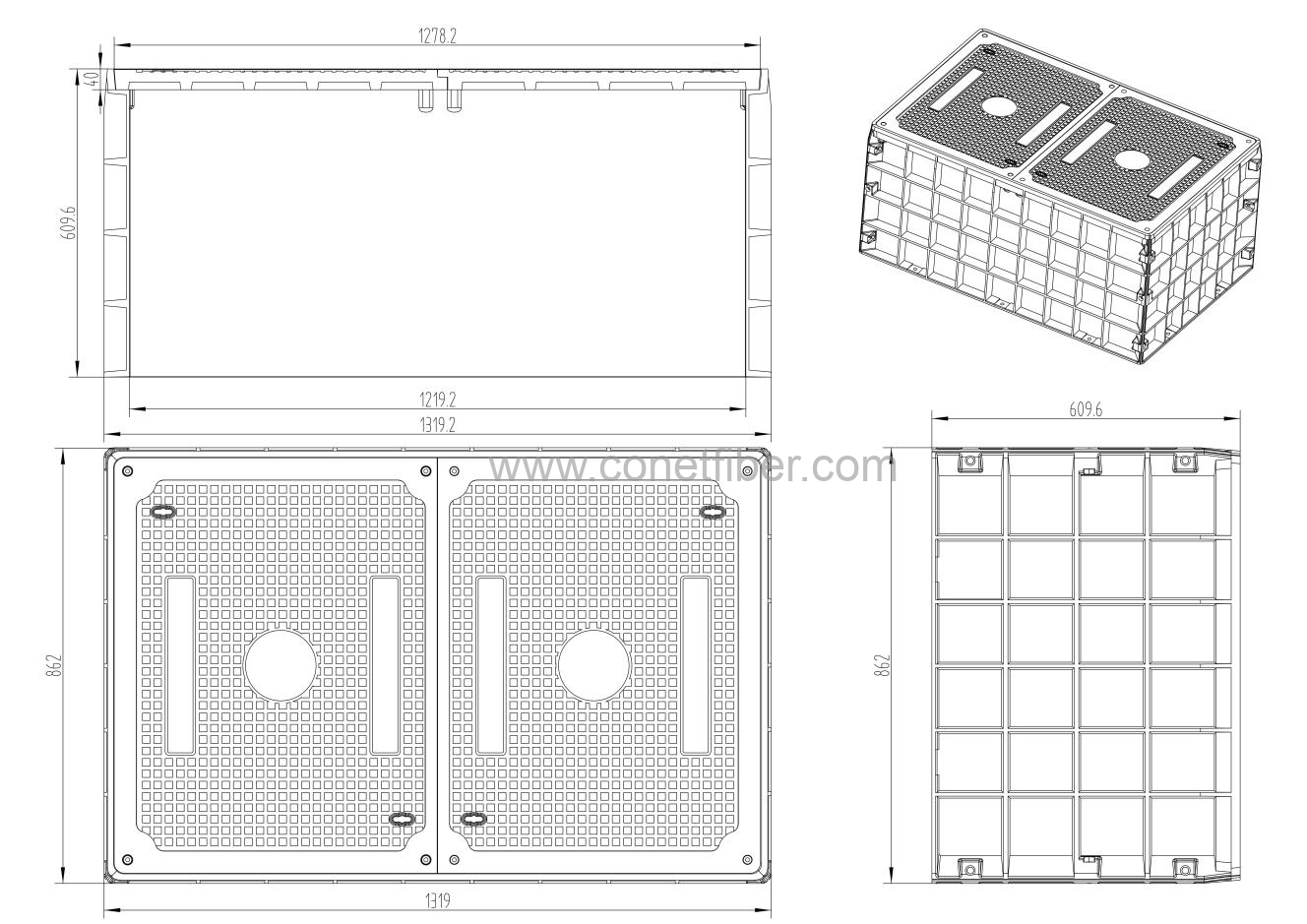

Product size | 48*30*24 inches |
Installation method | buried |
Input cable diameter | 10-30mm |
Enter the number of ports | Perforation as required |
Material | SMC |
Flammability rating | UL94=ulV0 |
Environmental requirements | ROHS |
Surface treatment | s |
Box color | black |
Weight | 120KG |
Accessory
type | name | Specifications | quantity |
Install accessories | Hexagon socket bolt | M13*45 stainless steel 304 (American standard) | 12 |
Hex Bolts | M13 Nut Stainless Steel 304 (American Standard) | 12 | |
Triangular anti-theft bolt | M8*62 stainless steel 304 (American standard) | 8 | |
built-in accessories | English manual (neutral) | 128g coated paper P3 A5 black and white | 1 |
Closure pockets | 160*260mm*20S | 1 |
model | Product weight (kg) | Number of pallets | 40-foot container (limited to 18 tons) |
GPJ09-JZ-0 5 | 120KG | 39 torr | 180 sets |
Accessory packaging | (1) Hexagon socket bolts, hexagon bolts, triangular anti-theft bolts, and English manual (neutral) are packed and put into a large PE bag; (2) The front and rear panels, left and right side panels, and cover panels of the manhole well are packaged separately; | ||
