-cost-effective and rapid deployment in outside plant(OSP) distribution networks
-IP68 protection, salt-mist proof, humidity proof, dust proof
-1:2, 1:4, 1:8, 1:16 splitter available
Cable | 4.8-5.0mm Black TPU with ITU-T G.657A1 fiber |

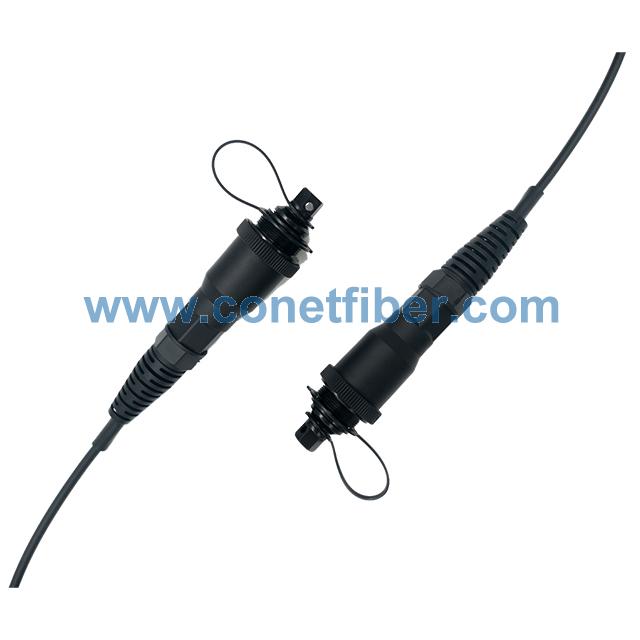

Connector | H Optitap lnline SC/APC connector |
Input length | 0.3M or customized |
Output length | 0.5M or customized |

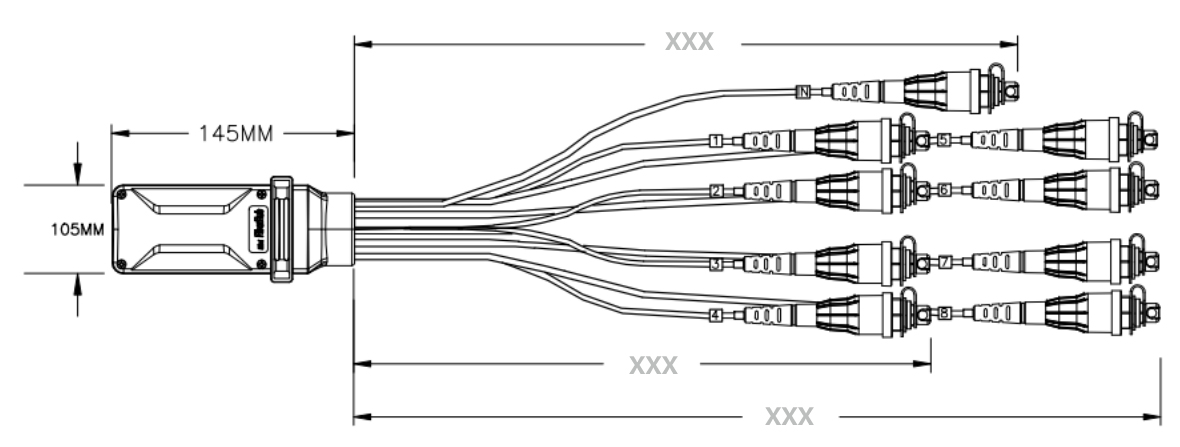

Closure size | 145x105x50mm |
Insertion loss | 1x2: ≤4.5dB 1x4: ≤7.8dB 1x8: ≤11dB 1x16: ≤13.7dB |
Return loss | ≥55dB |
Operation Temperature | -40~+70 ℃ |
Waterproof level | IP68 |
Test Standard | Comply to GR-3120, GR-3152, IEC 61753-1, IEC 61754-4 |
| Model | Input length | Output length |
| 1x2 | 0.3M | 0.5M |
| 1x4 | customized | customized |
| 1x8 | ||
| 1x16 |

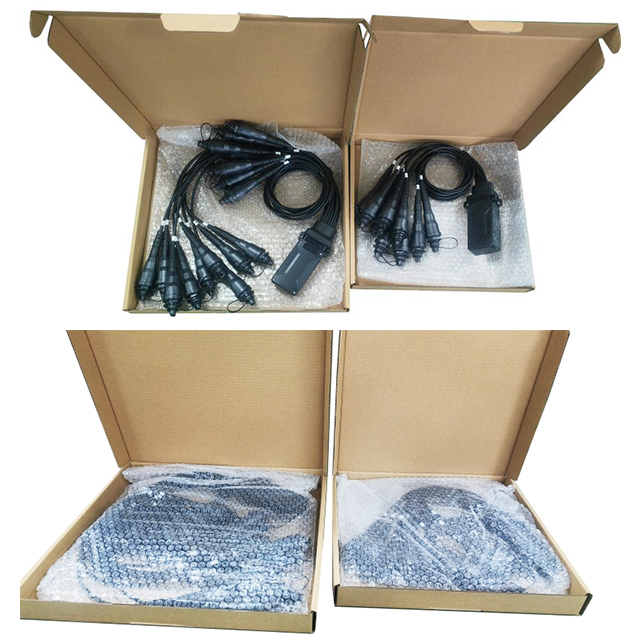

Model | Net weight | Packing size | Weight per box |
| 1x2 | 0.4KG | 55x40x32CM/10pcs | 4.5KG |
| 1x4 | 0.6KG | 55x40x32CM/10pcs | 6.5KG |
| 1x8 | 0.8KG | 55x40x32CM/10pcs | 8.5KG |
| 1x16 | 1.2KG | 55x40x32CM/5pcs | 14KG |
