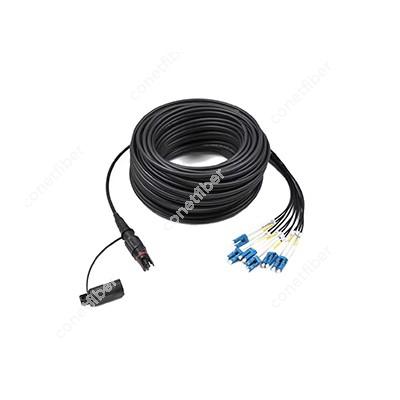

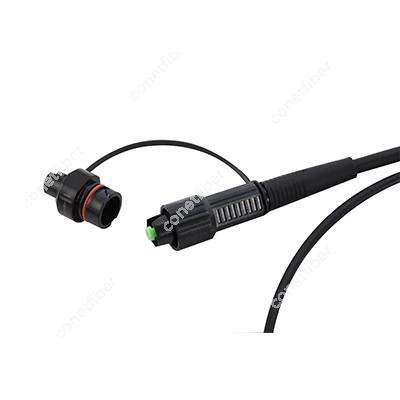

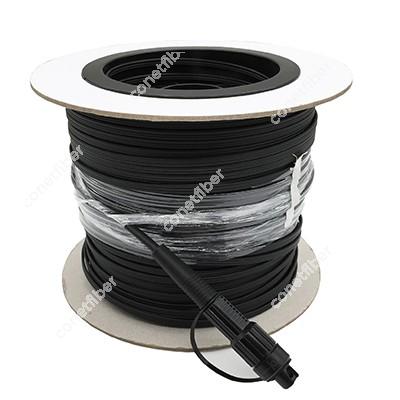

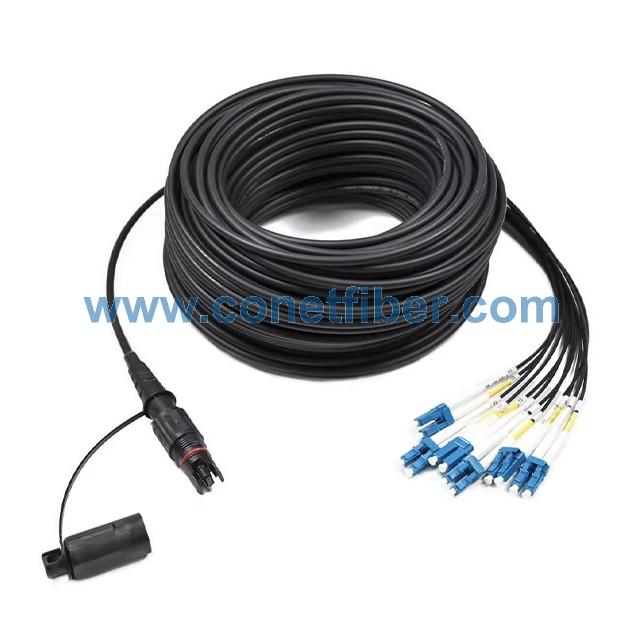

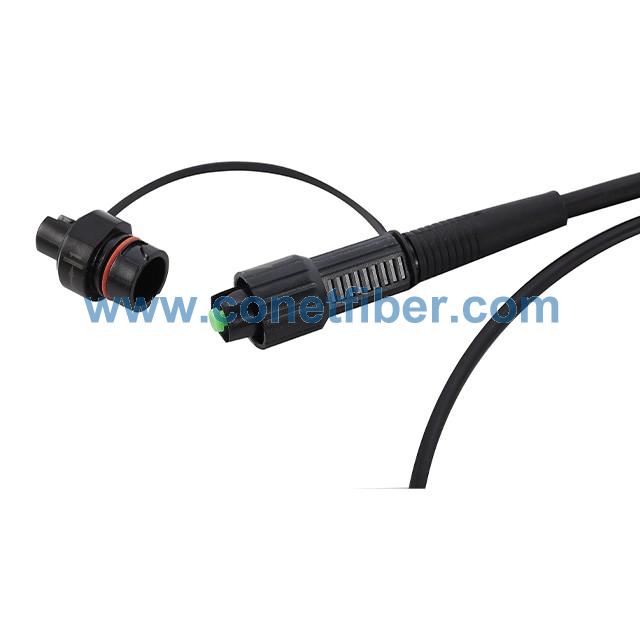

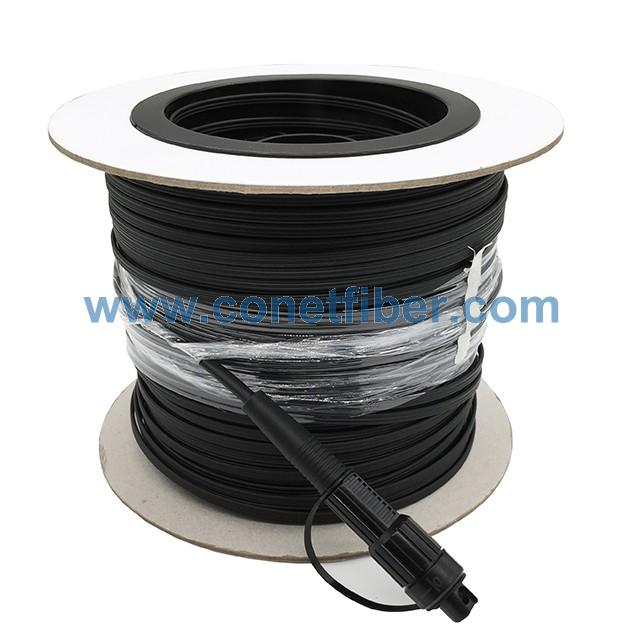

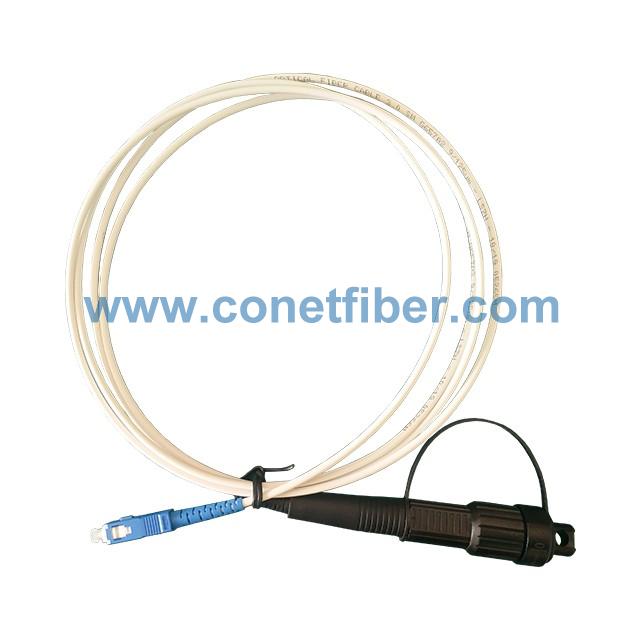

Mini SC patch cords for outdoor applications are rugged fiber optic cables designed to withstand harsh environments. Featuring compact mini SC connectors, they offer reliable, low-loss connections, UV and weather resistance, and durable performance in high-density networks. Suitable for both single-mode and multimode fibers, available in various lengths.
Application
1. Multi-purpose Outdoor.
2. For connection between distribution box and RRH.
3. Deployment in Remote Radio Head cell tower applications.
Features
1. Cost effective solution for in house termination.
2. Low insertion loss and added loss.
3. Height of attenuation.
4. IP68 water, dust proof and corrosion resistant
5. The material in the jumpel cable are all-weather and UV-resistant.
6. Mechanical performance: IEC 61754-20
7. RoHS and REACH materials compliant.
Connector Types
| Type | Reference | Note | |
| LC | IEC 61754-20 | Single mode duplex | APC: Green connectors UPC: Blue connectors |
| Multimode duplex | UPC: Grey Connectors | ||
Dimensional Diagrams
1. Mini IP LC Outdoor Cable Assemblies
Patch Cord Versions
| Jumper tolerance requirement | |
| Overall length (L) (M) | length of tolerance (CM) |
| 0＜L≤20 | +10/-0 |
| 20＜L≤40 | +15/-0 |
| L＞40 | +0.5%L/-0 |

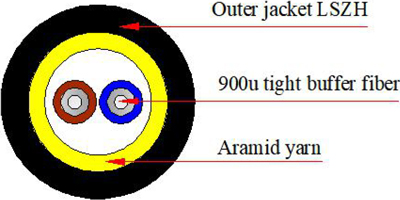

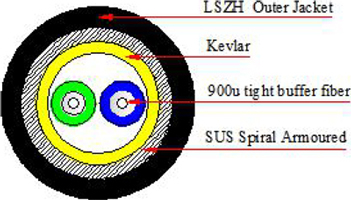

Cable Structure
Cable Parameters
| Cable Count | Out sheath Diameter (MM) | Weight (KG) | Minimum allowable Tensile Strength (N) | minimum allowable Crush Load (N/100mm) | Minimum Bending Radius (MM) | Storage temperature (℃) | |||
| short term | long term | short term | long term | short term | long term | ||||
| 2 | 5.0±0.2 | 30 | 800 | 400 | 2000 | 1000 | 20D | 10D | -20 ~~ +70 |
Cable Structure
Cable Parameters
| Cable Count | Out sheath Diameter (MM) | Weight (KG) | Minimum allowable Tensile Strength (N) | minimum allowable Crush Load (N/100mm) | Minimum Bending Radius (MM) | Storage temperature (℃) | |||
| short term | long term | short term | long term | short term | long term | ||||
| 2 | 5.0±0.2 | 45 | 400 | 800 | 2000 | 3000 | 20D | 10D | -20~~+70 |
Optical Characteristics
| Item | Parameter | Reference | |
| Single mode | Multimode | ||
| Insertion loss | Typical value ≤ 0.15dB; Maximum ≤ 0.30 | Typical value ≤ 0.15dB; Maximum ≤ 0.30 | IEC 61300-3-34 |
| Return loss | ≥ 60dB (APC); ≥ 50dB (UPC) | ≥ 30dB (UPC) | IEC 61300-3-6 |
End-Face Geometry LC
| Item | UPC (Ref: IEC 61755-3-1) | APC (Ref: IEC 61755-3-2) |
| Radius of curvature (mm) | 7 to 25 | 5 to 12 |
| Fiber height (nm) | -100 to 100 | -100 to 100 |
| Apex offset (μm) | 0 to 50 | 0 to 50 |
| APC angle (°) | / | 8° ±0.2° |
| Key error (°) | / | 0.2° max |
End-Face Qualty (SM)
| Zone | Range (μm) | Scratches | Defects | Reference |
| A: Core | 0 to 25 | None | None | IEC 61300-3-35:2015 |
| B: Cladding | 25 to 115 | None | None | |
| C: Adhesive | 115 to 135 | None | None | |
| D: Contact | 135 to 250 | None | None | |
| E: Rest of ferrule | None | None | ||
End-Face Qualty (MM)
| Zone | Range (μm) | Scratches | Defects | Reference |
| A: Core | 0 to 65 | None | None | IEC 61300-3-35:2015 |
| B: Cladding | 65 to 115 | None | None | |
| C: Adhesive | 115 to 135 | None | None | |
| D: Contact | 135 to 250 | None | None | |
| E: Rest of ferrule | None | None | ||
Mechanical Characteristics
| Test | Conditions | Reference |
| Endurance | 500 matings | IEC 61300-2-2 |
| Vibration | Frequency: 10 to 55Hz, Amplitude: 0.75mm | IEC 61300-2-1 |
| Cable retention | 400N (main cable); 50N (connector part) | IEC 61300-2-4 |
| Strength of coupling mechanism | 80N for 2 to 3mm cable | IEC 61300-2-6 |
| Cable torsion | 15N for 2 to 3mm cable | IEC 61300-2-5 |
| Fall | 10 drops, 1m drop height | IEC 61300-2-12 |
| Static lateral load | 1N for 1h (main cable); 0.2N for 5min (ranch part) | IEC 61300-2-42 |
| Cold | -25°C, 96h duration | IEC 61300-2-17 |
| Dry heat | +70°C, 96h duration | IEC 61300-2-18 |
| Change of temperature | -25°C to +70°C, 12 cycles | IEC 61300-2-22 |
| Humidity | +40°C at 93%, 96h duration | IEC 61300-2-19 |
