-High-density cabling in Data Center
-LC DX alternative
-Accepts 1.6 mm and 2.0 mm cable
| No. | Item | Unit | Single Mode | Multi Mode | |
| 1 | Insertion loss | dB | ≤0.2 | ≤0.15 | |
| 2 | Return loss | dB | UPC | APC | / |
| ≥55 | ≥65 | ≥25 | |||
| 3 | Durability | dB | 0.2 | ||
| 4 | Working Times | Times | ≥1000 | ||
| 5 | Operating Temperature | ℃ | -40~+75 | ||
| 6 | Optical Cable Diameter | mm | Ф1.6, Ф2.0 | ||
3D Specification
| Item | UPC Polishing | APC Polishing | Schematic Diagram | ||
| Ferrule Diameter (mm) | 2.5 | 1.25 | 2.5 | 1.25 |  |
| Radius of Curv (mm) | 10~25 | 7~25 | 5~12 | ||
| Fiber Height (nm) | -125~50 | ±100 | |||
| Apwex Offset (um) | ≤50 | ≤50 | |||

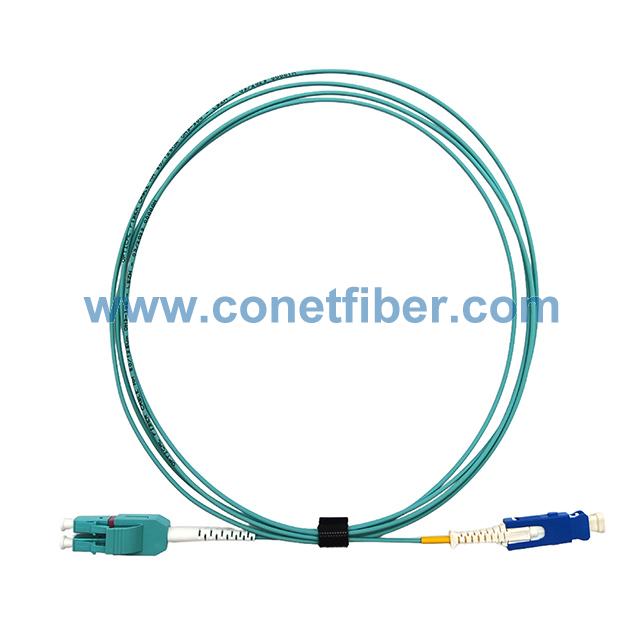

| Connector A | Connector B | Cable Diameter | Cable Type | Cable length |

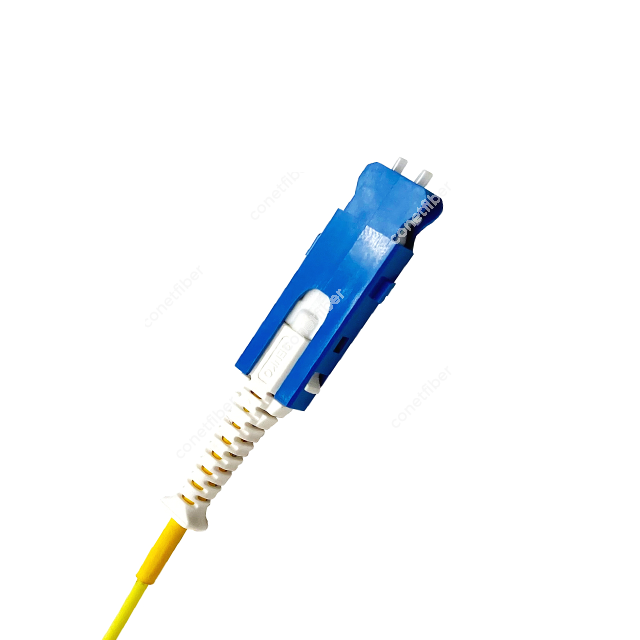

| SN | SN | 1.6mm | G657A1 | |
| Uniboot Type A | 2.0mm | G657A2 | ||
| Uniboot Type B | OM1 | |||
| Uniboot Type C | OM2 | |||
| Uniboot Type D | OM3 | |||
| OM4 | ||||
| OM5 |
