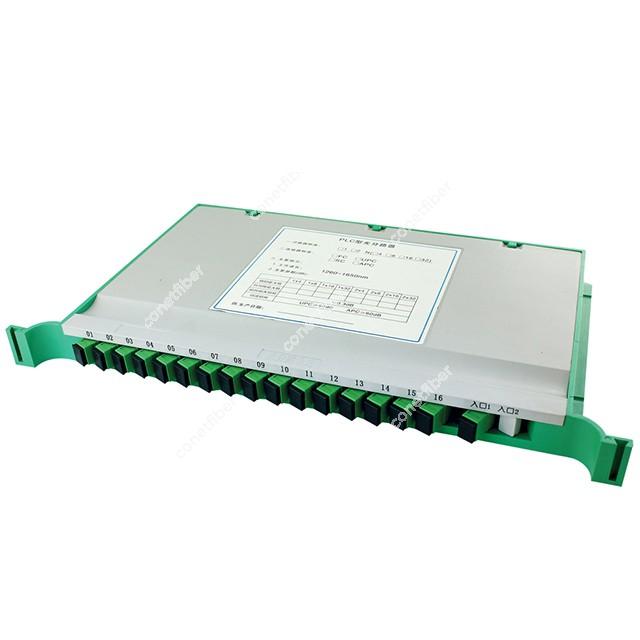

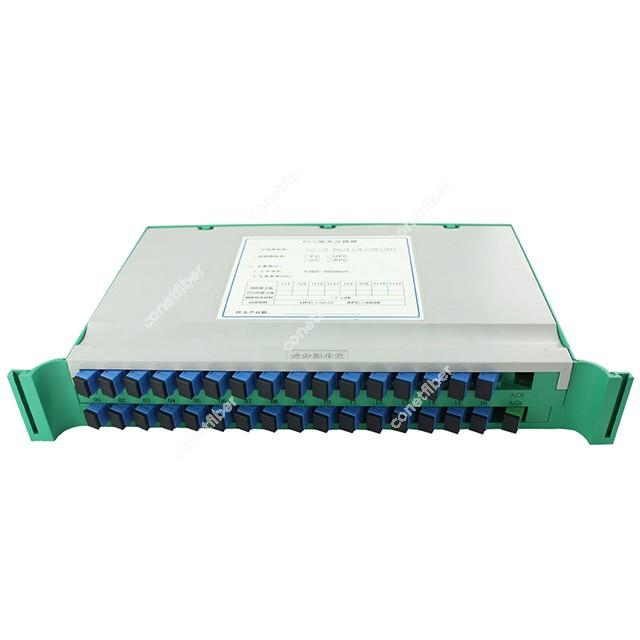

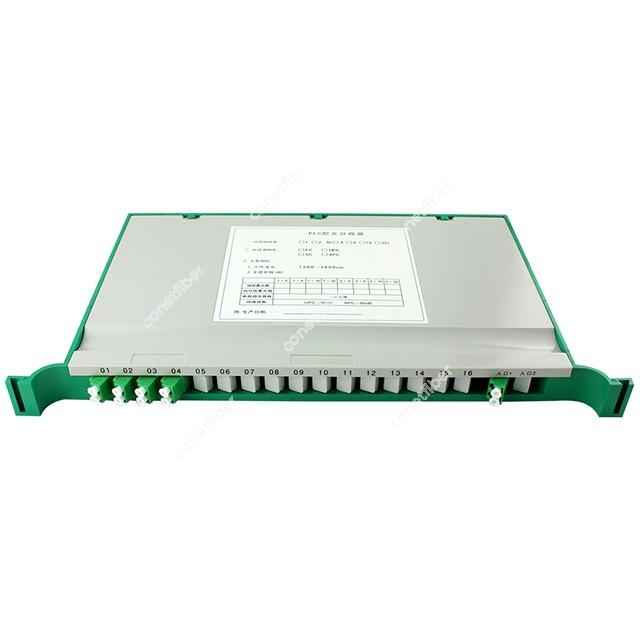

Tray type splitter is a PLC optical splitter integrated into a splice tray for direct installation in outdoor cabinet. It offers stable performance, low insertion loss, and organized fiber management, ideal for FTTH, PON, and outdoor network environments.
Tray type PLC Splitter
Technical Specs for PLC Splitter with Connector
| Item | 1×2 | 1×4 | 1×8 | 1×16 | 1×32 | 1×64 | 1×128 |
| Fiber Type | G.657.A | ||||||
| Working Wavelength | 1260nm~1650nm | ||||||
| Standard Insertion Loss (dB) | ≤4.2 | ≤7.6 | ≤10.7 | ≤14.0 | ≤17.2 | ≤20.8 | ≤24.0 |
| P- Grade Insertion Loss (dB) | ≤4.0 | ≤7.4 | ≤10.5 | ≤13.8 | ≤17.0 | ≤20.4 | ≤23.7 |
| Uniformity (dB) | ≤0.6 | ≤0.8 | ≤0.8 | ≤1.0 | ≤1.5 | ≤2.0 | ≤2.0 |
| PDL (dB) | ≤0.2 | ≤0.2 | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.4 | ≤0.5 |
| Wavelength Dependent Loss (dB) | ≤0.6 | ≤0.8 | ≤0.8 | ≤1.0 | ≤1.5 | ≤2.0 | ≤2.0 |
| Return Loss (dB) | ≥50 | ||||||
| Directivity (dB) | ≥55 | ||||||
| Operating Temp. Gange | -40 ~ +85 | ||||||
| Note: The above parameter is for Splitter with connector. If w/o connector, insertion loss will reduce by 0.2dB. | |||||||
| Item | 2x2 | 2x4 | 2x8 | 2x16 | 2x32 | 2x64 | 2x128 |
| Fiber Type | G.657.A | ||||||
| Working Wavelength | 1260nm~1650nm | ||||||
| Standard Insertion Loss (dB) | ≤4.4 | ≤8 .0 | ≤11.0 | ≤14.6 | ≤17.8 | ≤21.0 | ≤24.4 |
| P- Grade Insertion Loss (dB) | ≤4.2 | ≤7 .7 | ≤10.8 | ≤14.1 | ≤17.4 | ≤20.7 | ≤24.0 |
| Uniformity (dB) | ≤0.8 | ≤1 .0 | ≤1.2 | ≤1.5 | ≤1 .8 | ≤2.0 | ≤3.0 |
| PDL (dB) | ≤0.2 | ≤0 .2 | ≤0.3 | ≤0.3 | ≤0 .3 | ≤0.4 | ≤0.5 |
| Wavelength Dependent Loss (dB) | ≤0.8 | ≤1 .0 | ≤1.2 | ≤1.5 | ≤1 .8 | ≤2.0 | ≤3.0 |
| Return Loss (dB) | ≥50 | ||||||
| Directivity (dB) | ≥55 | ||||||
| Operating Temp. Gange | -40 ~ +85 | ||||||
| Note: The above parameter is for Splitter with connector. If w/o connector, insertion loss will reduce by 0.2dB. | |||||||
Packaging Size for Tray PLC Splitter
| Item | Type of Connector | Length * Width * Height (mm) |
| 1×8 | SC/LC | 344 * 194 * 25 |
| 1×16 | SC/LC | 344 * 194 * 25 |
| 1×32 | SC | 344 * 194 * 50 |
| 1×32 | LC | 344 * 194 * 25 |
