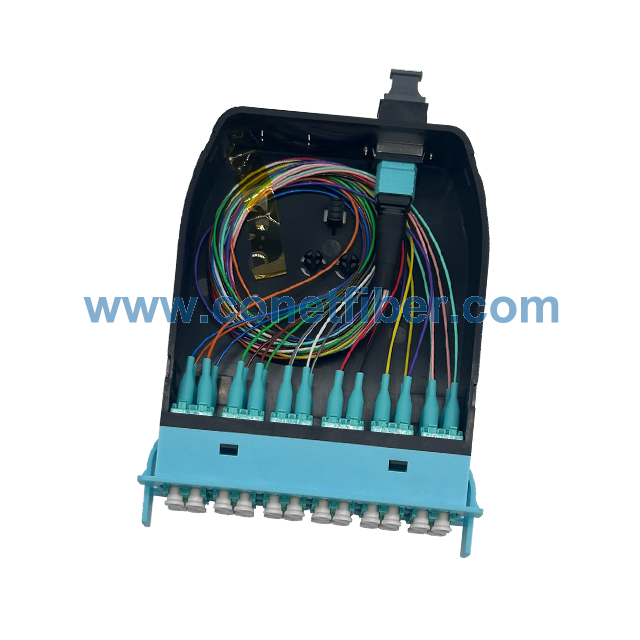

MTP®/MPO Cassette 24 core HD-07

-Max. 24 core

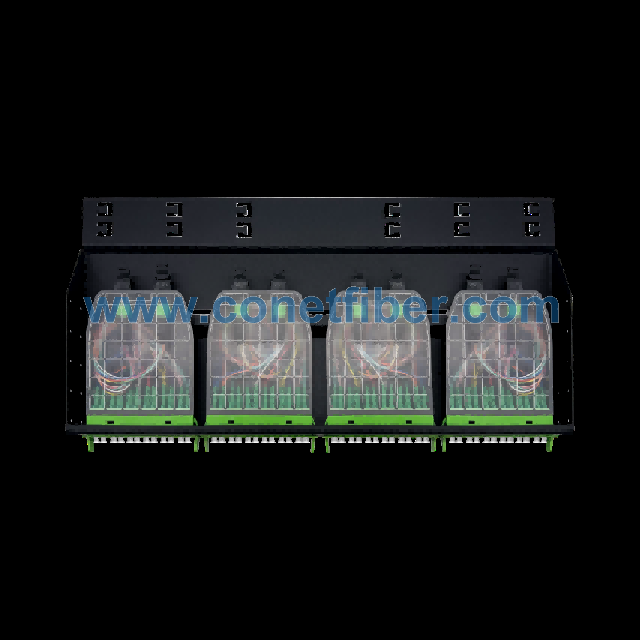

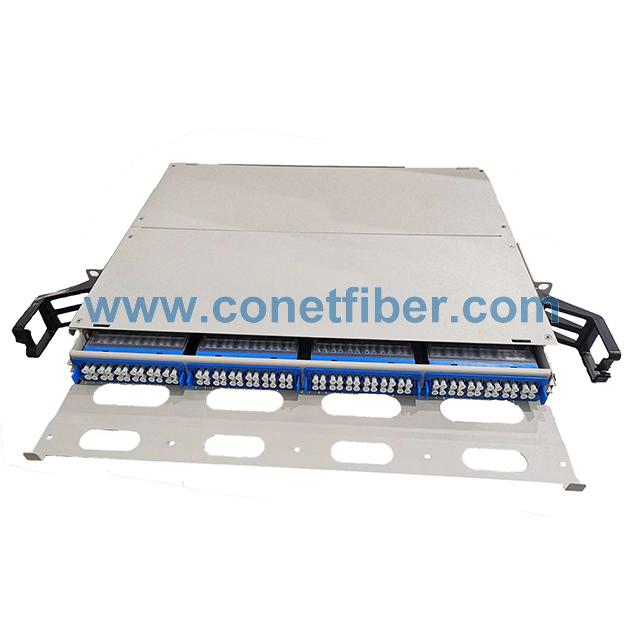

-Related patch panel: HODF-RF1U(Fixed Type), HODF-RS1U(Slidable Type)

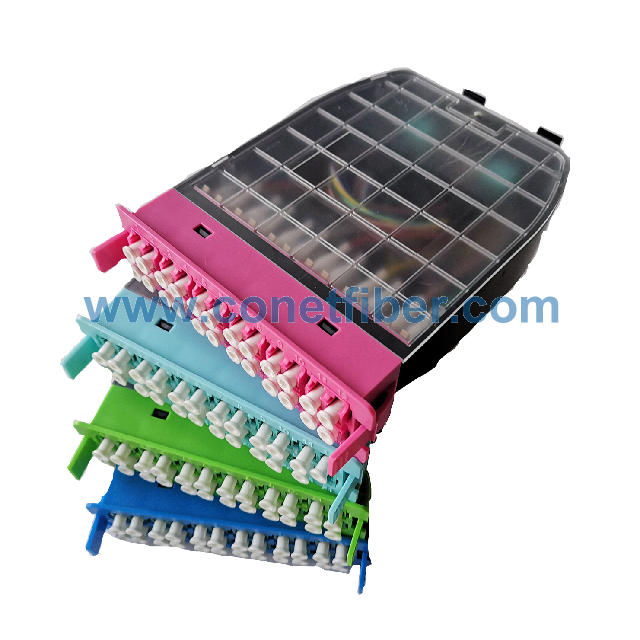

-Translucent cover, convenient for observation

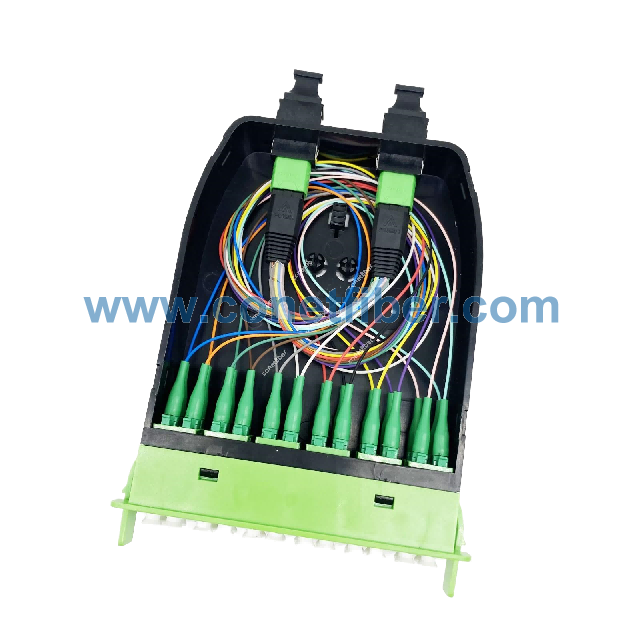

-Adapter port: 12pcs LC duplex or SC simplex without flange + 2pcs MPO/MTP® Adapter

Email: export@conetfiber.com
Share:
START ORDER
  • Technology Specs
  • Instructions Manual
  • Assembly
  • Package

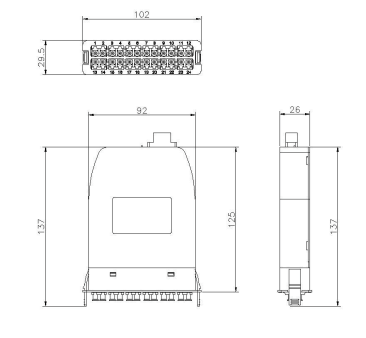

Dimension(mm)102*137*26
MaterialABS
Max. Capacity24 core
Adapter Port12pcs LC duplex or SC simplex without flange + 2pcs MPO/MTP® Adapter
Related Patch Panel
HODF-RF1U(Fixed Type), HODF-RS1U(Slidable Type)


Side A
Side B
Brand
Fiber CountGenderInsertion LossPolarity TypeConnectorCable TypeCable DiameterColorLength
MTP®
8MaleStandard LossType ALC/UPCG657A20.9mmYellow
MPO12FemaleLow LossType BLC/APCOM3-150Aqua

16Type COM3-300Violet
24OM4

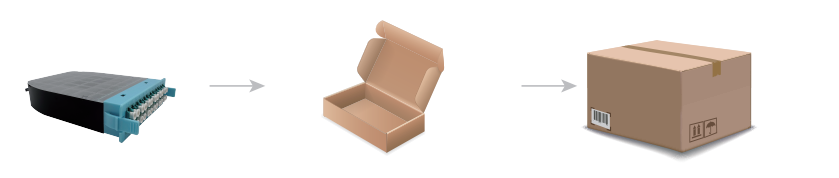

1pc per inner box; 60 pcs per master carton.



CartonSizeWeightQty per carton
Inner box16.5*11.5*3.7cm0.2kgs1pc
Master carton36*34.5*39.5cm13.5kgs60pcs

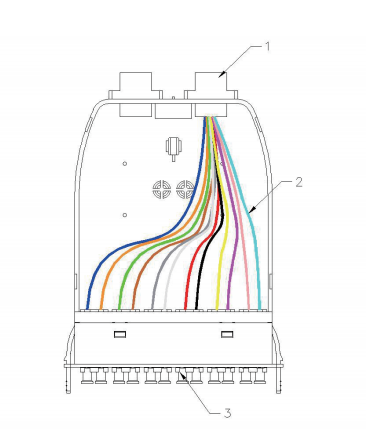

drawing.png      image.png
