-Max. 12 core
-Related patch panel: HODF-RS144-1U(Slidable Type)

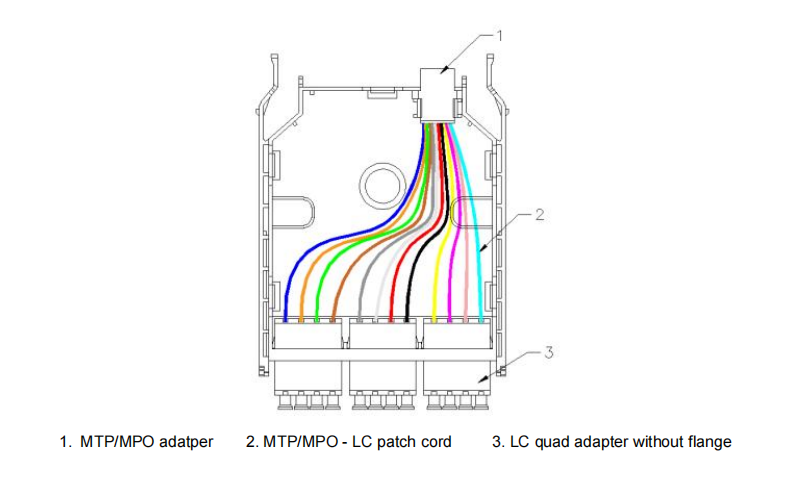

-Adapter port: 3pcs LC quad or SC duplex without flange + 1pc MPO/MTP® Adapter

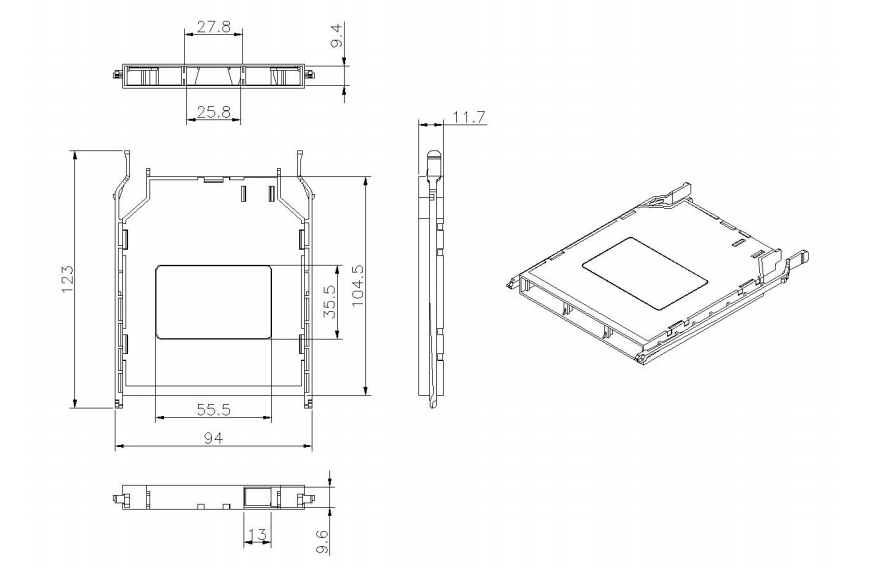

| Dimension(mm) | 94*123*11.7 |
| Material | ABS+PC |
| Max. Capacity | 12 core |
| Adapter Port | 3pcs LC quad or SC duplex without flange + 1pc MPO/MTP® Adapter |
| Related Patch Panel | HODF-RS144-1U(Slidable Type) |
| Side A | Side B | ||||||||
| Brand | Fiber Count | Gender | Insertion Loss | Polarity Type | Connector | Cable Type | Cable Diameter | Color | Length |
| MTP® | 8 | Male | Standard Loss | Type A | LC/UPC | G657A2 | 0.9mm | Yellow | |
| MPO | 12 | Female | Low Loss | Type B | LC/APC | OM3-150 | Aqua | ||
| 16 | Type C | OM3-300 | Violet | ||||||
| 24 | OM4 | ||||||||
3pc per inner box; 180 pcs per master carton.
| Carton | Size | Weight | Qty per carton |
| Inner box | 16.5*11.5*3.7cm | 0.26kgs | 3pcs |
| Master carton | 36*34.5*39.5cm | 16.3kgs | 180pcs |
