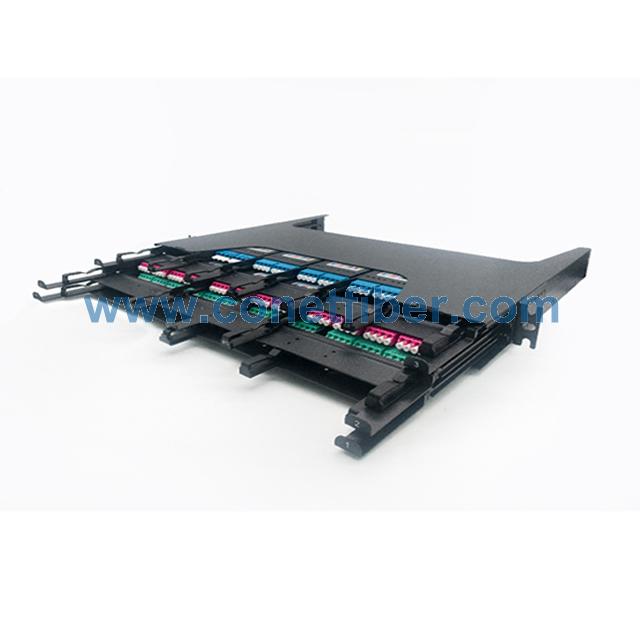

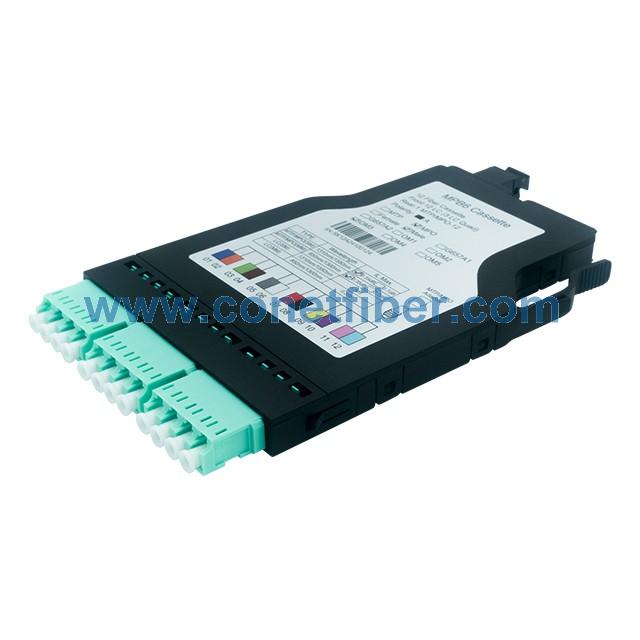

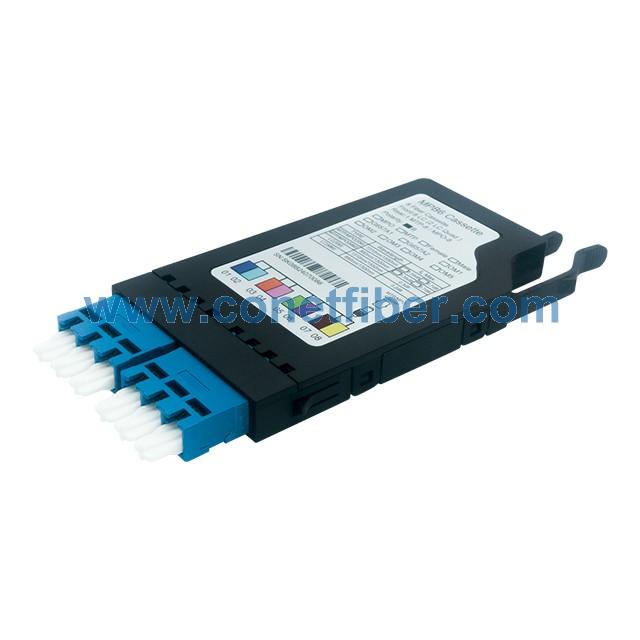

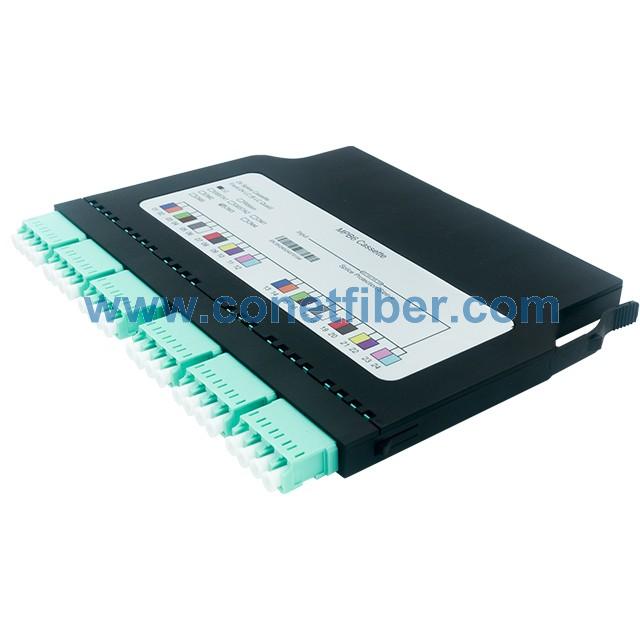

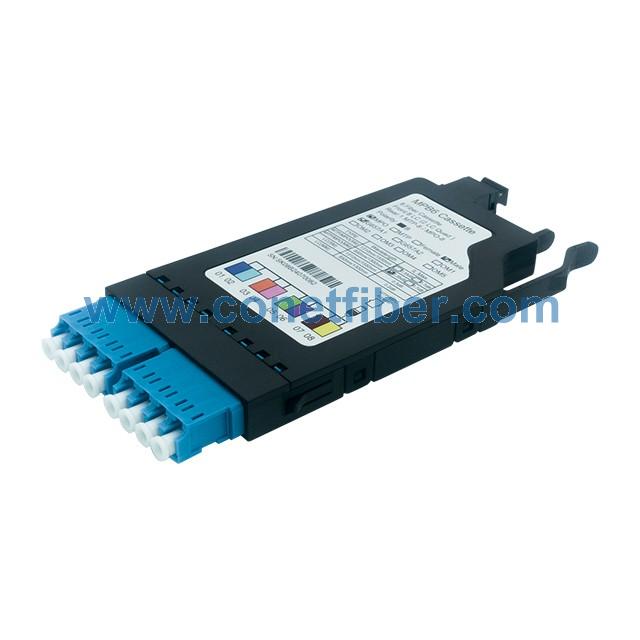

- 8/12/16/24 core LC cassette, 144 core in 1U patch panel
-12 core CS cassette, 216 core in 1U patch panel

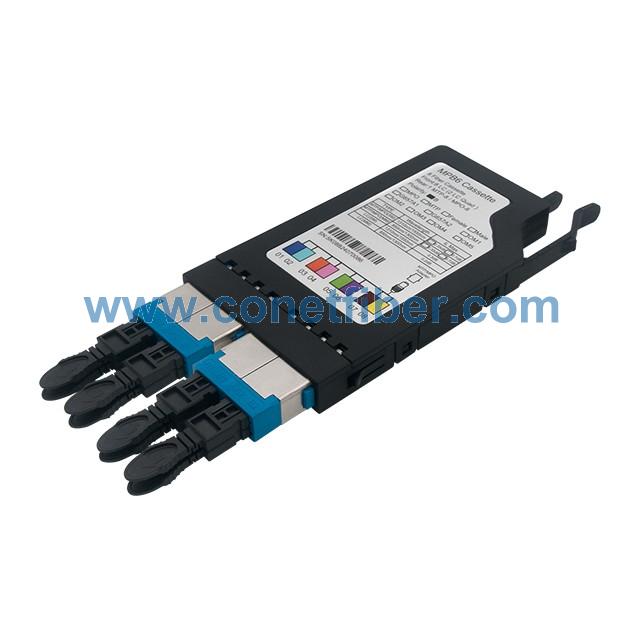

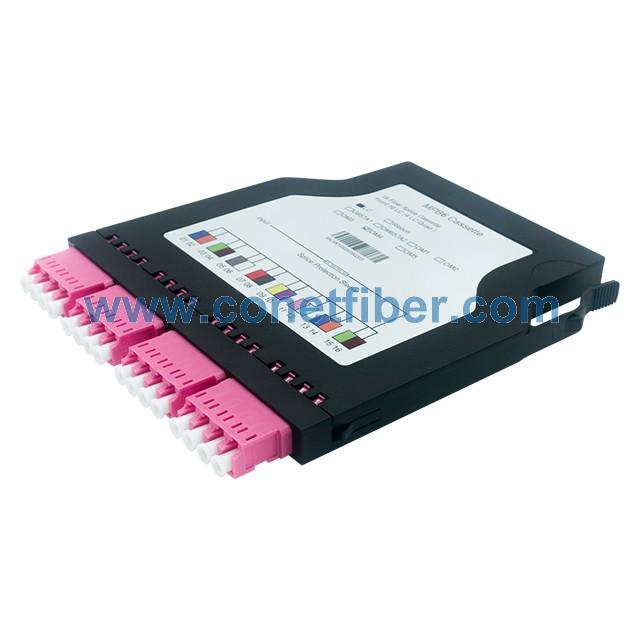

-16 core SN cassette, 288 core in 1U patch panel

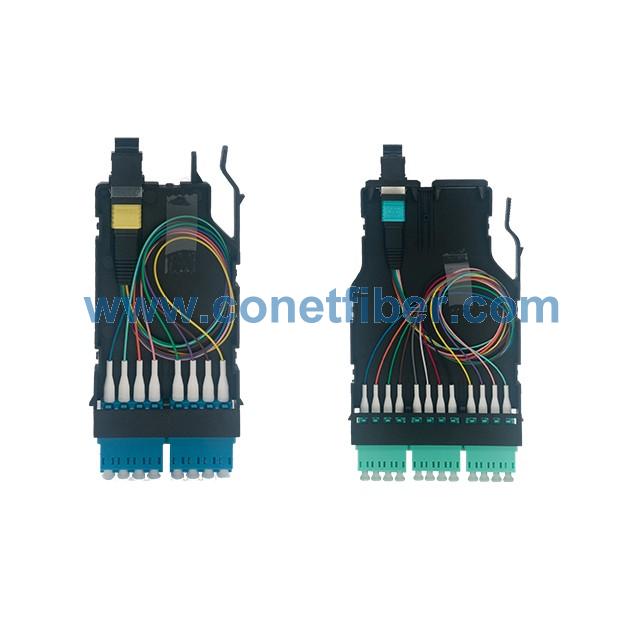

-MPO modular type, fusion splicing type

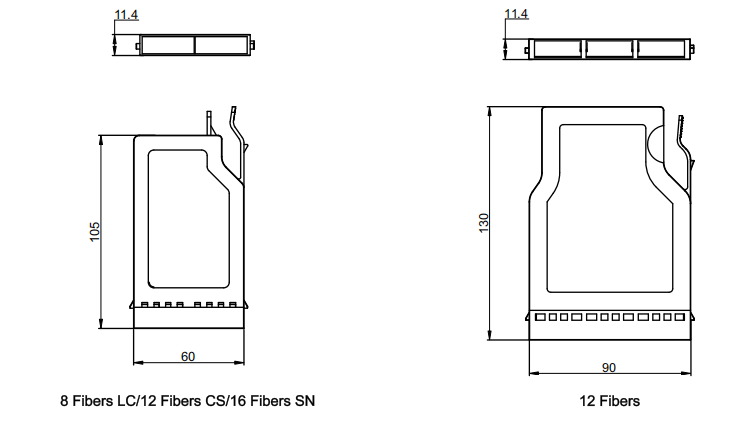

| Dimensions(mm) | 8 Fibers Cassette: 60×105×11.4 |
| 12 Fibers Cassette: 90×130×11.4 | |

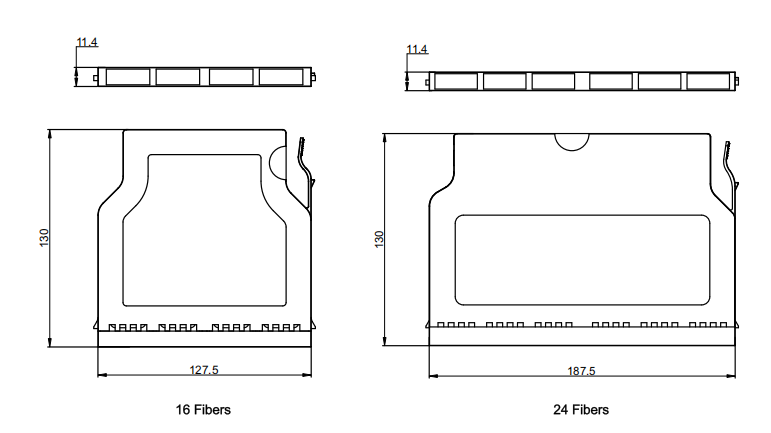

| 16 Fibers Cassette: 127.5×130×11.4 | |
| 24 Fibers Cassette: 187.5×130×11.4 |
| Fiber Count | 8 Fibers, 12 Fibers, 16 Fibers, 24 Fibers |
| Front Connector | LC/PC; LC/APC; CS/PC; CS/APC; SN/PC; SN/APC |
| Rear Connector | MPO/PC; MPO/APC; MTP®/PC; MTP®/APC |
| Fiber Mode | G657A1, G657A2; OM3, OM4, OM5 |
| Polarity Type | Type A, Type B, Type C |
