-144 core LC in 1U, 216 core CS in 1U, 288 core SN in 1U
-Related Modular: MPB6, 8/12/16/24 core cassette available
-Support pigtail splicing

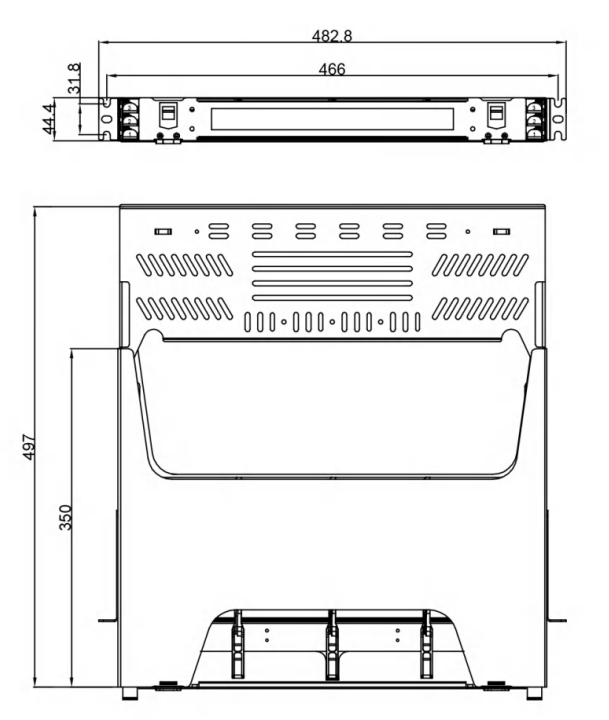

| Dimension(mm) | 482.8*350*44.4 |
| Material | Cold Rolled Steel Plate |
| Atmospheric Pressure(kPa) | 70~106 |
| Fiber count | 1U:144 core LC, 216 core CS, 288 core SN |
| Operating Temperature(℃） | -40~+75 |
Accessories
| Ties × 6PCS |
| Hose clamp × 2PCS |
| 1 Meter magic tie × 1PCS |
| M6 screws and screw nuts × 4PCS |
| Tag × 1PCS |
| Cable management bracket × 3PCS |
| M3 screws and nuts × 3PCS |
| Height | 1U, 2U, 4U |
| LC Cassette Type | 8/12/16/24F |
| LC Cassette Quantity | 18/12/9/6 |
| CS Cassette Type | 12F |
| CS Cassette Quantity | 18 |
| SN Cassette Type | 16F |
| SN Cassette Quantity | 18 |
| MPO Quantity per Cassette | 1/2 |
