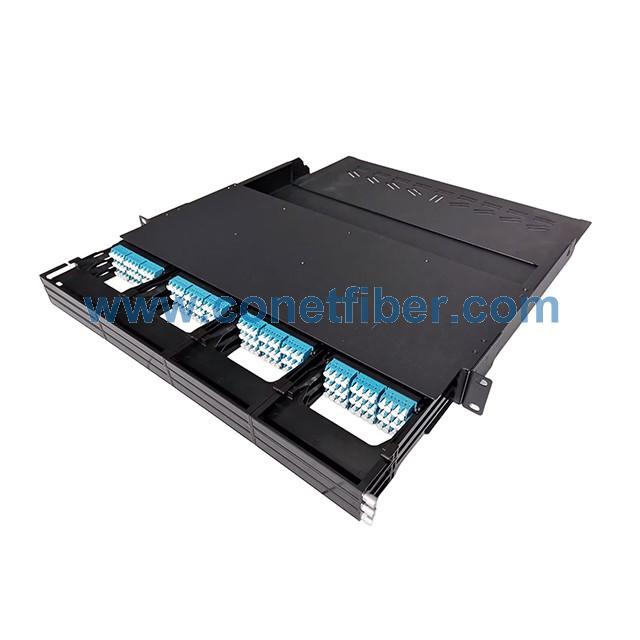

-144 core in 1U, max. 12 cassette

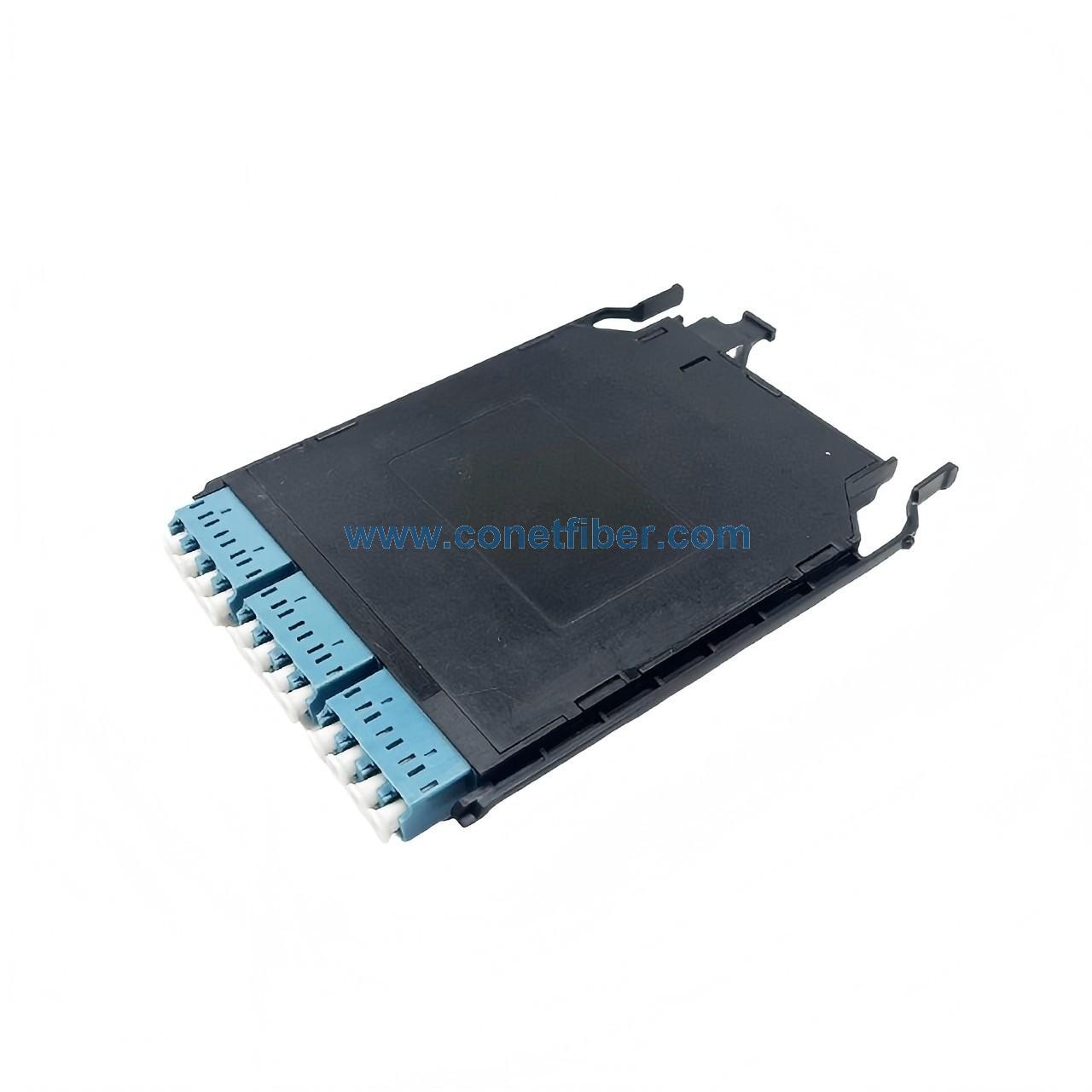

-Related Modular：HD-08 Cassette, max. 12 core
Accessories:
Item | Name | Specification | Qty |
| 1 | Mounting hanger | 67*19.5*44.3mm | 2pcs |
| 2 | Countersunk head screw | M3*6/metal/Black zinc | 12pcs |
| 3 | Nylon cable tie | 3mm*120mm/white | 12pcs |
| Enclosure Model | Cassette Model | Cassette Qty | Color |
| HODF-RS144-1U | HD-08 | 12 | Black |
1pc per inner carton; 5 pcs per master carton.
Carton | Size | Net weight | Gross weight | Packing Qty | Remark |
Inner carton | 48x41x6.5cm | 4.2kgs | 4.6kgs | 1pc | Inner carton 0.4kg |
Master carton | 50x43x36cm | 23kgs | 24.3kgs | 5pcs | Master carton 1.3kgs |
