Home >>  Data Center >> High-density Patch Panel
    • HD Patch Panel Sliding Type 96 Core HODF-RS1U
    • HD Patch Panel Sliding Type 96 Core HODF-RS1U
    • HD Patch Panel Sliding Type 96 Core HODF-RS1U
    • HD Patch Panel Sliding Type 96 Core HODF-RS1U

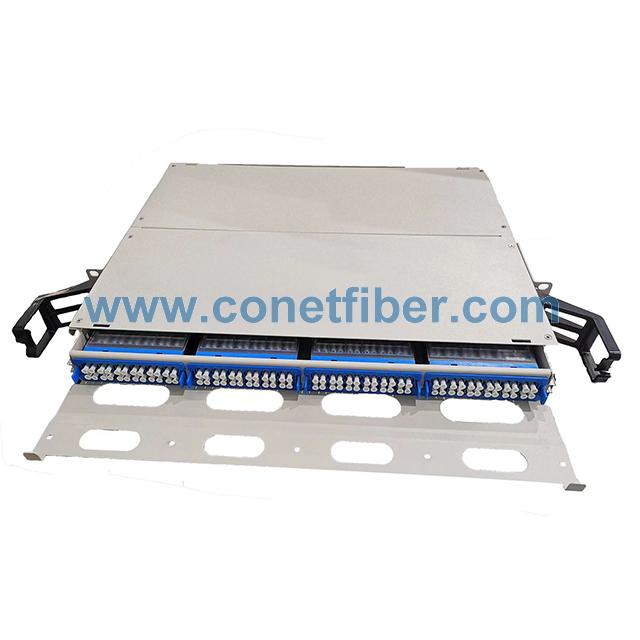

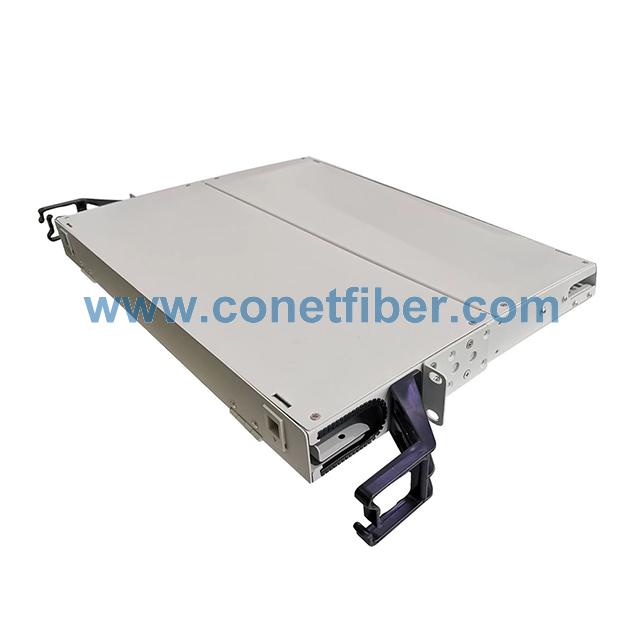

HD Patch Panel Sliding Type 96 Core HODF-RS1U

-96 core in 1U, max. 4 cassette

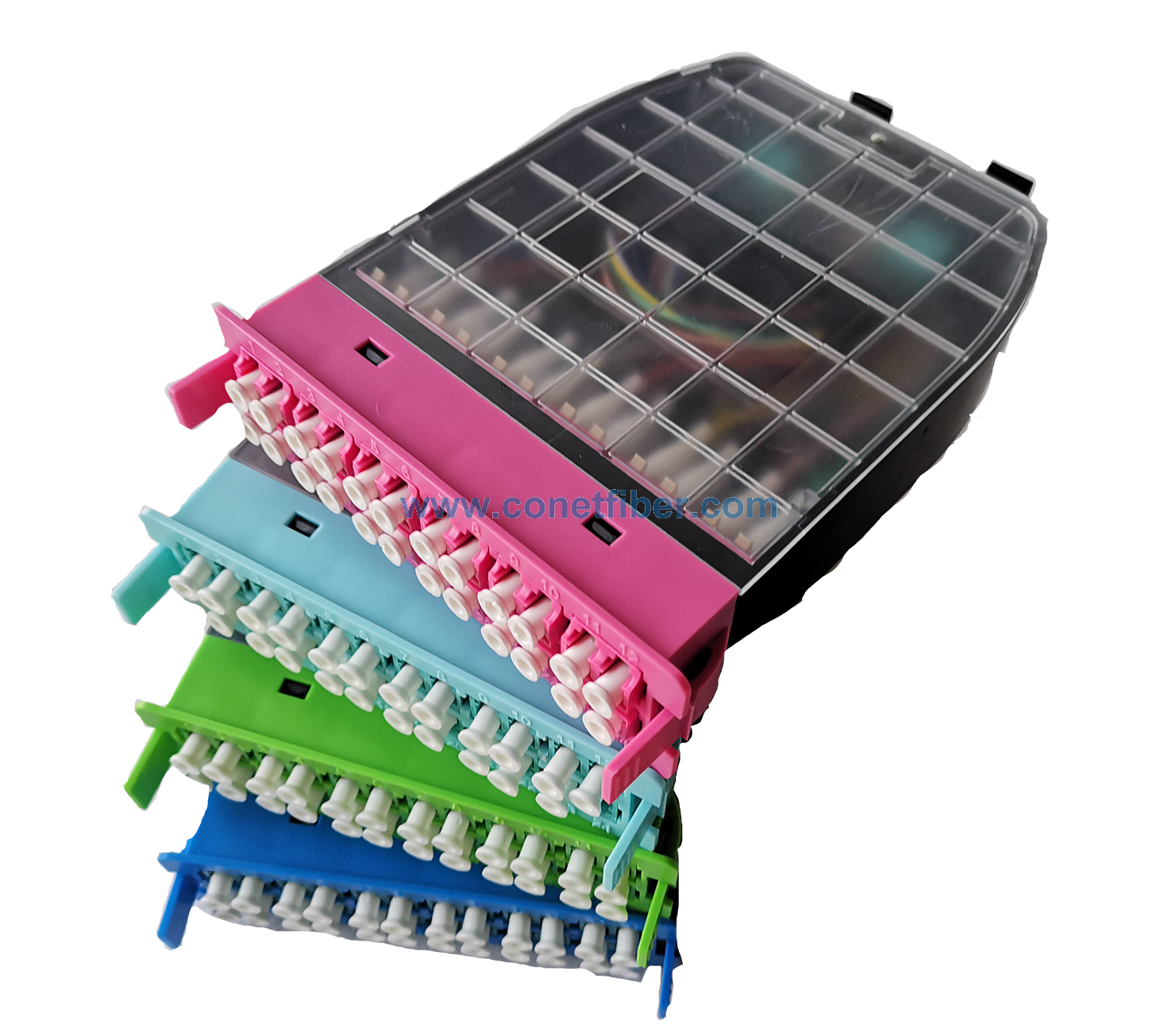

-Related Modular：HD-07 Cassette, max. 24 core

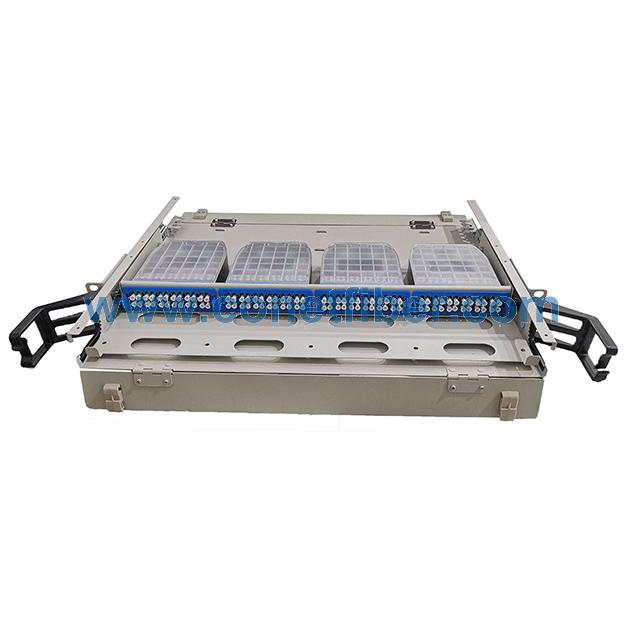

-Slidable drawer

-Mounting hanger can be adjusted forward and backward

-48 hours salt spray test


Email: export@conetfiber.com
Share:
START ORDER
  • Technology Specs
  • Instructions Manual
  • Assembly
  • Package

Item

Name

Specification

Qty

1

Mounting hanger

75*19.8*43.5mm

2pcs

2

Round head screw with washer

M4*6/metal/Bright chrome

4pcs

3

Countersunk head screw

M4*8/metal/Bright chrome

8pcs

4

Plastic cable management rings

ODF-PRS-1U/ABS/Black

2pcs

5

Nylon cable tie

3mm*120mm/white

10pcs


Enclosure ModelCassette ModelCassette QtyColor
HODF-RS1UHD-074Grey



Black



Carton

Size

Net weight

Gross weight

Packing qty

Remark

Master carton

51x42x33cm

16kgs

17.5kgs

4pcs

Master carton 1.5kgs

*Note: Weight is not included the MPO cassette HD-07. Each HD-07 is 0.126kgs.



BACK
INQUIRY NOW
Name:*
Phone:
Email:*
Message:*
Verification:

Tag: high density patch panel,96 cores patch panel,rack mount sliding enclosure
