-Precise mechanical dimensions
-Low insertion loss, high return loss
-Comply standard of IEC61754-4
-Repeatable times is no less than 50 times
-Long life spans design, more than 30 years
-ROHS compliant
Item | Unit | Parameters |
Insertion loss | dB | ≤ 0.3(1310nm & 1550nm) |
Return loss | dB | ≤ -40 |
Bare fiber strength | N | >5 |
Clad strength | N | >10 |
Tension | N | >50 |
Tensile strength (20 N) | dB | IL ≤ 0.2& RL ≤ 5 |
Mechanical | dB | IL ≤ 0.2& RL ≤ 5 |
durability(500times) | ||
Operating Temperature | ℃ | ﹣5~70 |
Storage Temperature | ℃ | ﹣40 ~ +85 |

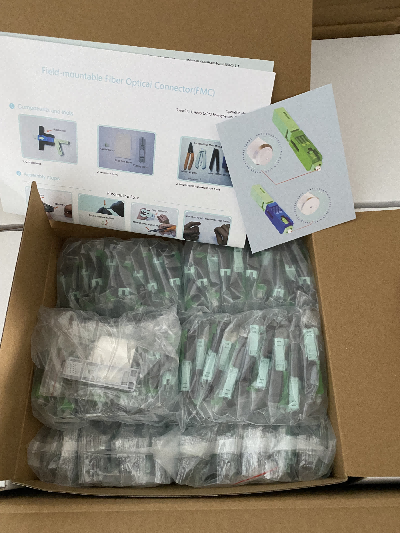

| Model | pcs/Carton | Carton Size | Gross Weight(kgs) |
| B | 1000 | 60*44*25 | 8.7 |
Model | Inside carton quantity/pcs | Inside carton size(mm) | Quantity/pcs | Outside carton size(mm) | Gross Weight(kgs) |
B | 100 | 25x22x12 | 1000 | 60x44x24 | 6.8 |
