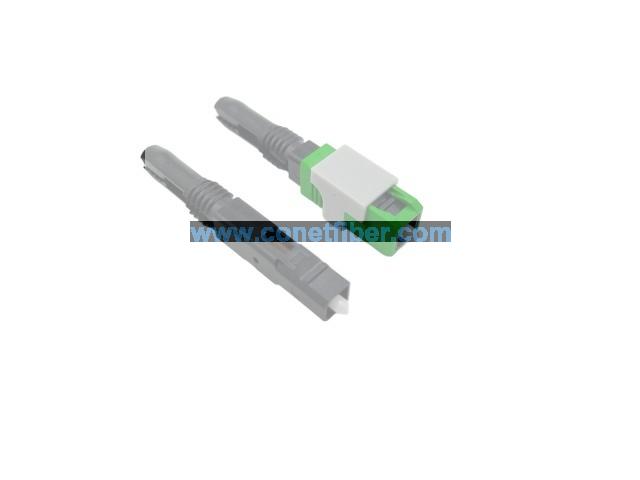

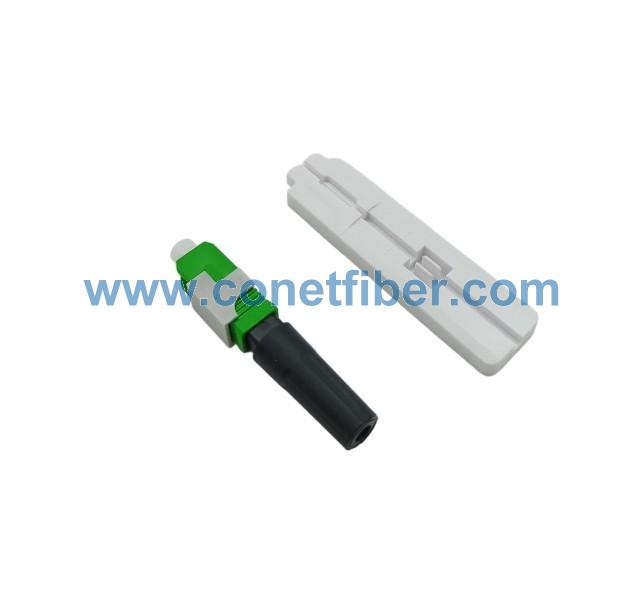

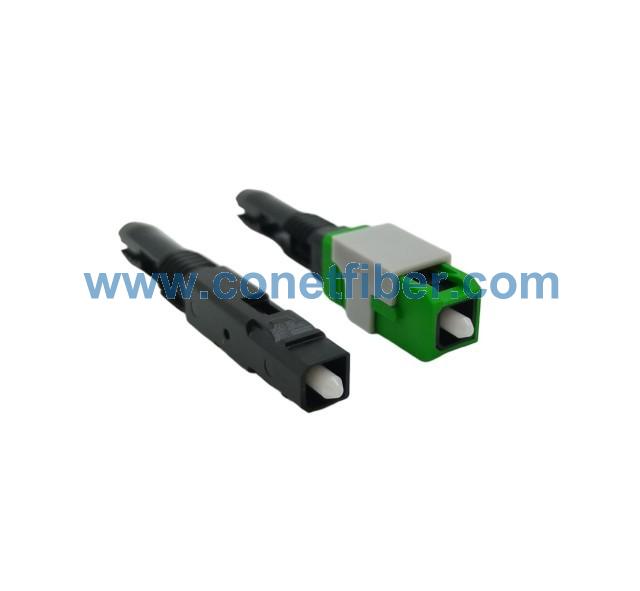

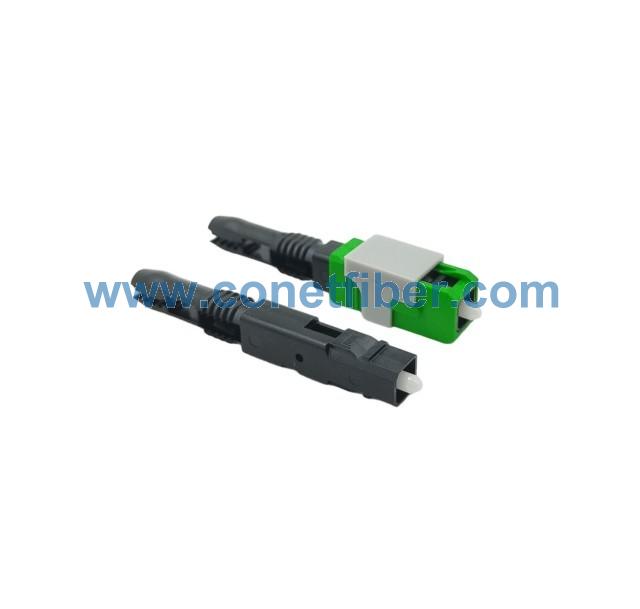

SC field assembly connector can provide quick and easy
terminations of fibers in the field. It allows the installer to
terminate and make connection in minutes at equipment
and fiber patch panels. This connector system with
features of high installation quality, high success rate and
high reliability.
Model | F |
Length | 50mm |
Ferrules | SM/UPC / SM/APC |
Inner Diameter of ferrules | 125um |
Insertion Loss | AVG≤0.3dB MAX≤0.5dB |
Return Loss | UPC≥50dB / APC≥55dB |
Working Temperature | -20~+75℃ |
| Storage Temperature | -40~+85℃ |
| Mating Times | 500Times |
Cable Diameter | 2*1.6mm/2*3.0mm /2.0*5.0mm flat drop cable, 5.0mm/3.0mm/2.0mm round cable |
