    • OTB-P035
    • OTB-P035
    • OTB-P035
    • OTB-P035
OTB-P035
*Material: ABS+UV plastic
*Max. 18pcs SC simplex adapter
*Can load 1pc 1:16 steel tube type splitter
*Cable ports: 2pcs M20 cable ports for Φ6~11mm cable entry
1 oval port support Φ6~18mm cable entry without cutting
16pcs 2*3mm drop cable output ports
*Wall mounting and pole mounting application
*Waterproof, outdoor using, IP65
Email: export@conetfiber.com
Share:
START ORDER
  • Technology Specs
  • Drawings

Model

Dimension(mm)

Material

Adapter port

Splicing capacity

Cable port

Application

OTB-P035

182.5X306.4X115.5

ABS

18 SC simplex

18 fibers

2 PG gland + 1 oval + 16 drop cable port

Outdoor wall mounted or pole mounted

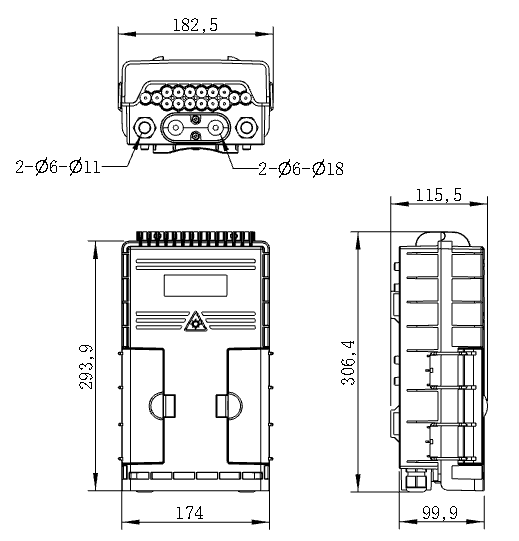

Dimension: (mm)

P035 drawings.png

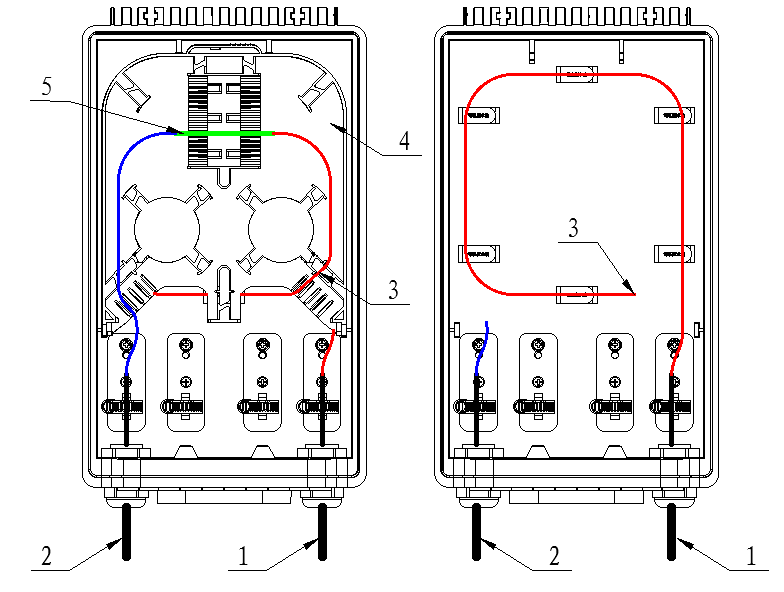

Instruction:

P035 drawing 2.png


1 - Cable entry port    2 - Cable output port     3 - Fiber optic cable

4 - Fiber optic splice tray   5 - Heat protection shrinkable sleeve
