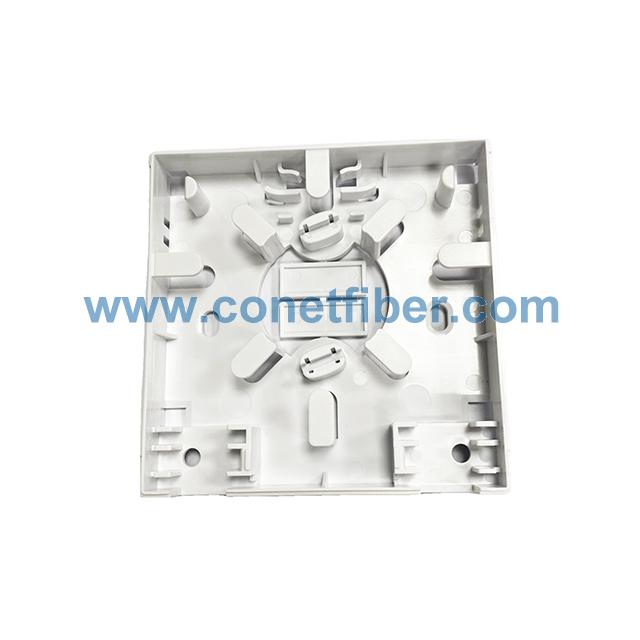

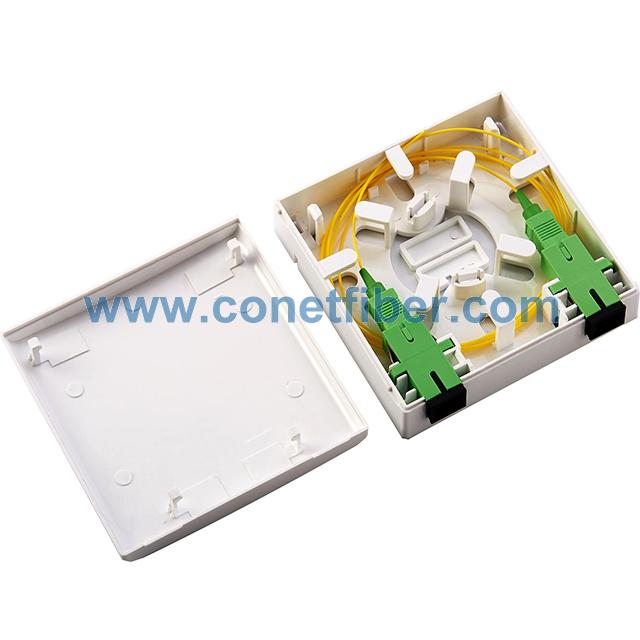

Demarcation boxes 2 core CNT-2C

*Easy to operate and has low construction intensity;

*Designed with a large arc shape to ensure that the fiber optic cable placed in it will not be damaged when subjected to external forces, affecting the quality of communication;

*For home or work area (FTTD) fiber interface;

*Connecting type: SC, LC with common model adapters;

*Using high-quality ABS material, has a certain fire resistance;

*With dustproof device to prevent dust from entering;

*Scope of application 3.0 × 2.0mm drop cable or patch cable.


Share:
  • Technology Specs
  • Package


Model No.

CNT-2C

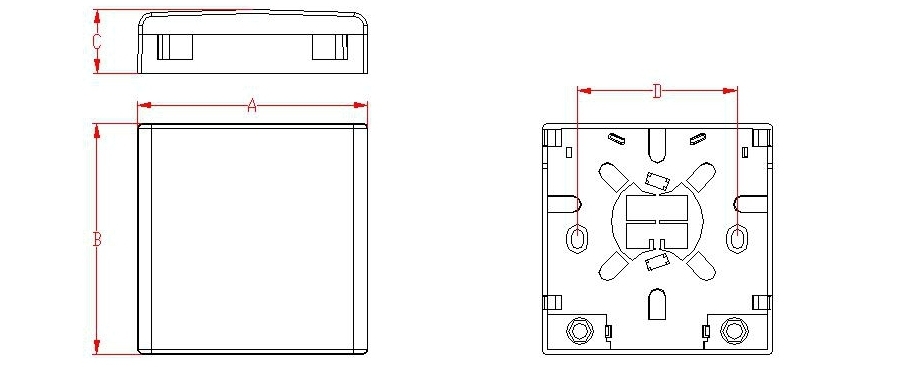

Dimension(LXWXH) mm

86x86x24

Installation

Wall mounting(Indoor/Outdoor)

Cable Entries

Normal

Max Cable Diameter

Max Input=2.0x5.0mm

Max Output= --

No. Of Adapters & Splitters

2 pcs SC SX, 2 pcs LC DX

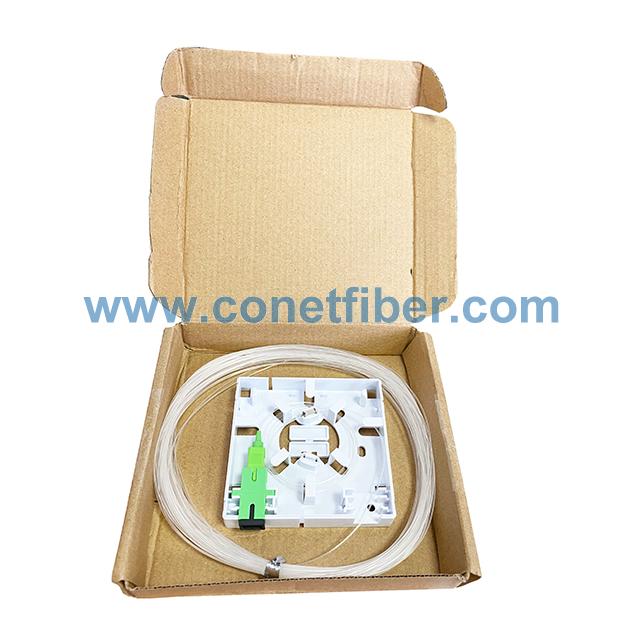

Packing Information

G.W.: 25kg

QTY.: 400 pcs/Carton

MEAS.: 52x47x41cm
