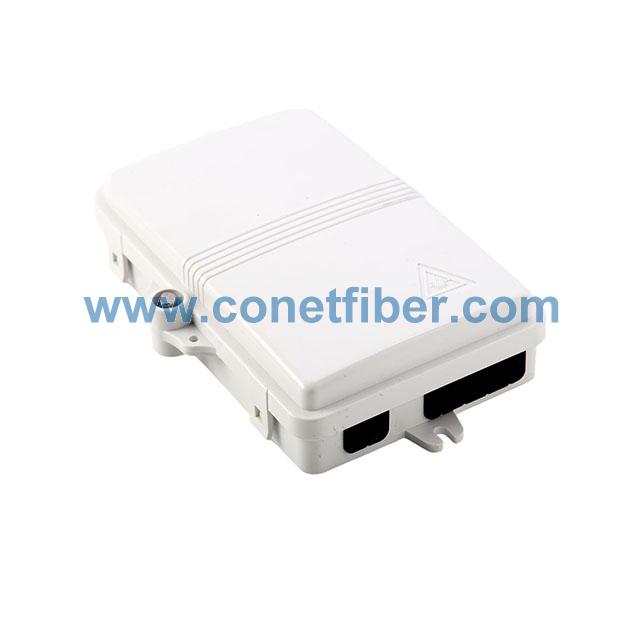

*Total enclosed structure, be in nice shape;
*Material: PC+ABS, wet-proof, water-proof, dust-proof, anti-aging, protection level up to IP65;

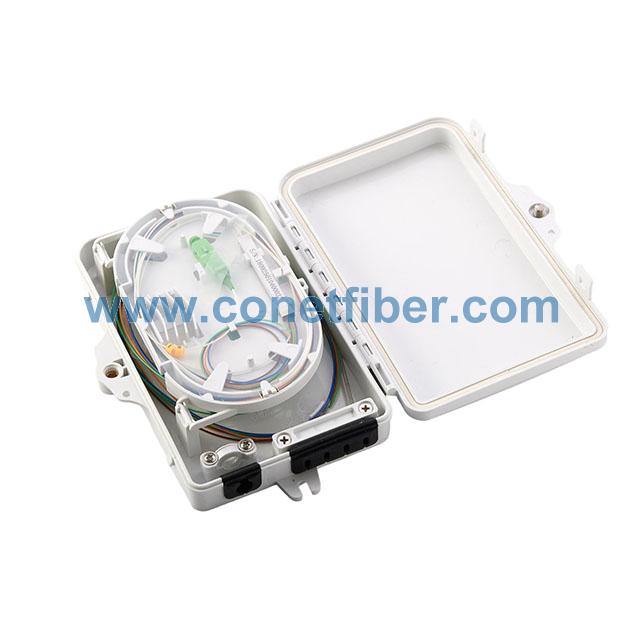

*Clamping for feeder cable and drop cable, fiber splicing, fixation, storage, distribution...etc all in one;
*Cable, pigtails, patch cords are running through own path without disturbing each other, cassette type SC adapter installation, easy maintenance;
*Distribution panel can be flipped up, feeder cable can be placed in a cup-joint way, easy for maintenance and installation.
| Item | 4A | |

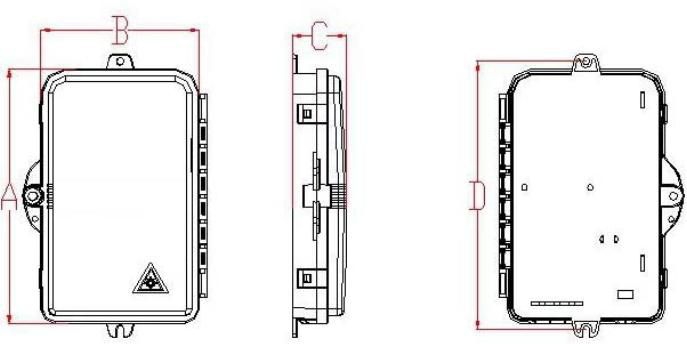

| Dimensions:A*B*C (mm) | 186*116*40 | |
| Max Capacity | SC | 4 |
| LC | 8 | |
| PLC | 8(LC) | |
| Environmental Requirement | Working temperature：-40℃～+85℃ | |
| Relative humidity：≤85%（+30℃） | ||
| Atmospheric pressure：70KPa～106Kpa | ||
| Main Technical Data | UPC return loss：≥50dB | |
| APC return loss：≥60dB | ||
| Life of insertion and extraction：＞1000 times | ||
| Thunder-proof Technical Data | The grounding device is isolated with the cabinet, isolation resistance is no less than 2x104MΩ/500V(DC); IR≥ 2x104MΩ/500V | |
| The withstand voltage between grounding device and cabinet is no less than 3000V（DC）/min, no puncture，no flash over; U≥3000V | ||
