OTB-P027

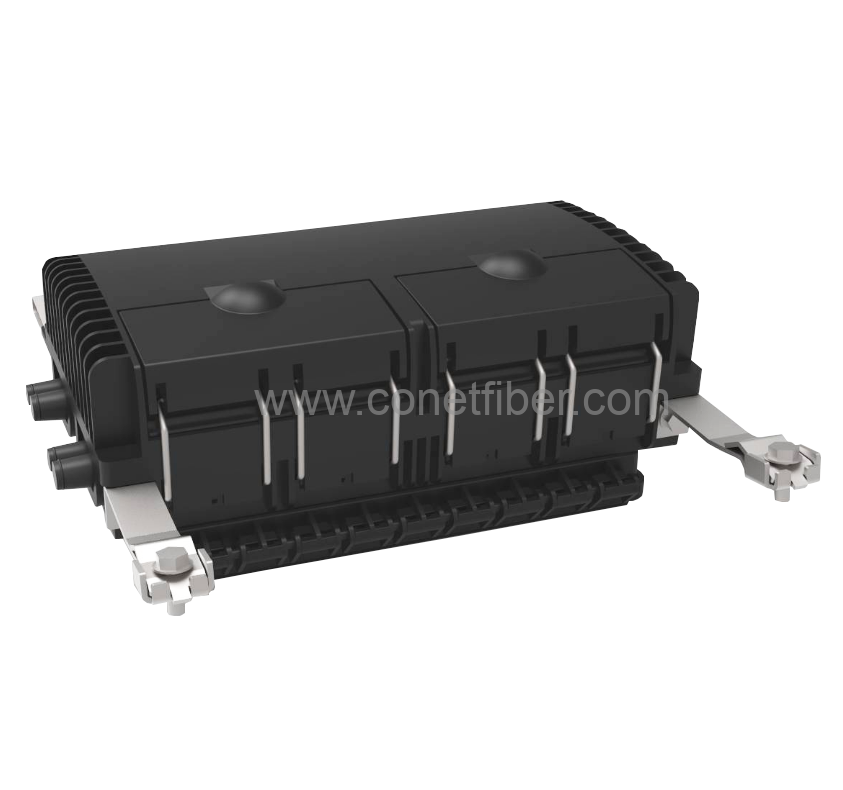

OTB-P027 is a fiber optic terminal box that has two side doors for loading fiber optic splitter & fiber optic adapter, fiber splicing and fiber distribution. It is outdoor aerial handed application.
Email: export@conetfiber.com
Share:
START ORDER
  • Technology Specs
  • Drawings

Material: ABS plastic

Max.48 fibers, 2pcs splice tray

Can load 16pcs SC simplex adapter

Can load PLC 1:8 or 1:16 steel tube type splitter

8pcs cable ports (4pcs Φ14mm, 4pcs Φ10mm) for cable entry & exit

Waterproof, outdoor aerial hanged, IP65

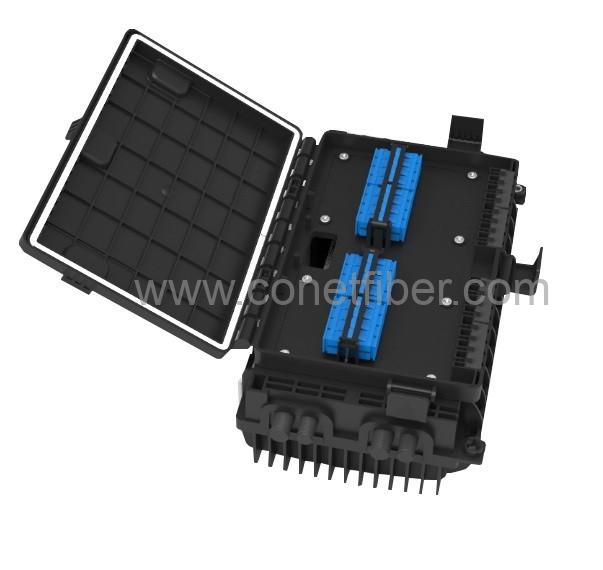

Two doors: A side door for fiber splicing, B side door for cable management.


Specification:

Model

Splicing Capacity

Dimension

Adapter port

OTB-P027

48 fibers

164.75x291x115mm

Max. 16pcs SC simplex adapters

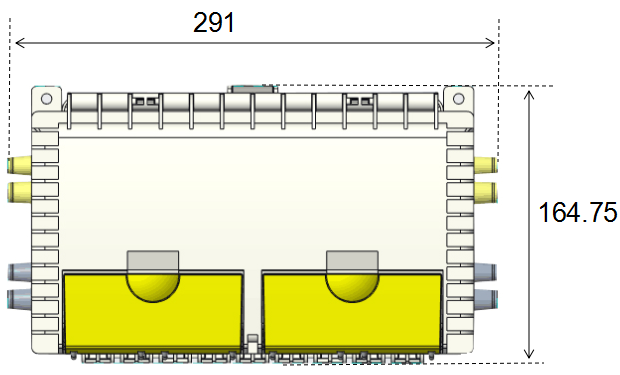

Dimension: (mm)
