    • PIW-48
    • PIW-48

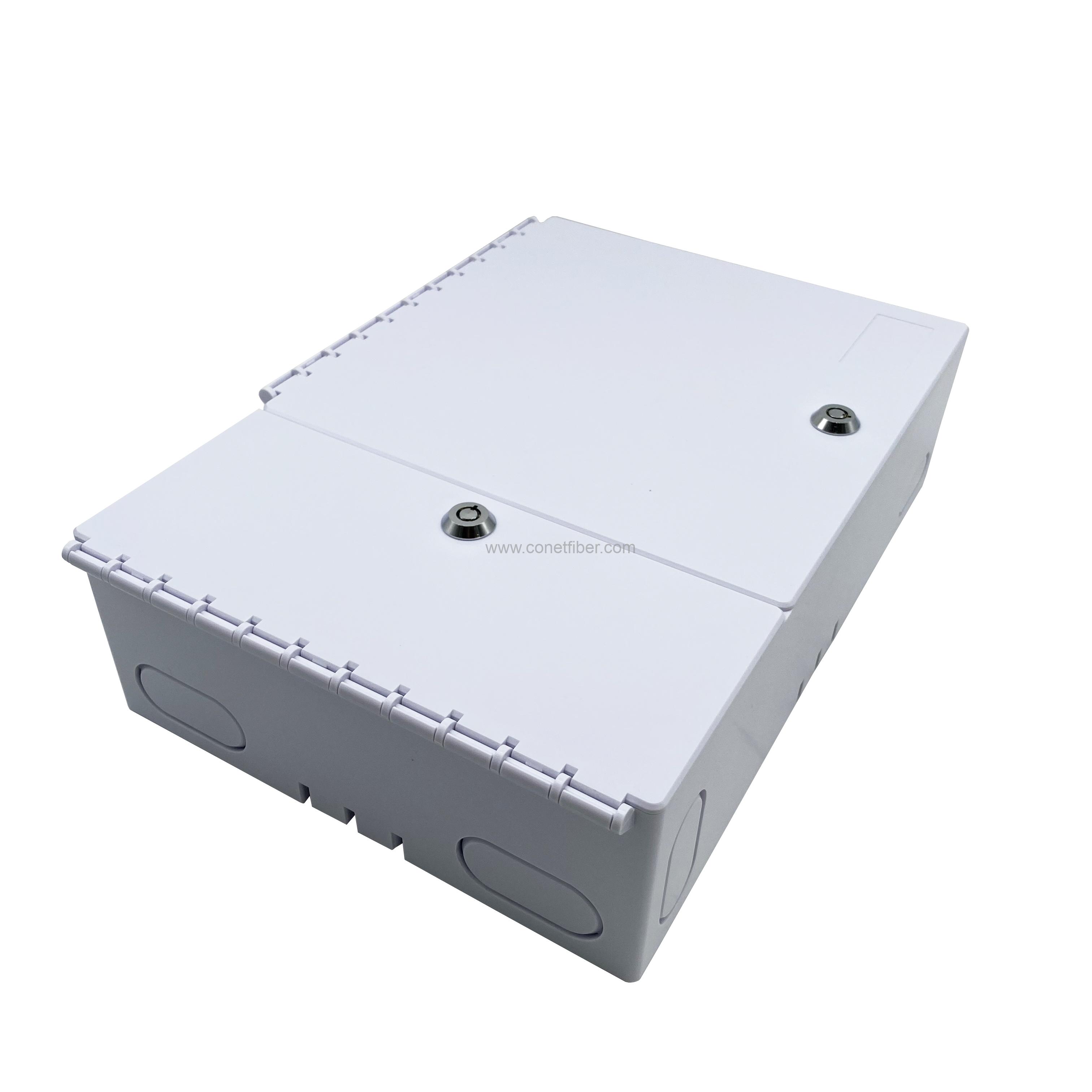

PIW-48
*Material: ABS + UV plastic
*IP standard: IP34
*Applicaiton: wall mounted
*Cable ports: support cable entry without cutting
Email: export@conetfiber.com
Share:
START ORDER
  • Technology Specs
  • Drawings

Model

Dimension(mm)

Material

Adapter port

Splicing capacity

Application

PIW-48

370*260*101.6

ABS+UV


48 SC simplex adapters

Max. 48 fibers

Outdoor wall mounted or pole mounted

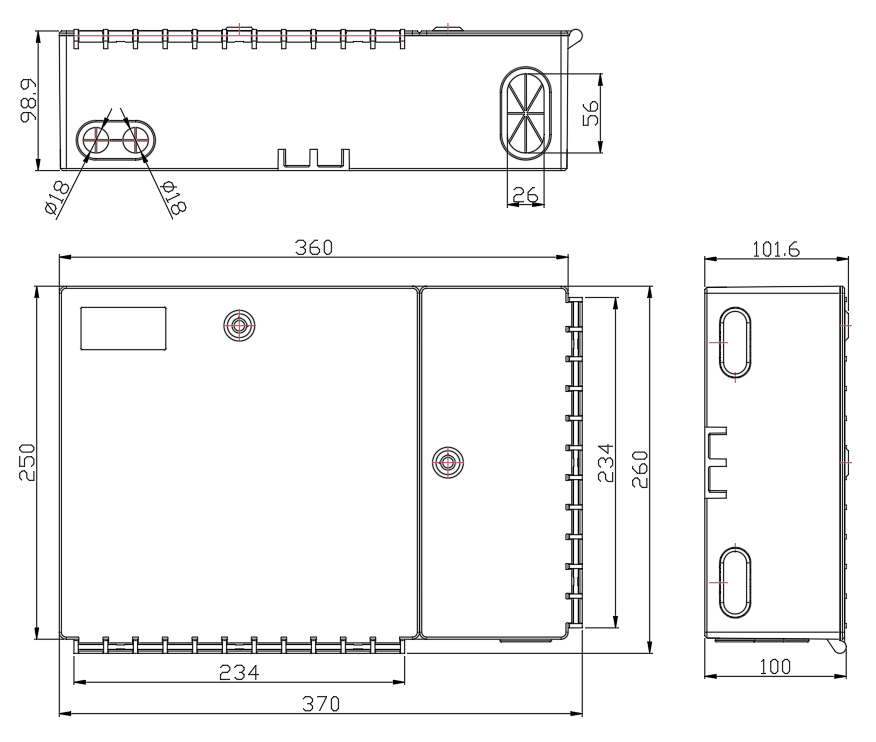

Dimension: (mm)

piw-48 drawing 1.png

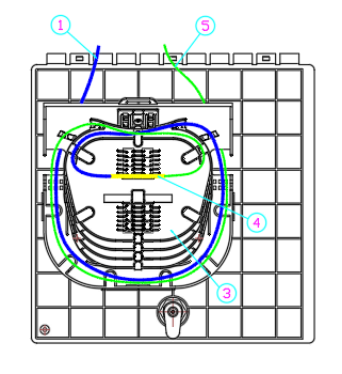

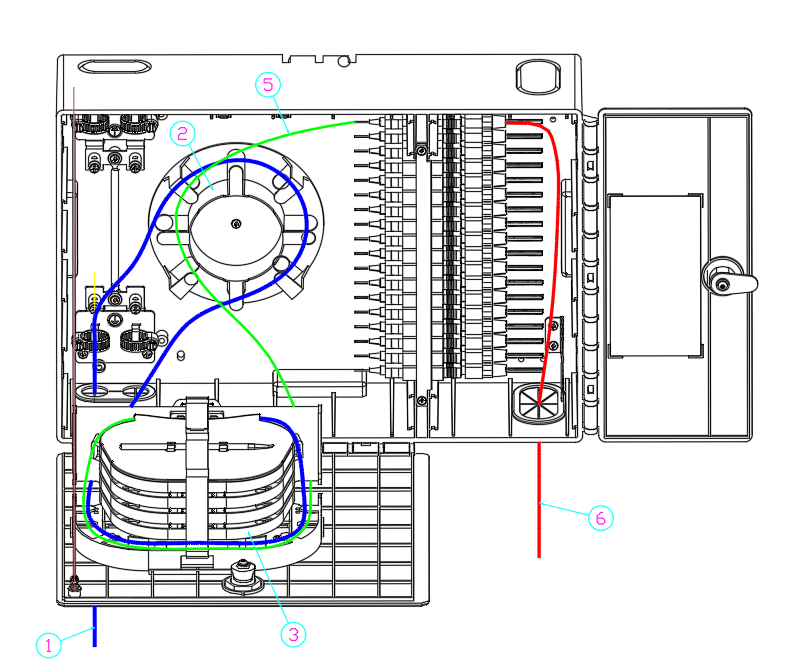

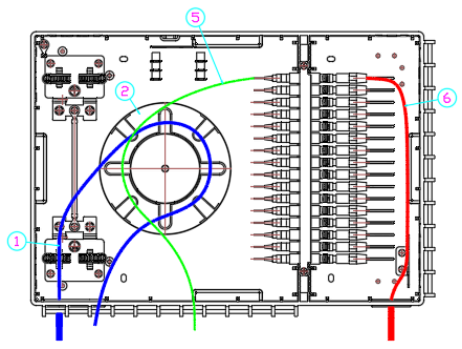

Instruction:

 piw-48 drawing 2.pngpiw-48 drawing 3.pngpiw-48 drawing 4.png


1--Input(Blue)          2--Fiber spool        3--Fiber optic splice tray

4--Heat shrinkable protection sleeve      5--Fiber optic pigtail(Green)      6--Output(Red)
