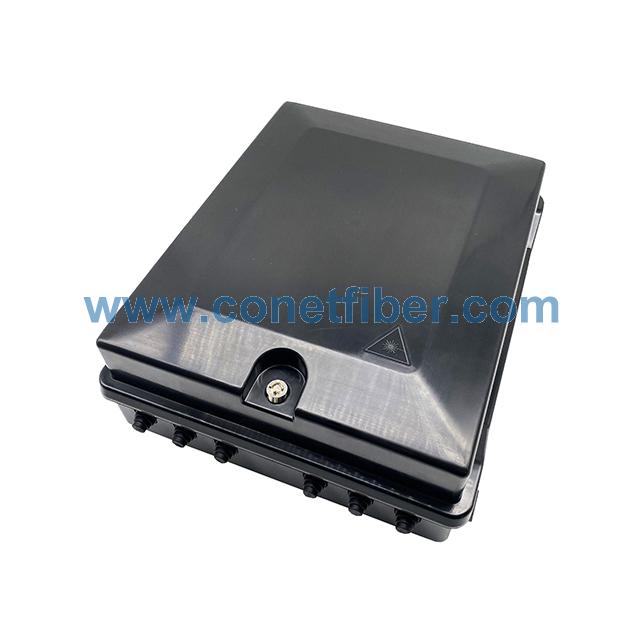

*Material: ABS plastic + UV
*Structure: Mechanical sealing structure
*IP standard: IP65
*Application: Wall mounted or pole mounted
*Cable ports: 6 ports for φ6-φ12mm cable, support cable entry without cutting.
*Adapter plate: 24 SC simplex adapter ports

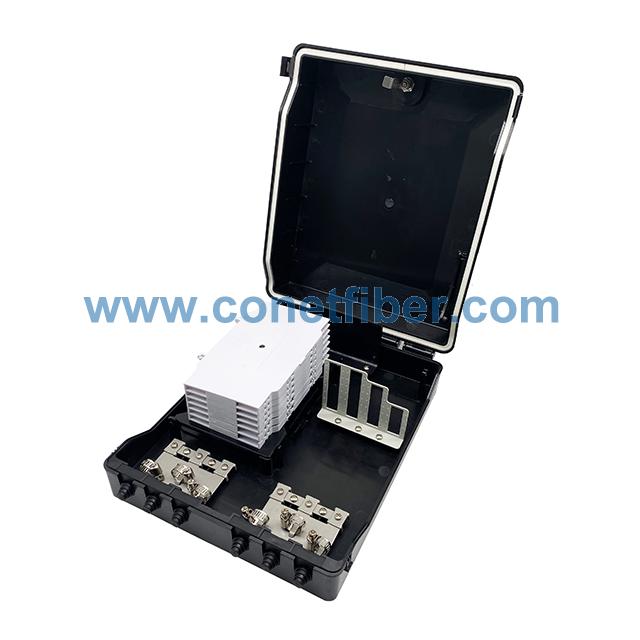

*Splice tray Qty: 6pcs splice tray, each tray max. 24 fibers
*Capacity: Max. 144 fibers
| Model | OTB-P046 |
| Dimensions(mm)(H*W*D) | 245.6*307.53*103.8mm |
| Material | ABS+UV |
| Adapter port | 24 SC simplex adapters |
| Splicing capacity | Max. 144 fibers |
| Cable port | 6 ports |
| Application | Outdoor wall mounted or pole mounted |

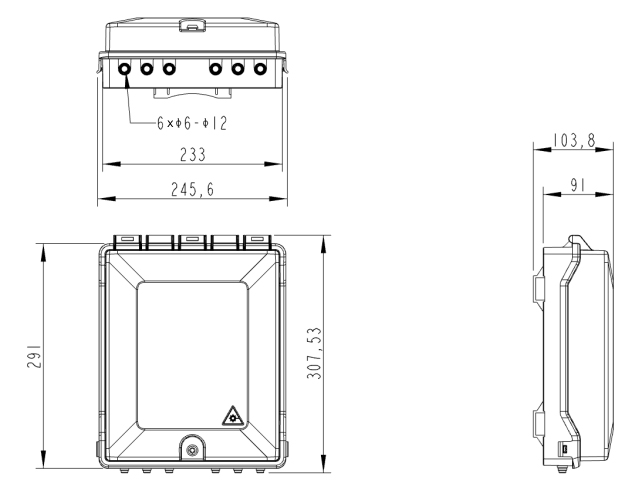

Dimension: (mm)

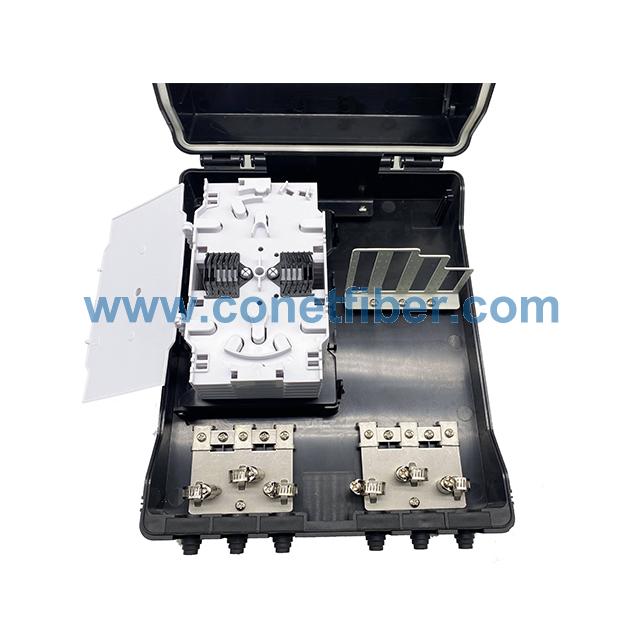

Instruction:
1--Input / Output cable 2--Stripped out fiber optic cable 3--Fiber storage tray
4--Heat shrinkable protection sleeve 5--Fiber optic splice tray 6--Fiber to the upper tray 7--Fiber to the lower tray
