*The telecommunication network, metropolitan area network, optical fiber communication system.
*Optical testing equipment/instrument.
*CATV optical fiber, optical fiber sensor.
*Optical fiber broadband access network, FTTH optical fiber.
*Optical fiber distribution frame, frame type and wall type optical fiber distribution unit.
Item | CNT-1F |

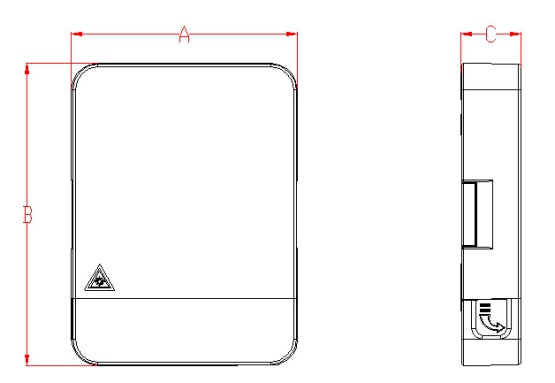

Size:A*B*C(mm) | 86*115*23mm |
Application | 3.0 x 2.0mm drop cable or indoor cable |
Fiber diameter | 125μm ( 652 & 657 ) |
Tight cladding diameter | 250μm & 900μm |
Mode of application | Single mode & duplex mode |
Tensile strength | >50 N |
End-use temperature | -40~+85℃ |
Adaptor | SC &LC |
Insertion loss | ≤0.2dB(1310nm & 1550nm) |
output | 1 |
