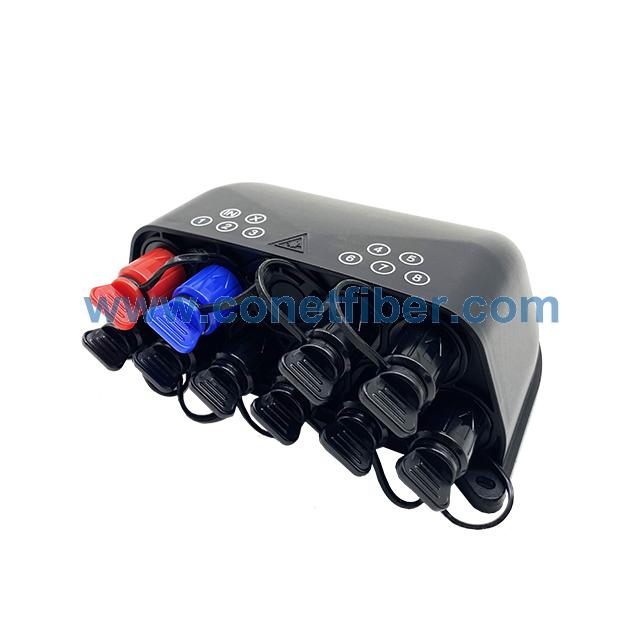

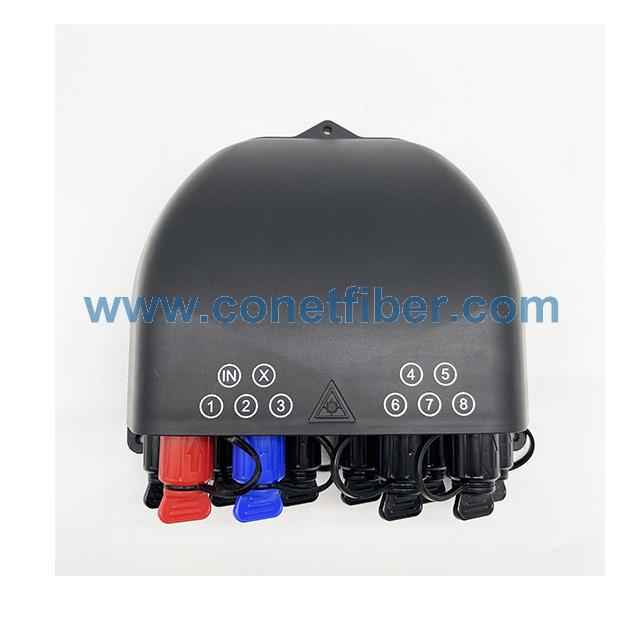

*Totally enclosed structure.
* Material: PC+ABS, moisture proof, waterproof, dust-proof, anti-aging, protection level IP68.
* Clamping, splicing, fixation, storage and distribution of feeder cable and drop cable are integrated.
*The interior is equipped with 1 * 2 FTB + 1 * 8 PLC Splitter, and the bottom cover is welded by ultrasonic welding, which is not detachable.
*The box body can be wall mounted or derrick mounted, suitable for indoor and outdoor use.
| 1. Environmental requirement | Working temperature: -40℃～+85℃ |
| Relative humidity: ≤85% (+30℃) | |
| Atmospheric pressure: 70KPa~106Kpa | |
| 2. Main technical datasheet | Insertion loss: ≤0.3dB |
| UPC return loss: ≥50dB | |
| APC return loss: ≥60dB | |
| 3. Thunder-proof technical datasheet | The insulation resistance between the grounding device and the metal parts of the box is no less than 2´104 MΩ/500V (DC); IR≥2´104 MΩ/500V. |
| The voltage resistance between the grounding device, and the boxand its metal parts is no less than 3000V (DC)/min, no puncture, no flashover; U≥3000V |
